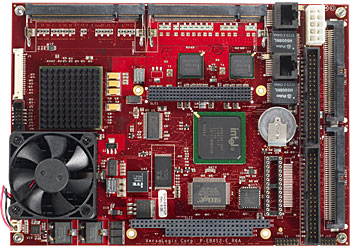

Cobra
Pentium® M Single Board Computer
|
|
EBX single board computer with Pentium® processor,
Extreme Graphics 2 chipset, dual Ethernet, CompactFlash socket,
analog and digital I/O, and PC/104-Plus expansion.
Extended temperature version
available |
|
Highlights
- EBX Form Factor
PC/104-Plus expansion. Multi-vendor support.
- High Performance
Processor
Pentium M 1.6 GHz or Celeron M 1.3 GHz options.
- Extreme Graphics
2 Video
Very high speed rendering and MPEG-2 support.
- SODIMM Memory
Sockets
Two Low profile, high capacity sockets. Up to 2 GB.
- High Speed Networking
Dual 10/100 and Gigabit Ethernet versions.
- Full SBC I/O
On-board sound, four USB 2.0 ports, four COM ports (two RS-422/485/232 configurable),
IDE interface.
- ESD Protection
Transient Voltage Suppressor (TVS) devices provide enhanced ESD protection
for keyboard, mouse, USB, Ethernet, and other external I/O lines.
- CompactFlash
Socket
Removable storage device has no moving parts.
- Analog I/O Option
Reduces need for external expansion.
- CPU Temperature
Sensor
Suports software-controlled cooling options.
- Watchdog Timer
Controls application run-away conditions.
- Digital I/O
32-line TTL I/O port reduces need for I/O expansion.
- 400 MHz Processor-side
Bus
Improved system throughput.
- Embedded BIOS
OEM embedded features. Field-upgradable. Customization available.
|
|
Description
Overview
The Cobra belongs to a new class of embedded computers offering higher processing
performance with lower power consumption, extreme graphics capability and enhanced
ruggedization. The advanced design makes it suitable for a wide range of higher-end
applications with demanding speed and graphics requirements, including gaming
devices, information kiosks telecommunications devices and advanced security
systems. In addition, its PC architecture and small footprint make it an excellent
choice for traditional embedded applications. The Cobra is available in several
versions, including models for standard and extended temperature operation.
See the Ordering Information section for more information.
The system
is built around the M-series processors, and their companion chipset, the 855GME
with integrated Extreme Graphics 2 and audio functions. The Pentium M version
Cobra incorporates a number of power saving features, including the SpeedStep
technology, and performance enhancing features such as a large 1 MB level 2
cache. The advanced graphics controller provides exceptionally sharp images,
ultra-fast rendering, and smooth sequencing to produce realistic 3-D graphics
and animation.
The board
features two SODIMM sockets, which support up to 2 GB of system RAM. The rugged,
low-profile RAM sockets provide more reliable operation in applications subject
to shock and vibration. The DDR (Double Data Rate) RAM interface provides fast
memory access and increased system throughput.
Like all
VersaLogic products, the Cobra is designed and guaranteed for long-term availability.
From application design to continuing production, it provides a cost-effective
solution with low total cost of ownership. The Cobra is manufactured to the
highest quality standards, and is backed with excellent technical and engineering
support. Customization is available in quantities as low as 100 pieces.
Details
The Cobra features an Intel Pentium M® or Celeron M® processor and 855
GME chipset to provide main processing, device support, and analog or flat panel
video output. The system is complimented by a wide array of I/O devices for
communication with peripherals, networked systems and specialized devices. On-board
I/O includes two Gigabit or 10/100 Ethernet ports, four USB 2.0 ports, RS-232
and RS/422/485 COM ports, compact flash socket, LPT port, digital I/O ports,
counter/timers, field-reprogrammable BIOS, and optional A/D converter. The PC/104-Plus
expansion site can accept a wide variety of PC/104 and PC/104-Plus
I/O modules for additional expansion when needed.
The Cobra
also provides durability and reliability through features like latching I/O
connectors, a programmable CPU temperature sensor, voltage-sensing reset circuit,
watchdog timer, and long-life industrial battery. TVS (Transient Voltage Suppression)
devices on the primary system I/O connections help protect the system from ESD
(electrostatic discharge) damage. A self-resetting fuse on the 5V power to the
keyboard, mouse and USB ports protects the board from cable or connector shorts.
|
|
Ordering Information
VL-EBX-12x
… Cobra Pentium M-series
single board computer
VL-EBX-12xu … Cobra
SBC with pass-through connectors
x = Configuration
/ version. Specify one of the following:
VL-EBX-12p…
Intel Pentium M 1.8 GHz w/fan, two 10/100 Ethernet ports, RoHS
VL-EBX-12r…
Intel Pentium M 1.8 GHz w/fan, two Gigabit Ethernet ports, RoHS
VL-EBX-12t… Intel
Pentium M 1.0 GHz w/fan, two 10/100 Ethernet ports, extended temperature, RoHS
VL-EBX-12v… Intel
ULV Celeron M 1.0 GHz, fanless, two 10/100 Ethernet ports, RoHS
Accessories |
VL-CBL-0501
… |
USB channel
3 & 4 transition cable** |
VL-CBL-1007*
… |
Video adapter cable |
VL-CBL-2022*
… |
Power adapter cable |
VL-CBL-2501
… |
LPT / Floppy interface
cable |
VL-CBL-4003*
… |
Hard drive connector
cable |
VL-CBL-8003*
… |
Primary breakout cable |
VL-CBL-8004*
… |
Secondary breakout
cable |
VL-CDD-IDE-1 … |
CD-RW, DVD-ROM drive |
VL-CKT-COBRA
… |
Development cable kit |
VL-ENCL-5
… |
Development enclosure |
VL-FDD-144
… |
3.5” Floppy drive |
VL-HDD35-xx
… |
3.5” IDE hard disk
drive |
VL-HDW-101*
… |
Metric standoff package |
VL-HDW-201
… |
PC/104 extractor tool |
VL-HDW-301
… |
Analog input chip,
0 to +60° C |
VL-MM5D-xxx
… |
DDR RAM module |
VL-PS200-ATX
… |
Development power supply |
*
Included in VL-CKT-COBRA cable kit
** Connects to VL-CBL-8003 paddle board |
|
|
Specifications
[Data
represent standard operation at 25°C with 5.0V supply unless otherwise noted.
Specifications are subject to change without notice.]
Accessories |
VL-CBL-0501
… |
USB channel
3 & 4 transition cable** |
VL-CBL-1007*
… |
Video adapter cable |
VL-CBL-2022*
… |
Power adapter cable |
VL-CBL-2501
… |
LPT / Floppy interface
cable |
VL-CBL-4003*
… |
Hard drive connector
cable |
VL-CBL-8003*
… |
Primary breakout cable |
VL-CBL-8004*
… |
Secondary breakout
cable |
VL-CDD-IDE-1 … |
CD-RW, DVD-ROM drive |
VL-CKT-COBRA
… |
Development cable kit |
VL-ENCL-5
… |
Development enclosure |
VL-FDD-144
… |
3.5” Floppy drive |
VL-HDD35-xx
… |
3.5” IDE hard disk
drive |
VL-HDW-101*
… |
Metric standoff package |
VL-HDW-201
… |
PC/104 extractor tool |
VL-HDW-301
… |
Analog input chip,
0 to +60° C |
VL-MM5D-xxx
… |
DDR RAM module |
VL-PS200-ATX
… |
Development power supply |
*
Included in VL-CKT-COBRA cable kit
** Connects to VL-CBL-8003 paddle board |
'specifications
General |
Processor |
Intel Pentium® M or
Celeron® M series |
Chipset |
Intel 855GME |
Power Requirements |
+5.0V only with 128
MB RAM, keyboard, mouse, running Windows XP:
12-25W‡ EBX-12b,d
8-12W‡ EBX-12e
25W EBX-12g |
System Reset |
Watchdog timeout
VCC sensing (resets below 4.70V typ.) |
Bus Speed |
CPU PSB: 400 MHz
PCI, PC/104-Plus: 33 MHz, 2.2 Compliant
PC/104: 8 MHz |
Compatibility |
EBX: Mechanically
Compatible.
PC/104-Plus expansion: Footprint compatible, 3.3V signaling, PCI
2.2 compatible. |
Mechanical |
Board Size |
146.05mm x 203.2mm
(5.75” x 8” ) |
Storage Temperature |
– 40° C to +85° C |
Operating
Temperature |
0° C to +60° C
EBX-12b,d,g
-40 ° C to
+85° C EBX-12e |
Humidity |
Less than 95%, noncondensing |
Memory |
DRAM Interface |
Two 200-pin SODIMM
sockets. Up to 1 GB of 266 MHz PC2100 or 333 MHz PC2700 compatible DDR RAM
each. |
Flash Interface |
CompactFlash socket.
Type I or II supported. |
Video |
Video Interface |
Extreme Graphics 2
chip set. LVDS and analog interface. Uses up to 64 MB system memory. Resolutions
up to 2048x1536. Full motion video, MPEG-2 decoder, 3-D, edge smoothing
and ultra-fast rendering. |
Network
Interface |
Ethernet |
Dual ports based on
Intel 82551ER or 82541ER. Autodetect 10BaseT / 100BaseTX / 1000BaseT ports
available.* |
Network Boot Option |
Argon Managed Boot
Agent. Supports PXE, RPL, NetWare, TCP/IP (DHCP, BOOTP) remote boot protocols. |
Device
I/O |
USB |
Four ports USB 2.0
and 1.1 protocol.* |
IDE Interface |
Dual channel PCI-based.
Up to 4 IDE devices (Including CompactFlash). ATA 100 compatible. |
COM 1 & 2 Interface |
RS 232, 16C550 compatible.
115K baud max.* |
COM 3 & 4 Interface |
RS 232/422/485,16C550
compatible, 460K baud max. |
LPT Interface |
Bi-directional/EPP/ECP/floppy
mode compatible.* |
Digital I/O |
32 line TTL I/O. 2
lines IRQ routable. |
Counter/Timers |
Two 8254 style counter/timers. |
Analog I/O (optional) |
8 channel 12 bit 6
µs A/D with interrupt capability. |
Audio |
AC ‘97 PCI compatible.
Stereo line in. Stereo line out. |
AT Peripherals |
Keyboard and PS/2
mouse port. * |
Software |
Operating Systems |
Compatible with most
X86 operating systems, including Win95/98/NT/CE/XP, QNX, VxWorks, and Linux. |
BIOS |
General Software’s
Embedded BIOS with OEM Enhancements. Field reprogrammable. Support for USB
keyboard/mouse and USB boot. |
*TVS
protected port (Enhanced ESD protection).
‡ Depends on CPU speed set in CMOS setup options.
Data represent standard
operation at 25° C with 5.0V supply unless otherwise noted. Specifications
are subject to change without notice. Intel, Pentium and Celeron are Intel
Corporation trademarks. PC/104 is a trademark of the PC/104 Consortium.Specifications
are subject to change without notice. |
|
|
|
