- Tamanho Sub-Compacto |
|

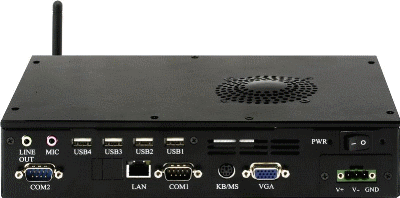

TKS-G50
|
|
Chassis Kit for
GENE-8310/9310 |
Features
- One 6cm System Cooling Fan
- VGA/ DVI (Optional)/ TV-out (Optional)
- 2.5" Hard Disk Drive and CompactFlash™
- 802.11b/g WiFi (Optional)
- COM x 2, USB x 4, 8-bit Digital I/O (Optional)
- Built-in AC-in or DC-in Power Supply
- Desktop or Wallmount (optional)
|
Specifications
System
- CPU Board Support: GENE-9310 /
GENE-8310
- Display:
VGA: D-Sub 15 x 1 TV-out: S-Video x 1 (optional) DVI: DVI-D x 1 (optional)
- Storage:
SSD: Type II CompactFlash™ Slot x 1 HDD: 2.5" Hard Disk Drive Bay x 1
- LAN:
Ethernet: 10/100Base-TX or Gigabit Ethernet, RJ-45 x 1 Wireless: 802.11b/g WiFi Kit (optional)
- System I/O:
PS/2 Port: PS/2 x 1 for keyboard and mouse through Y-cable Serial Port: D-Sub 9 x 2 USB Port: USB Type A x 4 Digital I/O: 8-bit programmable (optional) Audio: Line-out, Mic
- LED Indicator: Power LED x 1, HDD LED x 1
- Power Supply:
DC Input: AT or ATX type, +9V ~ +30V Input AC Input: AT type, 100V ~ 240V Input
- System Cooling: 6cm cooling fan x 1
Mechanical & Environmental
- Operating Temperature: 32oF ~ 104oF (0oC ~40oC)
- Vibration: 0.5g rms/ 5~500Hz/ random operation
- EMC: CE /FCC class A
- Dimensions: 10" x 5.75" x 2.1" (254mm x 146mm x 53mm)
- Construction: Heavy duty steel
- Mounting: Desktop or Wallmount (Optional)
- Color: Black
|
Ordering Information
- TF-TKS-G50-8310-005-DX/DT/AT
Chassis Kit, GENE-8310-A12, Celeron® M 1.3GHz
(DX: DC-ATX / DT: DC-AT / AT: AC-AT)
- TF-TKS-G50-8310-006-DX/DT/AT
Chassis Kit, GENE-8310-A12, Celeron® M 1.5GHz
(DX: DC-ATX / DT: DC-AT / AT: AC-AT)
- TF-TKS-G50-9310-002-DX/DT/AT
Chassis Kit, GENE-9310-A10 (DX: DC-ATX / DT: DC-AT / AT: AC-AT)
Optional Accessories:
- 9761G50000 - Wallmount Kit
- 9741666646 - 802.11b/g Wireless LAN Kit
- 9741G50006 - DVI Kit (For TF-TKS-G50-9310-001-DX/ DT/ AT)
- 1700250370 - DVI Cable (For TF-TKS-G50-8310 Series)
- 9741G50008 - S-Video Out Cable Kit
- 9741G50009 - Composite Video Out Cable Kit
- 1701150201 - Digital I/O Cable
- 1757908400 - 84 Watts Power Adapter
|
|
