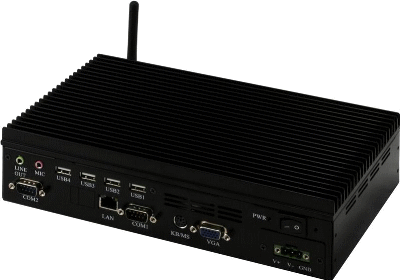

TKS-G20-9310
|
|
Fanless Chassis Kit for
GENE-9310 |
Features
- Fanless Design
- VGA/ DVI (Optional)/ TV-out (Optional)
- 2.5" Hard Disk Drive and CompactFlash™
- 802.11b/g WiFi (Optional)
- COM x 2, USB x 4, 8-bit Digital I/O (Optional)
- Built-in AC-in or DC-in Power Supply
- Desktop or Wallmount (Optional)
|
Specifications
System
- CPU Board Support: GENE-9310 with Intel® Celeron® M 1.86GHz
- Display:
VGA: D-Sub 15 x 1 TV-out: S-Video x 1 (optional) or composite Video x 1 (optional) DVI: DVI-D x 1 (optional)
- Storage:
SSD: Type II CompactFlash™ Slot x 1 HDD: 2.5" Hard Disk Drive Bay x 1
- LAN:
Ethernet: 10/100/1000Base-TX RJ-45 x 1 Wireless: 802.11b/g WiFi Kit (optional)
- System I/O:
PS/2 Port: PS/2 x 1 for keyboard and mouse through Y-cable Serial Port: D-Sub 9 x 2 USB Port: USB Type A x 4 Digital I/O: 8-bit programmable (optional) Audio: Line-out, Mic
- LED Indicator: Power LED x 1, HDD LED x 1
- Power Supply:
DC Input: AT or ATX type, +9V ~ +30V Input AC Input: AT type, 100V ~ 240V Input
- System Cooling: Fanless
Mechanical & Environmental
- Operating Temperature:
32oF ~ 104oF (0oC ~40oC) (with Wide Temperature Hard Disk Drive or CompactFlash™)
- Vibration: 0.5g rms/ 5~500Hz/ random operation
- EMC: CE /FCC class A
- Dimensions: 10" x 5.75" x 2.48" (254mm x 146mm x 63mm)
- Construction: Heavy duty steel
- Mounting: Desktop or Wallmount (Optional)
- Color: Black
|
Ordering Information
- TF-TKS-G20-9310-002-DX/DT/AT
Fanless Chassis Kit, GENE-9310-A10, Celeron® M 1.86GHz
(DX: DC-ATX / DT:DC-AT / AT: AC-AT)
Optional Accessories:
- 9761G50000- Wallmount Kit
- 9741666646 - 802.11b/g Wireless LAN Kit
- 9741G50006 - DVI Kit
- 9741G50008 - S-Video Out Cable Kit
- 9741G50009 - Composite Video Out Cable Kit
- 1701150201 - Digital I/O Cable
- 1757908400 - 84 Watts Power Adapter
|
