Gabinetes
para SBC
SBC
- Tamanho Sub-Compacto |
|

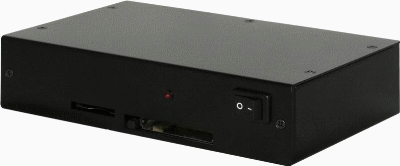

TKS-G10
|
|
Fanless Chassis Kit for
GENE-1425 |
Features
- Fanless Design
- RJ-45 x 6 for 2 WAN Ports, 4 LAN Ports
- COM x 1, USB 2.0 Host x 1, USB Client x 1
- +9V to +24V DC Input
- Desktop or Wallmount (Optional)
|
Specifications
System
- CPU Board: Support GENE-1425
- Ethernet: RJ-45 x 6 for 2 WAN ports and 4 LAN ports
- USB Port: USB Host Type A x 1, USB Client Type B x 1
- Serial Port: D-Sub 9 x 1
- LED Indicator: Power LED x 1
- Power Supply: +9V to +24V DC input
Mechanical & Environmental
- Operating Temperature: 32oF ~ 113oF (0oC ~ 45oC)
- Vibration: 1g rms/ 5~500Hz/ random operation
- Dimensions: 7.01" x 4.29" x 1.57" (178mm x 109mm x 40mm)
- Construction: Heavy duty steel
- Mounting: Desktop or Wallmount (optional)
- Color: Black
- EMC: CE /FCC class A
|
Ordering Information
- TF-TKS-G10-1425-001
Chassis Kit, GENE-1425-A10, IXP420-266MHz, 32MB RAM, 16MB Flash
Optional Accessories:
- 9761G11001 - Wallmount Kit
|
