- Tamanho EPIC |
|

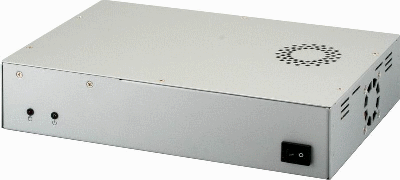

TKS-E50-9456
|
|
Chassis Kit for
EPIC-9456 |
Features
- Supports VGA/DVI/TV-out
- Supports 2.5" SATA Hard Disk Drive and CompactFlash
- Supports 802.11b/g WiFi (Optional)
- Supports GPS (Optional)
- USB x 4, COM x 2 (Optional COM x 4)
- 8-bit Digital I/O (Optional)
- +12V Lockable DC Input
- Desktop or Wallmount (Optional)
|
Specifications
System
- CPU Board: Support EPIC-9456
- Display:
VGA: D-Sub 15 x 1 DVI: DVI-D x 1 TV-out: Composite & S-Video
- Storage:
SSD: Type II CompactFlash™ Slot x 1 Hard Disk: 2.5" SATA Hard Disk Drive Bay x 1
- LAN:
Ethernet: 10/100/1000Base-TX, RJ-45 x 2 Wireless: 802.11b/g WiFi Kit (optional)
- System I/O:
PS/2 Port: PS/2 x 1 for keyboard and mouse through Y-cable Serial Port: RS-232 x 1, RS-232/422/485 x 1 (optional COM x 4) USB Port: USB 2.0 x 4 Digital I/O: 8-bit programmable (optional) Audio: Line out, MIC
- GPS: GPS kit with antenna (optional)
- LED Indicator: Power LED x 1, HDD LED x 1
- Power Supply: AT or ATX type, +12V DC Input
- System Cooling: One CPU fan and one system fan
Mechanical & Environmental
- Operating Temperature: 32oF ~ 104oF (0oC to 40oC)
- Vibration: 0.5g rms/ 5~500Hz/ random operation
- EMC: CE / FCC Class A
- Dimension: 10"(W) x 6.3"(D) x 2.2"(H) (255mm x 160mm x 56mm)
- Construction: Heavy duty steel
- Mounting: Desktop or Wallmount (optional)
- Color: Gray
|
Ordering Information
- TF-TKS-E50-9456-001-DX/DT
Chassis Kit, EPIC-9456-A10 (DX: DC-ATX / DT: DC-AT)
Optional Accessories:
- 9741E50001 - COM Kit for TKS-E50
- 9741666648 - GPS LAN Kit, IEEE 802.11 b/g
- 9741666647 - Wireless LAN Kit, IEEE 802.11b/g
|
