Datasheet

Specifications

• Bus: PCI bus master design for real-time image capture
• Input composite video format: Monochrome, RS-170 (NTSC), CCIR (PAL), interlace, progressive scan and resettable
• Input video: Software selectable termination (75 ohms or 10K ohms)
• Resolution: RS-170: 640 x 480 pixels (maximum 768 x 486 pixels); CCIR: 768 x 576 pixels; 256 gray level, 8 bit
• Power: + 5 VDC, PCI, 700 mA
• Camera power: + 12V at 1A for four cameras
• Supported operating systems: Win 98, 98-SE, 2000, ME, NT4, XP
• Supported languages: C/C++, C#, Visual Basic and Visual Basic.NET

Features

• Sampling jitter: ± 2.6 ns with 1-line resync from reset; 0 using pixel clock input
• Video noise: <- 0.5 LSB (least significant bit)
• Software programmable look up tables (LUTs): 256-byte programmable
• External trigger: Four optically isolated or TTL trigger inputs
• Strobe and exposure output: One strobe output, two exposure outputs (up to four pulses, up to 59.99 min)
• General purpose input/output (I/O): Four TTL inputs, four TTL outputs
• Video multiplexing: Up to four video inputs (switch on trigger)
• On-board memory: 8MB image FIFO memory
• Direct memory access (DMA): Dual mode -- incremental or burst options
• Flexible memory allocation: Through scatter/gather technology
• ImageInfo: "Stamps" images with complete image acquisition status information
• Programmable linear offset and gain ­
• Standard product: Verified to FCC Part 15 Class A requirements. Full compliance to CE EMC standards (EN-55022, EN-55024, CISPR-22)
• Software and manual CD included on first purchase
• Compatible with: CVB, Halcon, ActiVision Tools and Xcaliper

Cables

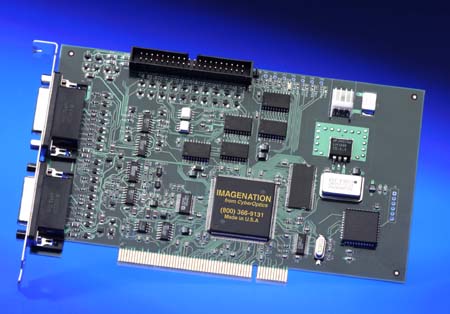

The Imagenation PXR800 frame grabber and PXR801 camera extender board have high-density DB-26 connectors for camera interface (two each).

There are no commercially available cabling solutions for the PXR800 through third party vendors. You have the option to purchase Imagenation PXR800 cables - two designs of pre-wired cables are available — the Full Use Cable (CB-081) and the Video/Trigger Only Cable (CB-082) — or build the cables yourself (refer to Chapter 5 of the User's Guide).

Full Use Cable (CB-081) provides the user access to each of the signals on the PXR800 26-pin connector, allowing for easy interconnection of system hardware and detailed application development. All signals are made available on BNC connectors except 12V power, which is provided on a 2.5mm inside diameter female power plug and the optically isolated trigger signals, which are on a 3 pin female DIN connector. For complete connector pin assignments and cable design advice, refer to Chapter 5 of the User's Guide, Cables and Connectors.

Video/Trigger Only Cable (CB-082) provides only the video input and TTL trigger input, each on a BNC connector, permitting quick implementation of simple image capture applications.

A separate Camera Extender Board (PXR801) enables easy, cost-effective cabling and set-up for 3- and 4-camera applications. This device plugs into the PXR800 and provides two additional 26-pin connectors for attaching the third and fourth cameras.
