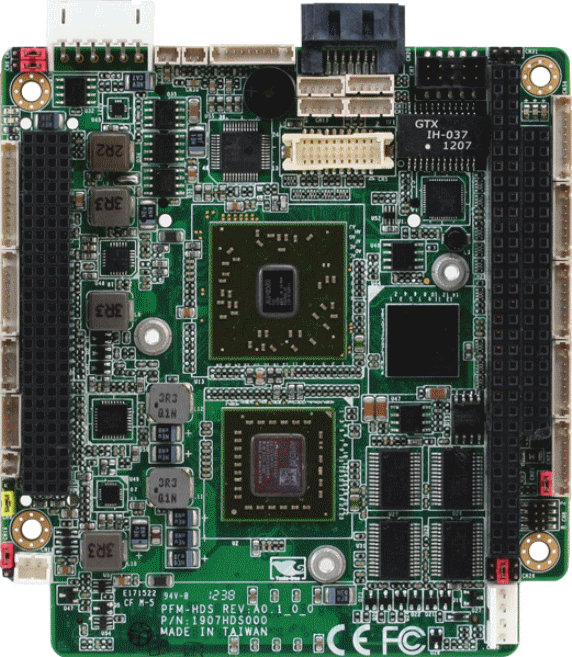

PFM-HDS
PC/104+ CPU Module with
AMD G-Series T16R Processor

    Features
  • Onboard AMD G-Series T16R Processor
  • AMD A55E
  • SODIMM DDR3 1066 up to 4GB
  • 10/100/1000Base-TX Ethernet x 1
  • CRT, 18-bit LVDS
  • 2CH HD Audio
  • SATA 3.0Gb/s x 1, CFast x 1
  • USB2.0 x 4, COM x 4, 8-bit Digital I/O
  • PC/104+ Expansion
  • +5V Only Operation
  • AAEON Hi-Safe SDK/Utility Supported
    Specifications
    System
  • Form Factor: PC/104
  • Processor: AMD G-Series T16R processor
  • System Memory: SODIMM DDR3 1066 up to 4GB
  • Chipset: AMD A55E
  • I/O Chipset: Fintek F81886DG
  • Ethernet: Realtek 8111E for 10/100/1000Base-TX x 1
  • BIOS: AMI Plug & Play SPI BIOS - 4MB Flash
  • Wake on LAN: Yes
  • Watchdog Timer: Generates a time-out system reset
  • H/W Status Monitoring:
    Supports power supply voltages and temperature monitoring
  • Expansion Interface: PC/104+
  • Battery: Lithium battery
  • Power Requirement: +5V, AT/ATX
  • Power Consumption (Typical):
    AMD G-series T16R, 615MHz, DDR3 1066 4GB, 2.03A @ +5V
  • Board Size: 3.77"(L) x 4.05"(W) (96mm x 103mm)
  • Gross Weight: 0.35lb (0.16kg)
  • Operating Temperature: 32F ~ 140F (0C ~ 60C)
  • Storage Temperature: -40F ~ 176F (-40C ~ 80C)
  • Operating Humidity: 0% ~ 90% relative humidity, non-condensing
  • MTBF (Hours): 94,000

    I/O

  • Storage: SATA 3.0Gb/s x 1, CFast x 1
  • Serial Port: RS-232 x 3, RS-232/422/485 (auto flow) x 1
  • USB: USB2.0 x 4
  • PS/2 Port: PS/2 Keyboard and Mouse x 1
  • Digital I/O: 8-bit Digital I/O (Programmable, 4-in/4-out)
  • Audio: Line-in, Line-out, Mic-in

    Display
    : Supports CRT/ LCD simultaneous /dual view displays

  • Chipset: AMD T16R processor
  • Resolutions:
    CRT: Up to 1920 x 1200
    LVDS: 18-bit up to 1366 x 768
  • LCD Interface: 18-bit LVDS Single Channel x 1
  Ordering Information
  • PFM-HDS-A10
    AMD G-series T-16R, SODIMM, Fanless, SATA x 1, CRT + LVDS, 1CH 18-bit LVDS,
    GbE x 1, USB x 4, RS-232 x 3, RS-232/422/485 x 1, PC/104+,
    +5V, AT/ATX, 0C ~ 60C

      Optional Accessories

  • 1709150151: (TF)CRT Cable, 1 x 13P Pitch=1.25mm Housing,15cm x 1
  • 1700100201: (TF)LAN Cable, RJ45 10P 2.0mm Housing, 20cm x 1
  • 1705050153: (TF)Inverter Cable, 1 x 5P Pitch=1.5mm Housing, 15cm x 1
  • 1700050207: (TF)USB Cable, 1 x 5P Pitch=1.25mm Housing, 20cm x 4
  • 1701090150: (TF)Flat Cable, D-Sub 9(M), 9P Housing, 9P 1.25mm pitch Housing, 15cm x 4
  • 1709070500: (TF)SATA Cable, 7P Pitch 1.27mm, 50cm x 1
  • 1702150155: (TF)Power Cable, 15P SATA (F), 2P 2.0mm Housing (PH), 15cm x 1
  • 1701100155: (TF)Flat Cable, Front Panel 10P, Pitch=1.25mm Housing, 15cm x 1
  • 1709100254: Audio Cable, Length 25cm x 1
  • 1700060155: PS/2 Keyboard & Mouse Cable x 1

      Packing List

  • 1702060105: Power Cable for PFM-HDS
  • 9657666600: Jumper Cap
  • Product DVD
  • PFM-HDS with Heatsink
