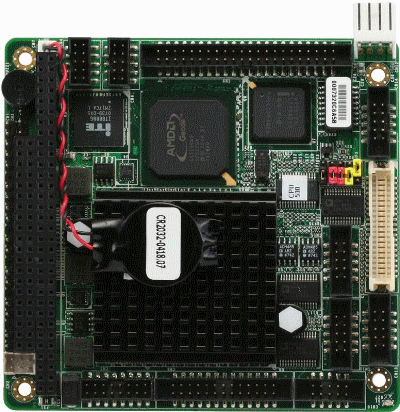

PFM-540I Rev. B
PC/104 CPU Module with
AMD Geode LX800 Processor
Extended temperature version available

    Features
  • Onboard AMD Geode™ LX800 Processor
  • AMD LX800 + CS5536
  • SODIMM x 1, DDR333 Up To 1 GB, DDR400 Up To 512 MB
  • 10/100Base-TX Ethernet x 1
  • 18/24-bit TTL LCD Support
  • EIDE x 1, CompactFlash™ x 1
  • USB2.0 x 4, COM x 4 And Parallel x 1
  • PC/104 Expansion
  • +5V Only Operation, AT Power Type
  • Low Power Consumption
    Specifications
    System
  • Form Factor: PC/104
  • Processor: Onboard AMD Geode™ LX800 Processor 500 MHz
  • System Memory: 200-pin DDR SODIMM x 1,
    Max. 1 GB for DDR333 and 512 MB for DDR400
  • Chipset: AMD LX800 + CS5536
  • I/O Chipset: SMSC 3114-Nu
  • Ethernet: Intel® 82551ER, 10/100Base-TX
  • BIOS: Award 1 MB FLASH ROM
  • Watchdog Timer: Generates a time-out system reset
  • H/W Status Monitoring:
    Supports power supply voltages and temperature monitoring
  • Expansion Interface: PC/104 socket x 1
  • Power Requirement: +5V/AT
  • Power Consumption (Typical):
    AMD Geode™ LX800 500 MHz, DDR400 512 MB = +5V @ 1.53A
  • Battery: Lithium battery
  • Board Size: 3.55” (L) x 3.775” (W) (90mm x 96mm)
  • Gross Weight: 0.25 lb (0.11 kg)
  • Operating Temperature:
    32oF ~ 140oF (0oC ~ 60oC);
    Optional: -40oF ~ 176oF (-40oC ~ +80oC)
  • Storage Temperature: -40oF ~ 176oF (-40oC ~ 80oC)
  • Operating Humidity: 0% ~ 90% relative humidity, non-condensing
  • MTBF (Hours): 100,000

    I/O

  • Storage: EIDE x 1 (UDMA 33 for one device), Type 1 CompactFlash™ x 1
  • Serial Port: RS-232 x 3, RS-232/422/485 x 1
  • Parallel Port: SPP/ EPP/ ECP mode
  • USB: USB2.0 x 4
  • PS/2 Port: Keyboard + Mouse x 1

    Display
    : Supports CRT/ LCD simultaneous display

  • Chipset: AMD LX800
  • Memory: Shared system memory up to 254 MB
  • Resolutions:
    Up to 1600 x 1200 @ 32bpp for CRT
    Up to 1024 x 768 @ 24bpp for LCD
  • LCD Interface: 18/24-bit TTL TFT LCD
  Ordering Information
  • TF-PFM-540I-B10 (Fanless)
    PC/104 Board, AMD LX800 LCD, DDR, LAN, 4 COM, 4 USB, CompactFlash™,
    PC/104, AT, Rev. B1.0
  • TF-PFM-540IW1-B10 (-40oC ~ +80oC)
    PC/104 Board AMD Geode™ LX800 500MHz, LCD, DDR, 4 COM, 4 USB, CompactFlash™, PC/104, AT B1.0, WiTAS 1 (-40oC ~ +80oC)

Optional Accessories

  • TF-PFM-P13DW2-A10 -- PC/104 Board Power Supply Module with +5V & +12V Output,
    PC/104, Rev. A1.0, WiTAS 2
  • 1701100207 -- RS-232 Cable x 1
  • 1700100200 -- LAN Cable x 1
  • 1701260200 -- Printer Cable x 1
  • 1709100201 -- USB Cable x 1
  • TF-PCM-3538T-A10 -- TTL to LVDS Transmitter Module Rev. A1.0
