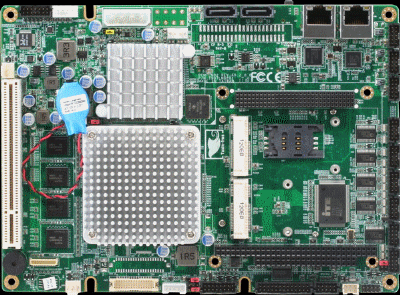

PCM-LN02
5.25" Compact Board with
Onboard Intel Atom N455/D525
Processors

    Features
  • Intel Atom N455/D525 Processor
  • Intel ICH8M
  • Onboard DDR3 Memory, Up to 2 GB
  • 10/100/1000Base-TX Ethernet x 2
  • Integrated Graphic Supports 18-bit or 24-bit LVDS Panel or TTL (Optional)
  • Speaker Out With 2W Amplifier (Wafer Box)
  • SATA 3.0 Gb/s x 2, CompactFlash x 1, EIDE x 1 (Optional)
  • USB2.0 x 6, RS-232 x 5, RS-232/422/485 x 1
  • PC/104+(ISA+PCI), PCMCIA (x1 Slot)
  • Mini-Card x 2 (1st: Full Size + SIM; 2nd: Half-size)
  • +12V Only Option With Optional ATX
  • Optional TPM1.2
    Specifications
    System

  • Form Factor: 5.25"
  • Processor: Onboard Intel Atom N455/D525
  • System Memory: Onboard DDR3 667/800, Max. 2GB
  • Chipset: ICH8M
  • I/O Chipset: ITE 8712F/KX-L + Fintek F81216AD
  • Ethernet: Intel i82567V(PHY) + IntelR i82583V 10/100/1000 Base-TX
  • BIOS: AMI 8MB
  • Wake on LAN: Yes
  • Watchdog Timer: 255 Levels
  • H/W Status Monitoring:
    Monitoring system temperature, voltage, and cooling fan status
  • Expansion Interface: PCI, PCMCIA, PC/104+(ISA+PCI),
    two mini-card (1st: full size+SIM; 2nd: half size) on the top side
  • Battery: Lithium Battery
  • Power Requirement: DC-12V or ATX
  • Power Consumption (Typical):
    Intel Atom D525 1.8GHz,
    0.1A @ +5V, 1.56A @ +12V
  • Board Size: 8" x 5.75" (203 mm x 146 mm)
  • Gross Weight: 1.2 lb (0.5 Kg)
  • Operating Temperature: 32F~ 140F (0C ~ 60C)
  • Storage Temperature: -40F~ 176F (-40C ~ 80C)
  • Operating Humidity: 0% ~ 90% relative humidity, non-condensing
  • MTBF (Hours): 60,000

    I/O

  • Storage: CompactFlash x1, SATA 3.0Gb/s x 2
  • Serial Port: RS-232 x 5, RS-422/485 x 1
  • Parallel Port: SPP/EPP/ECP
  • USB: USB2.0 x 6
  • PS/2 Port: KB/MS x 1
  • Digital I/O: Supports 8-bit (Programmable)

          Display: Supports CRT/LCD simultaneous/dual view displays

  • Chipset: Intel Atom processor integrated
  • Memory: Shared memory: 384MB/DVMT 4.0
  • Resolutions:
    Up to 1366 x 768, 18bpp for Single LVDS channel supporting resolution;
    Up to 2048 x 1536 @ 60Hz for Analog RGB display output resolution
  • LCD Interface: 18-bit LVDS or 24-bit LVDS, TTL (optional)
  Ordering Information
  • TF-PCM-LN02-A10
    5.25" Board, Intel Atom D525, CRT-LVDS(24bit), DDR3, 2 LAN, Audio,
    6 COM, 6 USB, PCI, PC/104+, PCMCIA, Mini Card, ATX, Rev. A1.0
  • TF-PCM-LN02-A10-01
    5.25" Board, Fanless, Intel Atom N455, CRT-LVDS(24bit), DDR3, 2 LAN , Audio,
    6 COM, 6 USB, PCI, PC/104+, PCMCIA, Mini Card, DC12V, Rev. A1.0
  • TF-PCM-LN02-A10-02
    5.25" Board, Intel Atom D525, CRT-LVDS(18bit), DDR3, 2 LAN, Audio,
    4 COM, 4 USB, Mini Card, ATX, Rev.A1.0
  • TF-PCM-LN02-A10-03
    5.25" Board, Fanless, Intel Atom N455, CRT-LVDS(18bit), DDR3, 2 LAN , Audio,
    4 COM, 4 USB, Mini Card, DC12V, Rev. A1.0

Optional Accessories

  • 1709100208 -- USB Cable, Length 20cm
  • 1700140510 -- Audio Cable, Length 51cm
  • 1701100206 -- COM Port Cable, Length 20cm
  • 1701260201 -- Parallel Port Cable, Length 20cm
  • 1709070500 -- SATA Cable, Length 50cm
  • 1701160201 -- VGA Cable, Length 20cm
