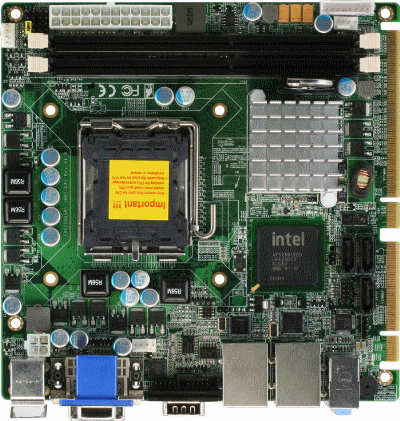

IMBI-Q45
Mini-ITX Industrial Motherboard
With Intel Core 2 Quad/ Core 2 Duo
LGA775 Processors

    Features
  • Intel Core 2 Duo/ Quad LGA775 Processor
  • Intel Q45 + ICH10D0
  • Dual-Channel DDR3 800/1066 Memory (Up To 4 GB), 2 GB, Double Side DIMM x 2
  • Intel Gigabit Ethernet x 2
  • Dual View With VGA & DVI
  • SATA 3.0Gb/s x 3, RAID 0,1,5,10
  • USB2.0 x 6, COM x 2
  • Multiple Extended Bus With Golden Finger
    Specifications
    System

  • Form Factor: Mini-ITX
  • Processor: Intel Core 2 Duo/Quad LGA775 CPU, FSB 800/1066/1333 MHz
    (Q9000, E8000, E7000, E5000, E6000, E4000, E2000, Conroe L series), TDP 95W Max.
  • System Memory: Dual-Channel DDR3 800/1066 SDRAM x 2,
    up to 4 GB, (2 GB Double Side DIMM x 2)
  • Chipset: Intel Q45 + ICH10DO
  • Ethernet: Intel 10/100/1000Base-TX, RJ-45 X2
    LAN1: Intel 82567LM, LAN2: IntelR 82574L
  • Audio: HD Audio Codec with Realtek ALC888
  • BIOS: Award BIOS SPI ROM-16 Mb
  • Storage: SATA 3.0Gb/s connector x 3 onboard with RAID (4th SATA in Golden Finger)
  • Watchdog Timer: 1 ~ 255 steps, can be set with software on Super I/O
  • H/W Status Monitoring:
    Monitoring system temperature, voltage, and cooling fan status
  • Expansion Interface: Multiple PCIe and PCI interface with Golden Finger
  • Power Requirement: ATX Standard with 24-pin connector x 1
  • Power Consumption: 64W @ Intel E8400, DDR3 1066/2GB, ATX
  • Board Size (L x W): 6.7" x 6.7" (170mm x 170mm)
  • Gross Weight: 0.66 lb (0.3 Kg)
  • Operating Temperature: 32F ~ 140F (0C ~ 60C)
  • Storage Temperature: -4F ~ 158F (-20C ~ 70C)
  • Storage Humidity: 10~80%, non-condensing
  • MTBF (Hours): 55,000

Display

  • Chipset: Intel Q45
  • Graphic Engine: Intel Graphics Media Accelerator 4500
  • Resolution: 2048 x 1536 for CRT; 1920 x 1080 for DVI
  • Output Interface: VGA x 1, DVI-D x 1

I/O: ITE.IT8718F

  • Serial Port: RS-232 x 2 (one with header, one with port)
  • KB & Mouse: Keyboard x 1 & Mouse x 1
  • USB: USB2.0 x 6 (four in the I/O side, two with header)
  • Audio: Audio Jack x 3 w/BTX Type ( Mic in, Line in, Line out)
  • Ethernet: RJ-45 x 2
  • DIO: Programmable 8-bit (4 input/ 4 output)
  Ordering Information
  • TF-IMBI-Q45-A13-G2
    Socket, DIMM, Fan, VGA/DVI-D, SATA2 x 3, GbE x 2, USB x 6, RS-232 x 2, Golden Finger,
    ATX, 0C ~ 60C

Optional Accessories

  • 1759200169 -- CPU Cooler for LGA 775 CPU, TDP 95W, 2~4U
  • 1759200335 -- CPU Cooler for LGA 775 CPU, TDP 65W, 1U

Packing List

  • 1709070800 -- SATA Signal Cable
  • 1701100305 -- COM Port Cable with DB-9
  • 1709100201 -- USB Cable
  • M20Q450000 -- I/O Shield
  • Product CD
  • IMBI-Q45
