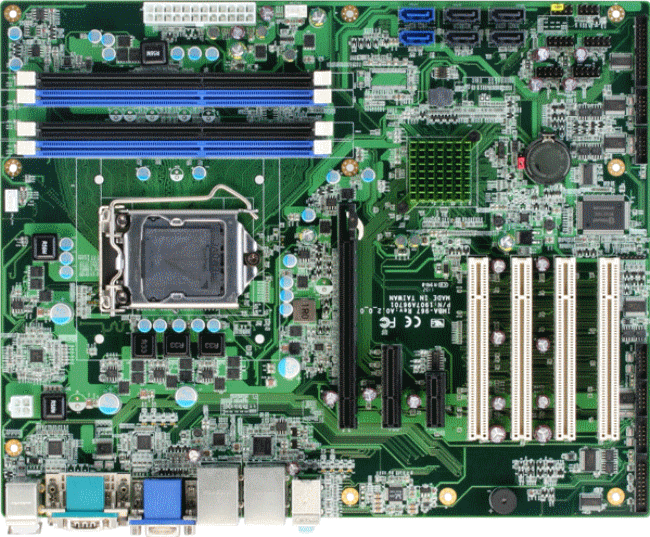

IMBA-967
ATX Industrial Motherboard
With Intel Core i7/i5/i3 Processor

    Features
  • Intel Core i7/i5/i3 LGA 1155 (4C/ 2C 32nm) Processor With Graphic & Memory Controller
  • Intel Q67
  • Dual-Channel DDR3 1066/1333 Memory (Up To 32 GB)
  • Intel 10/100/1000Base-TX Ethernet x 2 (LAN1 Supports Intel iAMT 7.0)
  • Intel Integrated GPU Support Dual Display By VGA, DVI, HDMI
  • HDAC With Realtek ALC662
  • SATA 6.0Gb/s and 3.0Gb/s x 6, Support RAID 0/1/5/10
  • USB2.0 x 12, COM x 6, LPT x 1 , IrDA x 1
  • PCI-E [x16] x 1, PCI-E [x4] x 1, PCI-Express [x1] x 1 , PCI x 4

    Introduction

    Specifications

System

  • Form Factor: ATX Industrial Motherboard
  • Processor: Intel Core i7/i5/i3 (4C/ 2C/ 32nm) Processor by LGA1155 (H2 socket),
    TDP 95W Max.
  • System Memory: Dual-Channel DDR3 1066/1333 Memory, up to 32 GB
  • Chipset: Intel Q67
  • Ethernet: Intel 10/100/1000Base-TX x 2, RJ-45 x 2
    LAN1: Intel 82579LM PHY (Supports Intel iAMT 7.0)
    LAN2: Intel 82574L
  • Audio: HD Audio codec with Realtek ALC662
  • BIOS: AMI BIOS--64Mb SPI flash ROM
  • H/W Status Monitoring: CPU Fan Speed, Temperature, Power Supply Voltage
  • Expansion Interface:
    PCI-Express [x16] x 1 (PCIE 2.0)
    PCI-Express [x4] x 1 (PCIE 2.0)
    PCI-Express [x1] x 1 (PCIE 2.0)
    PCI x 4 (PCI 2.3)
  • Watchdog Timer: 1 ~ 255 steps, can be set with software on Super I/O
  • RTC: Internal RTC
  • Battery: Lithium Battery
  • Power Requirement: ATX Standard 24-pin connector x 1
  • Operating Temperature: 32F ~ 140F (0C ~ 60C)
  • Storage Temperature: -4F ~ 158F (-20C ~ 70C)
  • Storage Humidity: 10%~80%, non-condensing
  • Board Size (L x W): 12" x 9.6" (305 mm x 244 mm)
  • Gross Weight: 1.76 lb (0.8 kg)
  • MTBF (Hours): 52,000

Display

  • VGA Controller: Intel integrated Graphics Processor Unit
  • Memory: 256MB
  • Resolution:
    2048x1536 for CRT
    1920x1080 for DVI
  • LCD Interface: VGA x 1, DVI-D x 1, HDMI x 1

I/O: Winbond W83627UHG

  • Storage: Onboard SATA x 6, support RAID 0/1/5/10
    SATA 6.0Gb/s x 2, 6.0Gb/s data transfer rate
    SATA 3.0Gb/s x 4, 3.0Gb/s data transfer rate
  • Serial Port: COM x 6 ( Pin-header x 5, DB-9 x 1)
    COM 1/2 : RS-232
    COM 3 : RS-232/422/485
    COM 4~6: RS-232 (Optional RS-422/485)
  • Parallel: Supports SPP/EPP/ECP modes
  • USB: USB2.0 x 12 ( box header x 10, Type-A port x 2)
  • PS/2 Port: Keyboard and Mouse x 1
  • Digital I/O: 8-bit (4-in /4-out) programmable
  • Display: VGA x 1, DVI-D x 1, HDMI x 1
  • Audio: Audio Jack x 3 With BTX Type ( Mic-in, Line-in, Line-out )
  • IrDA: IrDA Tx/Rx header x 1
  Ordering Information
  • TF-IMBA-967-A11-G2
    Socket, DDR3 32G, Fan, SATA2 x 4, SATA3 x 2, VGA/DVI-D/HDMI, GbE x 2, USB x 12, RS-232 x 5,
    RS-232/422/485 x 1, PCI-E[x16] x 1, PCI-E[x4] x 1, PCI-E[x1] x 1, PCI x 4, ATX, 0C ~ 60C
  • TF-IMBA-967-A11-VG
    Socket, DDR3 32G, Fan, SATA2 x 4, SATA3 x 2, VGA/DVI-D/HDMI, GbE x 1, USB x 12, RS-232 x 1,
    RS-232/422/485 x 1, PCI-E[x16] x 1, PCI-E[x4] x 1, PCI-E[x1] x 1, PCI x 4, ATX, 0C ~ 60C

Optional Accessories

  • 1759200172 -- CPU Cooler for LGA 1155 CPU, TDP 95W

Packing List

  • 1700100353 -- USB Cable
  • 1701100305 -- COM Port Cable
  • 1709070800 -- SATA Cable
  • M20QM57000 -- I/O Shield
  • Product CD
  • IMBA-967
