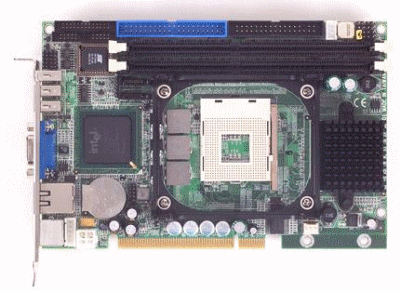

Intel Pentium 4 3.0GHz
PCI Half-size SBC

  • Intel Pentium 4 CPU up to 3.2GHz
  • DDR400 Memory up to 2GB
  • Integrates AGP 8X 2D/3D Graphics Accelerator, VGA Support
  • 10/100/1000 Base-TX Ethernet Port x 1 (10/100& GbE Optional)
  • Integrates AC97 Codec Audio (Daughter Board Optional)
  • USB 2.0 Port x 7/ RS-232 x 1/ RS-232/422/485 Port x 1/ Parallel Port x 1/ IrDA Port x 1
  • Ultra ATA100 & SATA & CompactFlash™ Type-I Storage
  • Watchdog Function 1~255 Sec.


The HSB-835P which is powered by Intel Pentium 4/Prescott processors is a flexible half-size form factor single board computer (SBC) with an onboard VGA, 10/100/1000Mb LAN optional and seven USB 2.0 ports.

Intel's most advanced 865GV chipset was deployed in HSB-835P which supports high CPU frequencies up to 3.2 GHz with a front side bus running at 400/533/800MHz.  HSB-835P supports Intel Hyper-Threading Technology  giving you the best overall Pentium 4/Prescott processor performance available.  HSB-835P features high memory capacity up to 2 GB DDR DRAM (DDR 266/333/400) and supports Dual channel DDR memory interface.



  • Form Factor: Half-size SBC
  • Processor: Supports Intel Pentium 4 and Celeron processors up to 3.0 GHz (400/533/800 MHz FSB)
  • System Memory: 184-pin 2.5V DDR DIMM Socket x 2, total up to 2 GB, Supports Dual Channels DDR memory (DDR266/333/400)
  • Chipset: Intel 865GV + Intel 82801EB/ER (ICH5/ICH5R)
  • Ethernet: 10/100Mb or 10/100/1000Mb LAN optional, RJ-45 x 1, Intel 82562EZ/ 82547GI controller
  • BIOS: Award Plug & Play Firmware Hub BIOS-4Mb ROM
  • IDE Interface: ATA-100 x 1 channel (Supports two ATAPI devices); SATA-I x 2 (Supports two SATA devices, Raid function optional)
  • SSD: Supports CompactFlash Type II Connector
  • Expansion Interface: PICMG/ PCI, interface
  • Watchdog Timer: 1~255 sec. can be set with software on Super I/O
  • RTC: Internal RTC
  • Battery: Lithium battery
  • Power Requirement: ATX, ATX12V
  • Operating Temperature: 32oF ~ 140oF (0oC ~ 60oC )
  • Board Size: 7.3" (L) x 4.8" (W) (185 mm x 122 mm)
  • Gross Weight: 0.71 lb (0.3 kg)
  • MTBF (Hours): 94,219
  • Power Consumption(Typical): 65W, with Pentium 4 3.2GHz/ FSB 533MHz/ 1MB L2 Cache

          I/O: I/O chipset + Winbond 83627HG

  • Serial Port: Two COM ports: (Internal Pin Header, External D-sub x 2); COM 1:RS-232; COM 2: RS-232/422/485
  • Parallel Port: Supports SPP/ EPP/ ECP modes
  • Universal Serial Bus: USB port x 7/ 5 x 2 pin-header x 2/ Type A connector x 3
  • Floppy Drive Interface: One Standard Floppy Disk Drive port, supports up to two floppy
  • Keyboard and Mouse: Mini-DIN for PS/2 keyboard and mouse connector x 1, Internal keyboard pin header x 1
  • IR Interface: Supports IrDA header x 1
  • Audio (Daughter Board): Realtek ALC655 AC97 Codec, MIC-in/Line-in (Optional) /Line-out/CD-in

          Display: Supports CRT & LCD simultaneous display

  • VGA Chipset: Integrated on Intel 865GV, AGP 8X, Core frequency up to 266MHz
  • Memory: Share system memory up to 8M
  • Resolutions: 1600x1200 @ 32bpp colors for CRT; 1280x1024 @ 24-bit colors for LCD
  Ordering Information
  • TF-HSB-835P-A11-V
    Half-size PICMG/PCI, Pentium 4, VGA, 7 USB, CF, AC97, SATA, ATX, Rev.A1.0
  • TF-HSB-835P-A11-VE
    Half-size PICMG/PCI, Pentium 4, VGA, 1 LAN, 7 USB, CF, AC97, SATA, ATX, Rev.A1.0
  • TF-HSB-835P-A11-VG
    Half-size PICMG/PCI, Pentium 4, VGA,1 GbE LAN, 7 USB, CF, AC97, SATA, ATX, Rev.A1.0
  • TF-HSB-835P-A11-VF
    Half-size PCI CPU Card, Pentium 4, VGA, 7 USB, w/o CF, AC97, SATA, ATX, Rev.A1.0
  • TF-HSB-835P-A11-VEF
    Half-size PCI CPU Card, Pentium 4, VGA,1 LAN, 7 USB, w/o CF, AC97, SATA, ATX, Rev.A1.0
  • TF-HSB-835P-A11-VGF
    Half-size PCI CPU Card, Pentium 4, 1 GbE LAN, 7 USB, w/o CF, AC97, SATA, ATX, Rev.A1.0

          Passive Backplane Options:

  • TF-BP-208SP-P7-A10
    Wallmount, PCI, 8-slot Backplane, 7 PCI, Single Segment, ATX, Rev.A1.0 PCI (7/0/1) ATX, 3-pin ATX extend
  • TF-BP-206SP-P4-A10
    Wallmount, PCI, 6-slot Backplane, 4 PCI, Single Segment, ATX, Rev.A1.0 PCI (4/0/2) ATX, 3-pin ATX extend
  • TF-BP-205SP-P4-A12
    Wallmount, PCI, 5-slot Backplane, 4 PCI, Single Segment, ATX, Rev.A1.2 PCI (4/0/1) ATX, 3-pin ATX extend
  • TF-BP-204SP-P3-A11
    Wallmount, PCI, 4-slot Backplane, 3 PCI, Single Segment, AT/ATX, Rev.A1.1 PCI (3/0/1) ATX, 3-pin ATX extend

      Note: AT mode power supply has not been supported.

          Optional Accessories:

  • TF-PER-U00A
    AC97 Audio Daughter Board
  • 1701400802
    Flat Cable, 40P-40P-40P (UL: 2651, 15cm + 65cm), 80cm for ATA33
  • 1701400800
    Flat Cable, 40P-40P-40P (UL: 20674, 15cm + 65cm), 80cm for ATA100
  • 1701400702
    Flat Cable, 40P ATA-100 2.54mm, BLUE/GRAY/BLACK 70cm for Hard Disk Drive
  • 1759200332
    CPU Cooler Fan 1U for Pentium 4 2.8G, 3P, 12V, Dual Ball Bearing
  • 1759200155
    CPU Cooler Fan + Heatsink, Socket 478, 3P, 12V, for P4 Over 3.06GHz
