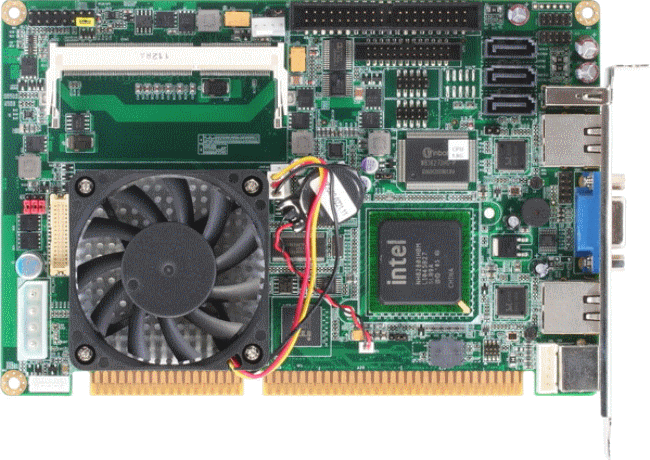

Click para ampliar a imagem

HSB-525I

ISA Half-Size SBC With
Intel Atom D525 Processor

    Features
  • Intel Atom D525 Processor, FSB 800 MHz
  • Intel Atom D525 + ICH8M
  • 204-pin DDR3 800MHz SODIMM Memory x 2, Up To 4GB
  • Gigabit Ethernet x 2
  • Intel Atom D525 Integrated VGA, Shared Memory Up To 324MB With DVMT4.0.
  • Optional HD Codec Audio Daughter Board
  • SATA 3.0Gb/s x 3, CompactFlash Type 2, ATA100 x 1
  • USB2.0 x 5, RS-232/422/485 x 1, RS-232 x 1
  • ISA Expansion
  • +5V, +12V Operation, AT Power

    Introduction

    Specifications

    System


  • Form Factor: ISA Half-Size SBC
  • Processor: Intel Atom D525
  • System Memory: 204-pin DDR3 800 MHz SODIMM x 2, Max. 4GB
  • Chipset: Intel Atom D525 + ICH8M
  • Ethernet: 10/100/1000Base-TX Ethernet x 2
  • Audio: Realtek ALC888 HD Codec (Optional)
  • BIOS: AMI Plug & Play SPI BIOS 4 MB ROM
  • I/O Chip: Winbond 83627DHG-P
  • Storage: ATA100 x 1, SATA 3.0Gb/s x 3
  • SSD: CompactFlash Type 2 socket x 1
  • DIO: 8-bit Programmable
  • Watchdog Timer: 1 ~ 255 steps, can be set with software on Super I/O
  • H/W Status Monitor: Monitoring system temperature, voltage, and cooling fan status
  • Expansion Interface: ISA
  • Power Requirement:
    +5V, +12V by ISA bus, onboard 4-pin power connector (+5V, +12V)
  • Dimension (W x H x D): 7.3" x 4.8" (185mm x 122mm)
  • Gross Weight: 0.71 lb (0.3 Kg)
  • Operating Temperature: 32F ~ 140F (0C ~ 60C)
  • Storage Temperature: -4F ~ 158F (-20C ~ 70C)
  • Operating Humidity: 10~80%, non-condensing

          I/O: Winbond W83627DHG-P

  • Storage: SATA 3.0Gb/s x 3, CompactFlash? x 1, ATA100 x 1
  • Serial Port: RS-232 x 1, RS-232/422/485 x 1
  • KB & Mouse: KB & Mouse x 1
  • Universal Serial Bus: USB2.0 x 5 (5x2 pin-header x 2, Type A x 1)
  • Audio: Audio Jack x 2 w/BTX Type ( Mic-in/ Line-out)
  • Ethernet: RJ-45 x 2
  • Display: VGA x 1, LVDS x 1

          Display

  • Chipset: Intel Atom D525 + ICH8M
  • Graphic Engine: Intel Atom D525 integrated VGA,
    Shared memory up to 324MB with DVMT4.0.
  • Resolution: 2048 x 1536 @ 60Hz for CRT; 1366 x 768 @ 60Hz for LCD
  • Output Interface: VGA x 1, 18-bit Single Channel LVDS x 1

Note: HSB-525I has to be operated with an ISA backplane to supply +5V, +12V, and -12V power inputs to make COM1 work functionally.


  Ordering Information
  • TF-HSB-525I-A10-G2
    Intel Atom D525, SODIMM, Fan, VGA + LVDS, SATA2 x 3, IDE x 1,
    CompactFlash x 1, 18-bit Single Channel, Gigabit Ethernet x 2, USB2.0 x 5,
    RS-232 x 1, RS-232/422/485 x 1, ISA, +5V, +12V, AT, 0C ~ 60C

      Passive Backplane Options

  • TF-BP-204SI
    Wallmount, ISA, 4-slot Backplane, 4 ISA, Single Segment, AT, ISA x 4, AT
  • TF-BP-206SI
    Wallmount, ISA, 6-slot Backplane, 6 ISA, Single Segment, AT/ATX, ISA x 6, AT/ATX
  • TF-BP-214SI
    Rackmount, ISA, 14-slot Backplane, 14 ISA, Single Segment, AT, ISA x 14, AT

      Optional Accessories

  • TF-PER-U01H -- HD Code Audio Daughter Board
