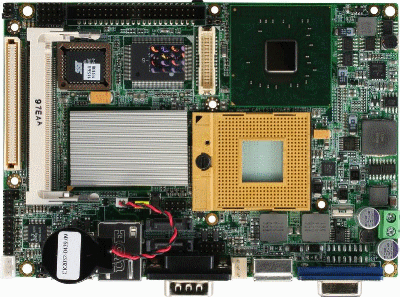

Click para visualizar melhor

GENE-9310
3.5" SubCompact Board with
Intel Core 2 Duo/ Core Duo/
Celeron M (65nm) Processors

Datasheet
GENE-9310

    Features
  • Intel Core 2 Duo/ Core Duo/ Celeron M (65nm) Processor Up To 2.16 GHz
  • Intel 945GME + ICH7M
  • SODIMM DDR2 400/533/667 Max. 2 GB
  • Gigabit Ethernet x 1
  • CRT, 24-bit Dual-channel LVDS LCD
  • AC97 2.3 Codec 2CH Audio
  • EIDE x 1, SATA 1.5Gb/s x 2, CompactFlash? x 1
  • 8-bit Digital I/O, USB x 4, COM x 2
  • Flexible Expansion: Mini PCI Socket And ECX Proprietary Expansion Connector
  • +12V Only Operation
  • Optional Extension Board Supports: 24-bit Dual-channel LVDS or DVI, USB x 1, SATA 1.5Gb/s x 2 (Support RAID 0 & RAID 1) or PCI-E [x1] x 1, COM x 4, LPC x 1 & PCI x 1 Signals
    Specifications
    System

  • Form Factor: 3.5"
  • Processor: Socket-478M or onboard Intel Core 2 Duo/ Core Duo/ Celeron M (65nm) processor up to 2.16 GHz, FSB 533/ 667 MHz
  • System Memory:
    200-pin DDR2 SODIMM x 1, Max. 2 GB (DDR2 400/533/667)
  • Chipset: Intel 945GME + ICH7M
  • I/O Chipset: ITE IT8712
  • Ethernet: Intel 82573L, 10/100/1000Base-TX, RJ-45 x 1
  • BIOS: Award Plug & Play BIOS - 1 MB Flash
  • Wake On LAN: Yes
  • Watchdog Timer: Generates a time-out system reset
  • H/W Status Monitoring:
    Supports power supply voltages, Fan speed and temperature monitoring
  • Expansion Interface: Mini PCI x 1, ECX Proprietary Expansion connector x 1
  • Battery: Lithium battery
  • Power Requirement: +12V, AT/ATX
  • Power Consumption (Typical):
    Intel Core 2 Duo/ T7400 2.16 GHz, DDR2 667 1 GB
    +12V @ 3.89A
  • Board Size: 5.75" (L) x 4" (W) (146 mm x 101.6 mm)
  • Gross Weight: 0.88 lb (0.4 kg)
  • Operating Temperature: 32F ~ 140F (0C ~ 60C)
  • Storage Temperature: -40F ~ 176F (-40C ~ 80C)
  • Operating Humidity: 0% ~ 90% relative humidity, non-condensing
  • MTBF (Hours): 70,000

    I/O

  • Storage:
    EIDE x 1 (UDMA 33 for two devices), SATA 1.5Gb/s x 2, Type 2 CompactFlash x 1
  • Serial Port: RS-232 x 1, RS-232/422/485 (auto flow) x 1
  • USB: USB2.0 x 4
  • PS/2 Port: Keyboard x 1, Mouse x 1
  • Digital I/O: Supports 8-bit (Programmable)
  • Audio: Mic-in, Line-in, Line-out, CD-in, S/PDIF in/out

    Display:
    Supports CRT/LCD simultaneous/ Dual view displays

  • Chipset: Intel 945GME integrated
  • Memory: Shared system memory up to 224 MB/ DVMT3.0
  • Resolutions:
    Up to 2048 x 1536 for CRT
    Up to 1920 x 1200 for LCD
  • LCD Interface: Up to 24-bit dual-channel LVDS
  Ordering Information
  • TF-GENE-9310-A11
    Intel CeleronM 1.06GHz, FAN, CRT+LVDS, 2CH 24-bit LVDS, EIDE x 1, SATA x 2,
    CompactFlash x 1, Gigabit Ethernet x 1, USB x 4, RS-232 x 1, RS-232/422/485 x 1,
    Mini PCI x 1, ECX Proprietary Expansion x 1, +12V/ AT/ATX, 0C ~ 60C
  • TF-GENE-9310-A11-01
    Intel CeleronM 1.06GHz, Fanless, CRT+LVDS, 2CH 24-bit LVDS, EIDE x 1, SATA x 2,
    CompactFlash x 1, Gigabit Ethernet x 1, USB x 4, RS-232 x 1, RS-232/422/485 x 1,
    Mini PCI x 1, ECX Proprietary Expansion x 1, +12V/ AT/ATX, 0C ~ 60C

Optional Accessories

  • 1701100206 -- COM Port Cable, 9P DB Male, Length 20cm
  • 1701440500 -- IDE Cable, Length 30+20cm
  • 1709100208 -- USB Cable, Length 20cm
  • 1709070500 -- SATA Cable, Length 50cm
  • 1709140181 -- Audio Cable, Audio Jack, Length 18cm
  • 1709030150 -- SPDIF Cable, Length 15cm
  • TF-PER-T061-A10 -- ECX Expansion Board, LVDS, 2 SATA, 4 COM,1 USB, Rev. A1.0
  • TF-PER-T061-A10-01 -- ECX Expansion Board, DVI, 2 SATA, 4 COM, 1 USB, Rev. A1.0
  • TF-PER-T099-A10 -- ECX Extension Board, LVDS, PCI-Express, 2 COM, Rev. A1.0
  • TF-PER-T099-A10-01 -- ECX Extension Board, LVDS, Mini Card, 2 COM, Rev. A1.0
  • TF-PER-T099-A10-02 -- ECX Extension Board, DVI, PCI-Express, 2 COM, Rev. A1.0
  • TF-PER-T099-A10-03 -- ECX Extension Board, DVI, Mini Card, 2 COM, Rev. A1.0
