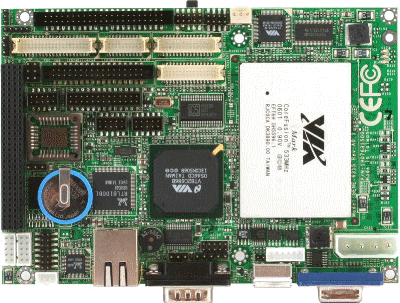

GENE-6315
3.5" SubCompact Board
with
VIA Mark Low Power Processor
|
|
|
Features
- Onboard VIA Mark Series Processors
- Up to 36-bit TTL/ LVDS TFT LCD
- SODIMM PC-133 Memory up to 1GB
- CompactFlash Type II
- USB 2.0 x 2/ USB 1.1 x 2/ 8-bit Digital I/O / COM x 4
- PCI-104
- AC97 2.3 Codec with S/P DIF Function
|
Specifications
Form Factor: 3.5"
Processor: Onboard VIA Mark 533/800 MHz
Processor with FSB 100/133 MHz
System Memory: 144-pin SDRAM SODIMM x 1, max.
1GB (PC-133)
Chipset: VIA Mark + VT82C686B
I/O Chipset: Winbond W83977EF
Ethernet: Realtek RTL8100BL, 10/100 Base-TX,
RJ-45 x 1
BIOS: AWARD Plug & Play ISA BIOS - 256KB ROM
Wake On LAN: Yes
Watchdog Timer: Generates a time-out system
reset
H/W Status Monitoring: Supports power supply
voltages and temperature monitoring
Solid Storage Disk: Type II CompactFlash slot
x 1
Expansion Interface: PCI-104 x 1
Battery: Lithium battery
Power Requirement: +5V Only, AT/ATX
Power Consumption (Typical):
VIA Mark
533 MHz: 3.12A @ 5V, 0.36A @ 12V
VIA Mark
800 MHz: 3.42A @ 5V, 0.26A @ 12V
Board Size: 5.75" (L) x 4" (W) (146 mm x
101.6 mm)
Gross Weight: 0.88 lb (0.4 kg)
Operating Temperature: 32oF~ 140oF
(0oC ~ 60oC)
Storage Temperature: -40oF~176oF
(-40oC~80oC)
Operating Humidity: 0% ~ 90% relative
humidity, non-condensing
MTBF (Hours): 77,920
I/O
MIO: EIDE x 1 (UDMA-33 x 1), Floppy Disk
Drive x 1, Keyboard+Mouse x 1,
RS-232 x 3, RS-232/422/485 x 1, Parallel x 1
IrDA: One IrDA Tx/Rx header
Audio: MIC-in, Line-in, Line-out, S/PDIF
in/out
USB: Two 5 x 2 pin headers support Two USB2.0
& Two USB1.1 ports
Digital I/O: Supports 8-bit (programmable)
Display: Supports
CRT/LCD, CRT/TV & LCD/TV simultaneous display
Chipset: VIA Mark + TI SN75LVDS83
Memory: Shared system memory up to 32MB
Resolutions:
Up to 1600 x 1200 @ 24bpp for CRT
Up to 1280 x 1024 @ 18bpp for LCD
LCD Interface: Up to 36-bit TTL / LVDS TFT
LCD
TV-out: Supports NTSC and PAL standard,
S-Terminal and Composite Video
|
Ordering Information
- TF-GENE-6315-A10
3.5" Board, VIA Mark 800MHz, LCD-TV, SDM, LAN, Audio, 4
COM, USB2.0, CF, PCI-104, Rev.A1.0
- TF-GENE-6315-A10-01
3.5" Board, VIA Mark 533MHz, LCD-TV, SDM, LAN, Audio, 4
COM, USB2.0, CF, PCI-104, Rev.A1.0
|
|
