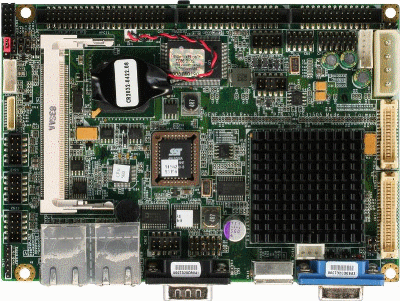

GENE-5315 Rev.B
3.5" SubCompact Board with
AMD Geode LX Series
Extended temperature version available

Datasheet
GENE-5315B

    Features
  • Onboard AMD Geode LX800 Processor
  • AMD Geode LX + CS5536
  • SODIMM DDR333 Max. 1 GB, DDR400 Max. 512 MB
  • 10/100Base-TX Ethernet x 2
  • Up to 24-bit Single Channel LVDS/ TTL LCD & CRT
  • AC97 Codec 2CH Audio
  • EIDE x 1, Floppy Disk Drive x 1, CompactFlash x 1
  • COM x 5, Parallel x 1, USB2.0 x 4, 8-bit Digital I/O
  • Mini PCI
  • +5V Only Operation
    Specifications
    System

  • Form Factor: 3.5"
  • Processor: Onboard AMD Geode LX800 series processor
  • System Memory:
    200 pin DDR SODIMM x 1, Max 1 GB for DDR333 and 512 MB for DDR400
  • Chipset: AMD Geode LX + AMD CS5536
  • I/O Chipset: ITE IT8712
  • Ethernet: Realtek RTL8139DL, 10/100Base-TX, RJ-45 x 2
  • BIOS: Award 512 KB Flash ROM
  • Wake On LAN: Yes
  • Watchdog Timer: Generates a time-out system reset
  • H/W Status Monitoring:
    Supports power supply voltages and temperature monitoring
  • Expansion Interface: Mini PCI x 1
  • Battery: Lithium battery
  • Power Requirement: +5V/ AT/ ATX
  • Power Consumption (Typical):
    LX800 500 MHz, DDR 333 1 GB
    1.17A @ +5V
  • Board Size: 5.75" (L) x 4" (W) (146mm x 101.6mm)
  • Gross Weight: 0.88 lb (0.4 Kg)
  • Operating Temperature:
    32F ~ 140F (0C ~ 60C)
    -4F ~ 158F (-20C ~ 70C) for WiTAS 1
  • Storage Temperature: -40F ~ 176F (-40C ~ 80C)
  • Operating Humidity: 0% ~ 90% relative humidity, non-condensing
  • MTBF (Hours): 90,000

    I/O

  • Storage:
    EIDE x 1 (UDMA 33 for two devices), Type 2 CompactFlash x 1, Floppy Disk Drive x 1
  • Serial Port:
    RS-232 x 4, TTL UART x 1
    RS-232/422/485 (auto flow) x 1
  • Parallel Port: SPP/ EPP/ ECP mode
  • USB: USB2.0 x 4
  • PS/2 Port: Keyboard x 1, Mouse x 1
  • Digital I/O: Supports 8-bit (Programmable)
  • IrDA: One IrDA Tx/Rx header
  • Audio: Mic-in, Line-in, Line-out, CD-in

    Display:
    Supports CRT/LCD Simultaneous display

  • Chipset: AMD Geode LX Integrated
  • Memory: Shared system memory up to 254 MB
  • Resolutions:
    Up to 1920 x 1440 @ 24bpp for CRT
    Up to 1600 x 1200 @ 24bpp for LCD
  • LCD Interface: Up to 24-bit single channel TTL/LVDS TFT LCD
  Ordering Information
  • TF-GENE-5315-B10
    AMD Geode LX800, Fanless, CRT + LVDS/ CRT + TTL, 1CH 24-bit LVDS, EIDE x 1,
    Floppy x 1, CompactFlash x 1, 10/100Base-TX x 2, USB x 4, RS-232 x 4,
    RS-232/422/485 x 1, Mini PCI x 1, +5V DC, 0C ~ 60C
  • TF-GENE-5315-B10-01
    AMD Geode LX800, Fanless, CRT + LVDS/ CRT + TTL, 1CH 18-bit LVDS, EIDE x 1,
    Floppy x 1, CompactFlash x 1, 10/100Base-TX x 2, USB x 4, RS-232 x 4,
    RS-232/422/485 x 1, Mini PCI x 1, +5V DC, 0C ~ 60C
  • TF-GENE-5315W1-B10 (-20C ~ 70C)
    AMD Geode LX800, Fanless, CRT + LVDS/ CRT + TTL, 1CH 24-bit LVDS, EIDE x 1,
    Floppy x 1, CompactFlash x 1, 10/100Base-TX x 2, USB x 4, RS-232 x 4,
    RS-232/422/485 x 1, Mini PCI x 1, +5V DC, -20C ~ 70C
  • TF-GENE-5315W1-B10-01 (-20C ~ 70C)
    AMD Geode LX800, Fanless, CRT + LVDS/ CRT + TTL, 1CH 18-bit LVDS, EIDE x 1,
    Floppy x 1, CompactFlash x 1, 10/100Base-TX x 2, USB x 4, RS-232 x 4,
    RS-232/422/485 x 1, Mini PCI x 1, +5V DC, -20C ~ 70C

Optional Accessories

  • 1702200205 -- Conversion Cable for ATX Power Supply, Length 20cm
  • 1709140181 -- Audio Cable, Length 18cm
  • 1709100208 -- USB Cable, Length 20cm
  • 1701100206 -- COM Port Cable, 9P DB Male, Length 20cm
  • 1701260201 -- Parallel Port Cable, Length 20cm
  • 1701340600 -- Floppy Cable, Length 60cm
