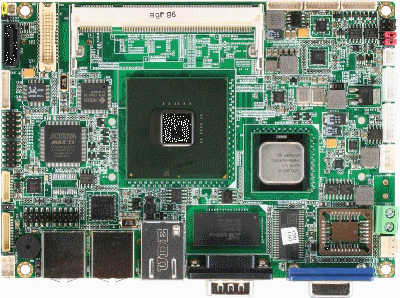

Click para visualizar melhor

GENE-U15B
3.5" SubCompact Board with
Intel Atom Z5X0P Processor

Datasheet
GENE-U15B

    Features
  • Intel Atom Z530P/Z510P Processor
  • Intel System Controller Hub US15WP
  • DDR2 400/533 SODIMM, Max. 2 GB
  • Gigabit Ethernet x 1
  • CRT, 24-bit Single Channel LCD
  • 2CH HD Audio
  • SATA 3.0Gb/s x 1, Onboard SSD Up To 4GB
  • USB2.0 x 6, COM x 4, 8-Bit Digital I/O
  • Onboard 4/5/8-wire Resistive Touch Screen Controller
  • Mini Card x 1
  • +12V or +5V (Optional) Only Operation
    Specifications
    System

  • Form Factor: 3.5"
  • Processor: Intel Atom Z530P 1.6GHz, Z510P 1.1GHz
  • System Memory: 200-pin DDR2 SODIMM x 1, Max. 2 GB (DDR2 400/533)
  • Chipset: Intel System Controller Hub US15WP
  • I/O Chipset: SMSC SCH3114-NU
  • Ethernet: Intel 82574L 10/100/1000Base-TX, RJ-45 x 1
  • BIOS: Award, PLCC Type, 1MB ROM
  • Wake on LAN: Yes
  • Watchdog Timer: Generates a time-out system reset
  • H/W Status Monitoring:
    Supports power supply voltages and temperature monitoring
  • Expansion Interface: Mini Card x 1, LPC bus
  • Battery: Lithium battery
  • Power Requirement: +12V or +5V (optional), AT/ATX
  • Power Consumption (Typical):
    Intel Atom Z510, DDR2 667 2GB = 0.71A @ +12V
  • Board Size: 5.75"(L) x 4"(W) (146mm x 101.6mm)
  • Gross Weight: 0.88lb (0.4kg)
  • Operating Temperature: 32F ~ 140F (0C ~ 60C)
  • Storage Temperature: -40F ~ 176F (-40C ~ 80C)
  • Operating Humidity: 0% ~ 90% relative humidity, non-condensing
  • MTBF (Hours): 700,000

    I/O

  • Storage: SATA 3.0Gb/s x 1, Onboard SST SSD up to 4GB
  • Serial Port: RS-232 x 3, RS-232/422/485 (auto flow) x 1
  • Universal Serial Bus: USB2.0 x 6
  • PS/2 Port: Keyboard x 1, Mouse x 1
  • Digital I/O: Supports 8-bit (Programmable)
  • Audio: Line-in, Line-out, Mic-in

          Display: Supports CRT/LCD simultaneous/ dual view displays

  • Chipset: Intel Atom Z5x0P integrated
  • Memory: Shared system memory up to 256MB
  • Resolutions:
    Up to 1280x1024 for CRT
    Up to 1366x768 for LCD
  • LCD Interface: Up to 24-bit single channel LVDS
  Ordering Information
  • TF-GENE-U15B-A10
    Intel Atom Z530, Fanless, CRT + LVDS, 1CH 18/24-bit LVDS, SATA x 1, 4G SSD x 1,
    Gigabit Ethernet x 1, USB x 6, RS-232 x 3, RS-232/422/485 x 1, Mini Card x 1,
    +12V/ AT/ATX, 0C ~ 60C
  • TF-GENE-U15B-A10-01
    Intel Atom Z510, Fanless, CRT + LVDS, 1CH 18/24-bit LVDS, SATA x 1, 4G SSD x 1,
    Gigabit Ethernet x 1, USB x 6, RS-232 x 3, RS-232/422/485 x 1, Mini Card x 1,
    +12V/ AT/ATX, 0C ~ 60C
  • TF-GENE-U15B-A10-02
    Intel Atom Z530, Fanless, CRT + LVDS, 1CH 18/24-bit LVDS, SATA x 1,
    Gigabit Ethernet x 1, USB x 6, RS-232 x 3, RS-232/422/485 x 1, Mini Card x 1,
    +12V/ AT/ATX, 0C ~ 60C
  • TF-GENE-U15B-A10-03
    Intel Atom Z510, Fanless, CRT + LVDS, 1CH 18/24-bit LVDS, SATA x 1,
    Gigabit Ethernet x 1, USB x 6, RS-232 x 3, RS-232/422/485 x 1, Mini Card x 1,
    +12V/ AT/ATX, 0C ~ 60C
Optional Accessories
  • 1709100208 -- USB Cable, Length 20cm
  • 1701090150 -- COM Port Cable, Length 15cm
  • 1709100254 -- Audio Cable, Length 25cm
  • 1709070500 -- SATA Cable, Length 50cm
  • 1702002010 -- Big Single row 4-Pin Power Input Cable for +12V Input, Length 10cm
  • 1702150155 -- Power Cable for 2.5" SATA Hard Disk, Length 15cm
  • 170204010P -- Big Single row 4-Pin Power Input Cable for +5V Input, Length 10cm
