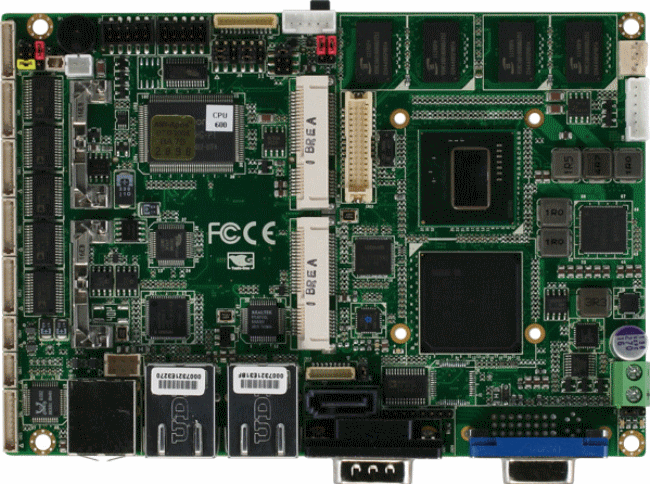

GENE-TC05
3.5" SubCompact Board with
Intel Atom E680/E620/E620T
Processor

Datasheet
GENE-TC05

    Features
  • Intel Atom E680/E620/E620T Processor
  • Intel EG20T PCH
  • Onboard DDR2 667/800 Memory, 1GB
  • Gigabit Ethernet x 2, RJ-45 x 2
  • VGA or DVI (Optional), 24-bit Single Channel LVDS LCD
  • 2CH HD Audio
  • SATA 3.0Gb/s x 1, CFast x 1
  • CAN Bus x 1, USB2.0 x 4, COM x 6, 8-bit Digital I/O
  • Onboard 4/5/8-wire Resistive Touch Screen Controller
  • Mini Card x 2
  • +12V Only Operation
    Specifications
    System

  • Form Factor: 3.5"
  • Processor: Intel Atom E680 1.6GHz/ E620 600MHz/ E620T 600MHz
  • System Memory: Onboard DDR2 667/800 Memory, 1GB
  • Chipset: Intel EG20T PCH
  • I/O Chipset:Nuvoton W82627DHG-P, Fintek F81216DG
  • Ethernet: Realtek RTL8211CL & IntelR 82574L, 10/100/1000Base-TX, RJ-45 x 2
  • BIOS: AMI BIOS - 2MB SPI Flash
  • Wake on LAN: Yes
  • Watchdog Timer: Generates a time-out system reset
  • H/W Status Monitoring:
    Supports power supply voltages and temperature monitoring
  • Expansion Interface: Mini Card x 2 (with one SIM slot), LPC
  • Battery: Lithium battery
  • Power Requirement: +12V
  • Power Consumption (Typical):
    Intel Atom E680, DDR2 1GB = 0.78A @ +12V
  • Board Size: 5.75" x 4" (146mm x 101.6mm)
  • Gross Weight: 0.88 lb (0.4kg)
  • Operating Temperature: 32F ~ 140F (0C ~ 60C),
    -40F ~ 185F (-40C ~ 85C) for WiTAS 2
  • Storage Temperature: -40F ~ 185F (-40C ~ 85C)
  • Operating Humidity: 0% ~ 90% relative humidity, non-condensing
  • MTBF (Hours): 67,000

    I/O

  • Storage: SATA 3.0Gb/s x 1, CFast? x 1
  • Serial Port: RS-232 x 5, RS-232/422/485(auto flow) x 1
  • CAN Bus: Supports CAN Protocol Version 2.0B, bit rate up to 1M-bit/sec.
  • USB: USB2.0 x 4
  • PS/2 Port: Keyboard x 1, Mouse x 1
  • Digital I/O: Supports 8-bit (Programmable)
  • Audio: Line-in, Line-out, Mic-in
  • Touch Screen: Support 4/5/8-wire Resistive Touch Screen

          Display: Supports CRT/LCD, DVI/LCD (optional) simultaneous / dual view

  • Chipset: Intel Atom E680/E620/E620T integrated
  • Memory: Shared system memory up to 512MB
  • Resolutions:
    Up to 1280x1024 for CRT, DVI
    Up to 1280x768 for LCD
  • LCD Interface: Up to 24-bit single channel LVDS
  Ordering Information
  • TF-GENE-TC05-A10
    Intel Atom E680, Fanless, CRT + LVDS, 1CH 18/24-bit LVDS, SATA x 1, CFast x 1,
    GbE x 2, USB x 4, RS-232 x 5, RS-232/422/485 x 1, CAN Bus x 1, Mini Card x 2,
    +12V, AT/ATX, 0C ~ 60C
  • TF-GENE-TC05-A10-01
    Intel Atom E620T, Fanless, CRT + LVDS, 1CH 18/24-bit LVDS, SATA x 1, CFast x 1,
    GbE x 2, USB x 4, RS-232 x 5, RS-232/422/485 x 1, CAN Bus x 1, Mini Card x 2,
    +12V, AT/ATX, 0C ~ 60C
  • TF-GENE-TC05W2-A10-01
    Intel Atom E620T, Fanless, CRT + LVDS, 1CH 18/24-bit LVDS, SATA x 1, CFast x 1,
    GbE x 2, USB x 4, RS-232 x 5, RS-232/422/485 x 1, CAN Bus x 1, Mini Card x 2,
    +12V, AT/ATX,
    WiTAS2 (-40C ~ 85C)
Optional Accessories
  • 1700050207 -- USB Cable, Length 20cm
  • 1701090150 -- COM Port Cable, Length 15cm
  • 1709100254 -- Audio Cable, Length 25cm
  • 1702150155 -- Power Cable for 2.5" SATA Hard Disk, Length 15cm
  • 1702002010 -- Big Single Row 4-pin Power Input Cable for +12V Input, Length 10cm
  • 1709070500 -- SATA Cable, Length 50cm
  • 1700060157 -- Keyboard/Mouse Cable

Packing List

  • Product CD
  • GENE-TC05 With Passive Heatsink
