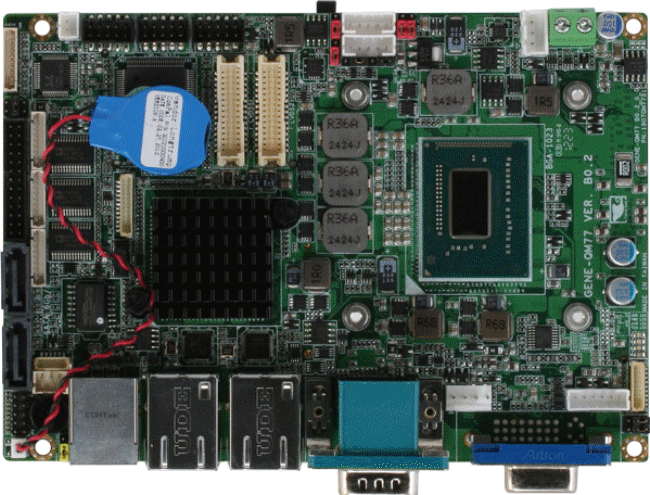

GENE-QM77 Rev.B
3.5" SubCompact Board with
Onboard
Intel Core
i7-3555LE / Celeron 847E
Processor
|
|
|
Datasheets
GENE-QM77 Rev.B |
Features
- Onboard Intel Core i7-3555LE/ Celeron 847E Processor
- Intel QM77/HM76
- SODIMM DDR3 1333/1600, Max. 8 GB
- Gigabit Ethernet x 2, RJ-45 x 2
- CRT or DVI (Optional), 18/24-bit Dual-Channel LVDS LCD x 2, HDMI
- 2CH HD Audio
- SATA 6.0Gb/s x 2 (Optional RAID), CFast x 1
- USB3.0 x 2, USB2.0 x 6, COM x 4, 8-bit Digital I/O
- Mini Card x 1
- +12V Only Operation
- Supports iAMT with Intel QM77
- Onboard 4/5/8-wire Resistive Touch Screen Controller
- AAEON Hi-Safe/Hi-Manager SDK/Utility Supported
- mSATA x 1 (Optional, Would Replace Mini Card Interface)
|
Specifications
Form Factor:
3.5"
Processor:
Onboard Intel Core i7-3555LE/ Celeron 847E Processor
System Memory:
204-pin SODIMM DDR3, Max. 8 GB x 1
Chipset:
Intel QM77/HM76
I/O Chipset:
ITE IT8728
Ethernet:
Intel 82579LM & Realtek RTL-8111E, 10/100/1000Base-TX, RJ-45 x 2
BIOS:
AMI BIOS - 16MB SPI Flash
Wake on LAN:
Yes
Watchdog Timer:
Generates a time-out system reset
H/W Status Monitoring:
Supports power supply voltages and temperature monitoring
Expansion Interface:
Mini Card x 1, LPC
Trusted Platform Module (TPM):
Infineon SLB 9635TT 1.2
Battery:
Lithium battery
Power Requirement:
+12V, AT/ATX
Power Consumption (Typical):
Intel Core i7-3555LE 2.5 GHz, DDR3 1333 8G = 2.49A @ +12V
Board Size:
5.75" x 4" (146mm x 101.6mm)
Gross Weight:
0.88 lb (0.4 kg)
Operating Temperature:
32°F ~ 140°F (0°C ~ 60°C)
Storage Temperature:
-40°F ~ 176°F (-40°C ~ 80°C)
Operating Humidity:
0% ~ 90% R/H, non-condensing
MTBF (Hours):
—
I/O
Storage:
SATA 6.0Gb/s x 2, CFast x 1
Serial Port:
RS-232 x 3, RS-232/422/485 (auto flow) x 1
Parallel Port:
SPP/EPP/ECP x 1 (By BIOS setting)
USB:
USB3.0 x 2, USB2.0 x 6
PS/2 Port:
Keyboard x 1, Mouse x 1
Digital I/O:
Supports 8-bit (Programmable)
Audio:
Line-in, Line-out, Mic-in
Touch Screen:
Support 4/5/8-wire resistive touch screen
Display: Supports CRT/LCD, HDMI/LCD simultaneous/ dual view displays
- Chipset:
Intel CPU integrated
- Memory:
Shared system memory up to 512MB
- Resolutions:
Up to 2048 x 1536 for CRT
Up to 1920 x 1200 for LCD, HDMI
- LCD Interface:
Up to 24-bit dual-channel LVDS x 2
- HDMI:
HDMI x 1
- DVI (Optional):
DVI x 1 (optional)
|
Ordering Information
- GENE-QM77-B10
Intel Core i7-3555LE, Intel QM77, FAN, CRT + LVDS/ CRT + HDMI/ LVDS + HDMI/ LVDS + LVDS,
1st LVDS 2CH 18/24-bit, 2nd LVDS 2CH 18/24-bit, SATA x 2, CFast x 1, GbE x 2, USB3.0 x 2,
USB2.0 x 6, RS-232 x 3, RS-232/422/485 x 1, Mini Card x 1, +12V, AT/ATX, 0°C ~ 60°C
- GENE-QM77-B10-01
Intel Core i7-3555LE, Intel QM77, FAN, DVI + LVDS/ DVI + HDMI/ LVDS + HDMI/ LVDS + LVDS,
1st LVDS 2CH 18/24-bit, 2nd LVDS 2CH 18/24-bit, SATA x 2, CFast x 1, GbE x 2, USB3.0 x 2,
USB2.0 x 6, RS-232 x 3, RS-232/422/485 x 1, Mini Card x 1, +12V, AT/ATX, 0°C ~ 60°C
- GENE-QM77-B10-06
Intel Celeron 847E, Intel HM76, FAN, CRT + LVDS/ CRT + HDMI/ LVDS + HDMI/ LVDS + LVDS,
1st LVDS 2CH 18/24-bit, 2nd LVDS 2CH 18/24-bit, SATA x 2, CFast x 1, GbE x 2, USB3.0 x 2,
USB2.0 x 6, RS-232 x 2, RS-232/422/485 x 1, Mini Card x 1, +12V, AT/ATX, 0°C ~ 60°C
Optional Accessories
- 1709100208 -- USB Cable, Length 20cm
- 1701090150 -- COM Port Cable, Length 15cm
- 1709100254 -- Audio Cable, Length 25cm
- 1702150155 -- Power Cable for 2.5" SATA Hard Disk, Length 15cm
- 1709070500 -- SATA Cable, Length 50cm
- 1702002010 -- Big Single Row 4-pin Power Input Cable for +12V Input, Length 10cm
Packing List
- Product DVD
- GENE-QM77 Rev. B with Active Cooler
|
|
