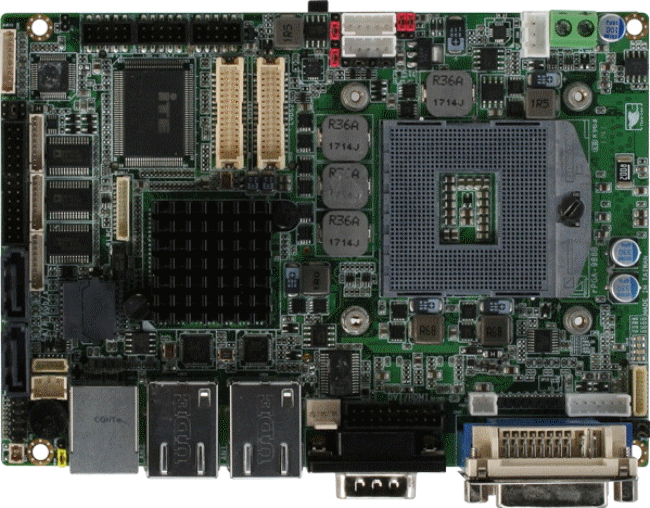

GENE-QM77 Rev.A
3.5" SubCompact Board with
Intel 3rd Generation Core
i7/i5/i3 Mobile Processor




Datasheets
GENE-QM77 Rev.A

    Features
  • Intel 3rd Generation Core i7/i5/i3 Mobile Processor
  • Intel QM77/HM76
  • SODIMM DDR3 1333/1600, Max. 8 GB
  • Gigabit Ethernet x 2, RJ-45 x 2
  • CRT, 18/24-bit Dual-Channel LVDS LCD x 2, DVI
  • 2CH HD Audio
  • SATA 6.0Gb/s x 2 (Optional RAID), CFast x 1
  • USB3.0 x 2, USB2.0 x 6, COM x 4, 8-bit Digital I/O
  • Mini Card x 1
  • +12V Only Operation
  • Supports iAMT with Intel QM77
  • Onboard 4/5/8-wire Resistive Touch Screen Controller
  • AAEON Hi-Safe/Hi-Manager SDK/Utility Supported
  • mSATA x 1 (Optional, Would Replace Mini Card Interface)
    Specifications
    System

  • Form Factor: 3.5"
  • Processor: Intel 3rd Generation Core i7/i5/i3 Mobile processor
  • System Memory: 204-pin DDR3 SODIMM x1, Max. 8 GB
  • Chipset: Intel QM77/HM76
  • I/O Chipset: ITE IT8728
  • Ethernet: Intel 82579LM & Realtek RTL-8111E, 10/100/1000Base-TX, RJ-45 x 2
  • BIOS: AMI BIOS - 16MB SPI Flash
  • Wake on LAN: Yes
  • Watchdog Timer: Generates a time-out system reset
  • H/W Status Monitoring:
    Supports power supply voltages and temperature monitoring
  • Expansion Interface: Mini Card x 1, LPC
  • Trusted Platform Module (TPM): Infineon SLB 9635TT 1.2
  • Battery: Lithium battery
  • Power Requirement: +12V, AT/ATX
  • Power Consumption (Typical):
    Intel Core i7-3610QE 2.3 GHz, DDR3 1333 8G = 5.2A @ +12V
    Intel Core i5-3610ME 2.7 GHz, DDR3 1333 8G = 3.47A @ +12V
  • Board Size: 5.75" x 4" (146mm x 101.6mm)
  • Gross Weight: 0.88lb (0.4kg)
  • Operating Temperature: 32°F ~ 140°F (0°C ~ 60°C)
  • Storage Temperature: -40°F ~ 176°F (-40°C ~ 80°C)
  • Operating Humidity: 0% ~ 90% R/H, non-condensing
  • MTBF (Hours): 51,800

    I/O

  • Storage: SATA 6.0Gb/s x 2, CFast x 1
  • Serial Port: RS-232 x 3, RS-232/422/485 (auto flow) x 1
  • Parallel Port: SPP/EPP/ECP x 1 (By BIOS setting)
  • USB: USB3.0 x 2, USB2.0 x 6
  • PS/2 Port: Keyboard x 1, Mouse x 1
  • Digital I/O: Supports 8-bit (Programmable)
  • Audio: Line-in, Line-out, Mic-in
  • Touch Screen: Supports 4/5/8-wire resistive touch screen

          Display: Supports CRT/LCD, DVI/LCD simultaneous/ dual view displays

  • Chipset: Intel CPU integrated
  • Memory: Shared system memory up to 512MB
  • Resolutions:
    Up to 2048 x 1536 for CRT
    Up to 1920 x 1200 for LCD, DVI
  • LCD Interface: Up to 24-bit dual-channel LVDS x 2
  • DVI: DVI x 1
  Ordering Information
  • TF-GENE-QM77-A10
    Socket, Intel QM77, FAN, CRT + LVDS/ CRT + DVI/ LVDS + DVI/ LVDS + LVDS,
    1st LVDS 2CH 18/24-bit, 2nd LVDS 2CH 18/24-bit, SATA x 2, CFast x 1, GbE x 2, USB3.0 x 2,
    USB2.0 x 6, RS-232 x 3, RS-232/422/485 x 1, Mini Card x 1, +12V, AT/ATX, 0°C ~ 60°C
  • TF-GENE-QM77-A10-06
    Socket, Intel HM76, FAN, CRT + LVDS/ CRT + DVI/ LVDS + DVI/ LVDS + LVDS,
    1st LVDS 2CH 18/24-bit, 2nd LVDS 2CH 18/24-bit, SATA x 2, CFast x 1, GbE x 2, USB3.0 x 2,
    USB2.0 x 6, RS-232 x 3, RS-232/422/485 x 1, Mini Card x 1, +12V, AT/ATX, 0°C ~ 60°C

Optional Accessories

  • 1709100208 -- USB Cable, Length 20cm
  • 1701090150 -- COM Port Cable, Length 15cm
  • 1709100254 -- Audio Cable, Length 25cm
  • 1702150155 -- Power Cable for 2.5" SATA Hard Disk, Length 15cm
  • 1709070500 -- SATA Cable, Length 50cm
  • 1702002010 -- Big Single Row 4-pin Power Input Cable for +12V Input, Length 10cm

Packing List

  • Cooler
  • Product DVD
  • GENE-QM77 Rev. A
