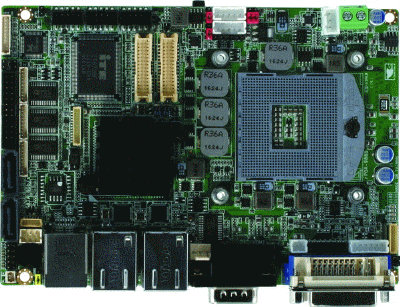

GENE-QM67
3.5" SubCompact Board with Intel
2nd Generation Core i5 Mobile/
Celeron (32nm) Processor




Datasheets
GENE-QM67

    Features
  • Intel® 2nd Generation Core™ i5 Mobile/ Celeron® (32nm)Processor
  • Intel® QM67
  • SODIMM DDR3 1066/1333, Max. 8 GB
  • Gigabit Ethernet x 2
  • CRT, 18/24-bit Dual-Channel LVDS LCD x 2, DVI
  • 2CH HD Audio
  • SATA 6.0Gb/s x 2 (Optional RAID), CFast™ x 1
  • USB2.0 x 8, COM x 4, 8-bit Digital I/O
  • Mini Card x 1
  • +12V Only Operation
  • Supports iAMT with Intel® QM67
    Specifications
    System

  • Form Factor: 3.5"
  • Processor: Intel® 2nd Generation Core™ i5/ Celeron® (32nm)
  • System Memory: 204-pin DDR3 SODIMM x1, Max. 8 GB
  • Chipset: Intel® QM67
  • I/O Chipset: ITE IT8728
  • Ethernet: Intel® 82579LM & Realtek RTL-8111E, 10/100/1000Base-TX, RJ-45 x 2
  • BIOS: AMI BIOS - 8MB SPI Flash
  • Wake on LAN: Yes
  • Watchdog Timer: Generates a time-out system reset
  • H/W Status Monitoring:
    Supports power supply voltages and temperature monitoring
  • Expansion Interface: Mini Card x 1, LPC
  • Trusted Platform Module (TPM): Infineon SLB 9635TT 1.2
  • Battery: Lithium battery
  • Power Requirement: +12V, AT/ATX
  • Board Size: 5.75" x 4" (146mm x 101.6mm)
  • Gross Weight: 0.88 lb (0.4kg)
  • Operating Temperature: 32°F ~ 140°F (0°C ~ 60°C)
  • Storage Temperature: -40°F ~ 176°F (-40°C ~ 80°C)
  • Operating Humidity: 0% ~ 90% R/H, non-condensing

    I/O

  • Storage: SATA 6.0Gb/s x 2, CFast™ x 1
  • Serial Port: RS-232 x 3, RS-232/422/485 (auto flow) x 1
  • Universal Serial Bus: USB2.0 x 8
  • PS/2 Port: Keyboard x 1, Mouse x 1
  • Digital I/O: Supports 8-bit (Programmable)
  • Audio: Line-in, Line-out, Mic-in

          Display: Supports CRT/LCD, DVI/LCD simultaneous/ dual view displays

  • Chipset: Intel® QM67 integrated
  • Memory: Shared system memory up to 512MB
  • Resolutions:
    Up to 2048 x 1536 for CRT
    Up to 1920x1200 for LCD, DVI
  • LCD Interface: Up to 24-bit dual-channel LVDS x 2
  • DVI: DVI x 1
  Ordering Information
  • TF-GENE-QM67-A10
    Socket CPU, FAN, SATA3 x 2, CFast™ x 1, mSATA (Optional), GbE x 2, 8 USB,
    3 RS-232, 1 RS-232/422/485, Mini Card x 1


Optional Accessories

  • 1709100208 -- USB Cable, Length 20cm
  • 1701090150 -- COM Port Cable, Length 15cm
  • 1709100254 -- Audio Cable, Length 25cm
  • 1702150155 -- Power Cable for 2.5" SATA Hard Disk, Length 15cm
  • 1709070500 -- SATA Cable, Length 50cm
  • 1702002010 -- Big Single row 4-Pin Power Input Cable for +12V Input, Length 10cm
