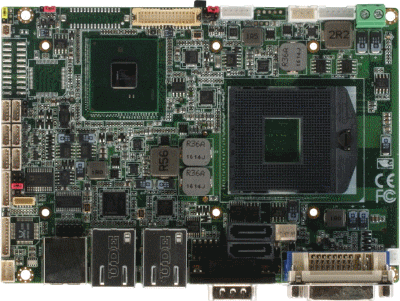

GENE-QM57
3.5" SubCompact Board with
Intel Core i7/ i5 Mobile/
Celeron (32nm) Processor




Datasheets
GENE-QM57

    Features
  • Intel Core i7/ i5 Mobile/ Celeron (32nm) Processor
  • Intel QM57
  • SODIMM DDR3 800/1066 Memory, Max. 4 GB
  • Gigabit Ethernet x 2
  • CRT, 18/24-bit Dual-channel LVDS LCD, DVI
  • 2CH HD Audio
  • SATA 3.0Gb/s x 2 (Optional RAID), CFast x 1
  • USB2.0 x 8, COM x 2, 8-bit Digital I/O
  • Expansion: Mini Card x 1
  • +12V Only Operation
  • Supports iAMT 6.0 with Intel QM57
    Specifications
    System

  • Form Factor: 3.5"
  • Processor: Intel Core i7/i5/Celeron (32nm) up to 2.66GHz
  • System Memory: 204-pin DDR3 SODIMM x1, Max. 4 GB
  • Chipset: Intel QM57
  • I/O Chipset: ITE IT8712
  • Ethernet: Intel 82577LM & 82574L, 10/100/1000Base-TX, RJ-45 x 2
  • BIOS: AMI BIOS - 8MB SPI Flash
  • Wake on LAN: Yes
  • Watchdog Timer: Generates a time-out system reset
  • H/W Status Monitoring:
    Supports power supply voltages and temperature monitoring
  • Expansion Interface: Mini Card x 1, LPC
  • Trusted Platform Module (TPM): Infineon SLB 9635TT 1.2
  • Battery: Lithium battery
  • Power Requirement: +12V, AT/ATX
  • Power Consumption(Typical):
    Intel Core i7 620M @ 2.66GHz, DDR3 4G 1066MHz = 3.64A @ +12V
  • Board Size: 5.75" x 4" (146mm x 101.6mm)
  • Gross Weight: 0.88 lb (0.4 kg)
  • Operating Temperature: 32F ~ 140F (0C ~ 60C)
  • Storage Temperature: -40F ~ 176F (-40C ~ 80C)
  • Operating Humidity: 0% ~ 90% R/H, non-condensing
  • MTBF (Hours): 69,000

    I/O

  • Storage: SATA 3.0Gb/s x 2, CFast x 1
  • Serial Port: RS-232 x 1, RS-232/422/485 (auto flow) x 1
  • Universal Serial Bus: USB2.0 x 8
  • PS/2 Port: Keyboard x 1, Mouse x 1
  • Digital I/O: Supports 8-bit (Programmable)
  • Audio: Line-in, Line-out, Mic-in

          Display: Supports CRT/LCD, DVI/LCD simultaneous/ dual view displays

  • Chipset: Intel QM57 integrated
  • Memory: Shared system memory up to 512MB
  • Resolutions:
    Up to 1920 x 1440 for CRT
    Up to 1920 x 1200 for LCD, DVI
  • LCD Interface: Up to 24-bit dual-channel LVDS
  • DVI: DVI x 1
  Ordering Information
  • TF-GENE-QM57-A10
    Socket FAN, CRT + LVDS/ DVI+LVDS/ CRT+DVI, 2CH 18/24-bit LVDS, SATA x 2,
    CFast x 1, Gigabit Ethernet x 2, USB x 8, RS-232 x 1, RS-232/422/485 x 1,
    Mini Card x 1, +12V/ AT/ATX, 0C ~ 60C
  • TF-GENE-QM57-A10-01
    Socket FAN, CRT + LVDS, 2CH 18/24-bit LVDS, SATA x 2,
    CFast x 1, Gigabit Ethernet x 2, USB x 8, RS-232 x 1, RS-232/422/485 x 1,
    Mini Card x 1, +12V/ AT/ATX, 0C ~ 60C
Optional Accessories
  • 1700050207 -- USB Cable, Length 20cm
  • 1701090150 -- COM Port Cable, Length 15cm
  • 1709100254 -- Audio Cable, Length 25cm
  • 1702150155 -- Power Cable for 2.5" SATA Hard Disk, Length 15cm
  • 1709070500 -- SATA Cable, Length 50cm
  • 1702002010 -- Big 4P Power Input Cable for +12V Input, Length 10cm
  • 1700060157 -- Keyboard/ Mouse Cable
