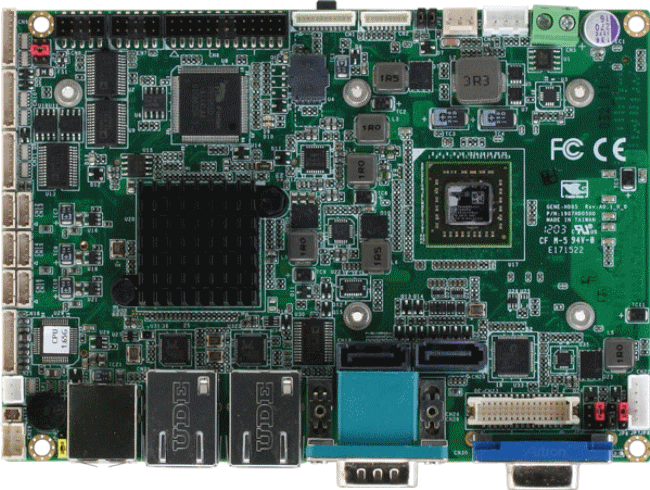

GENE-HD05
3.5" SubCompact Board with
AMD G-Series T56N/T40E/T40R
Processor

Datasheet
GENE-HD05

    Features
  • Onboard AMD G-Series T56N/T40E/T40R Processor
  • AMD A50M
  • SODIMM DDR3 1066/1333(T56N) up to 4GB
  • Gigabit Ethernet x 2, RJ-45 x 2
  • CRT, 18/24/36/48-bit LVDS, HDMI
  • 2CH HD Audio
  • SATA 3.0Gb/s x 2, CFast x 1, mSATA x 1 (Config. by BIOS)
  • USB2.0 x 8, COM x 4, Parallel x 1, 8-bit Digital I/O
  • Onboard 4/5-wire Resistive Touch Screen Controller
  • Mini Card x 1 (Config. by BIOS)
  • +12V Only Operation
  • Onboard Trusted Platform Module (Optional)
  • AAEON Hi-Safe SDK/Utility Supported
    Specifications
    System

  • Form Factor: 3.5"
  • Processor: AMD G-Series T56N/T40E/T40R processor
  • System Memory: SODIMM DDR3 1066/1333(T56N) up to 4GB
  • Chipset: AMD A50M
  • I/O Chipset: Fintek F81886DG
  • Ethernet: Realtek 8111E for 10/100/1000Base-TX, RJ-45 x 2
  • BIOS: AMI Plug & Play SPI BIOS - 4MB Flash
  • Wake on LAN: Yes
  • Watchdog Timer: Generates a time-out system reset
  • H/W Status Monitoring:
    Supports power supply voltages and temperature monitoring
  • Expansion Interface: Mini Card x 1 (Config. by BIOS), LPC bus
  • Trusted Platform Module (TPM): Infineon SLB 9635 TT 1.2 (Optional)
  • Battery: Lithium battery
  • Power Requirement: +12V or AT/ATX
  • Power Consumption (Typical):
    AMD G-Series T56N, DDR3 4GB = 1.73A @ +12V
  • Board Size: 5.75"(L) x 4"(W) (146mm x 101.6mm)
  • Gross Weight: 0.88lb (0.4kg)
  • Operating Temperature: 32F ~ 140F (0C ~ 60C)
  • Storage Temperature: -40F ~ 176F (-40C ~ 80C)
  • Operating Humidity: 0% ~ 90% relative humidity, non-condensing
  • MTBF (Hours):

    I/O

  • Storage: SATA 3.0Gb/s x 2, CFast x 1
    mSATA x 1 (co-lay with Mini Card (Config. by BIOS)
  • Serial Port: RS-232 x 3, RS-232/422/485 (auto flow) x 1
  • Parallel Port: SPP/EPP/ECP x 1
  • USB: USB2.0 x 8
  • PS/2 Port: PS/2 Keyboard and Mouse x 1
  • Digital I/O: 8-bit Digital I/O (Programmable, 4-in/4-out)
  • Audio: Line-in, Line-out, Mic-in
  • Touch Screen: Supports 4/5-wire resistive touch screen

          Display: Supports CRT/LCD or CRT/HDMI simultaneous/ dual view display

  • Chipset: AMD T56N/T40E/T40R processor
  • Memory: Shared system memory up to 384MB
  • Resolutions:
    CRT: Up to 2560 x 1600 (T56N), up to 1920 x 1200 (T40E/T40R)
    LVDS: 18/24/36/48-bit up to 1920 x 1200
    HDMI: Up to 1920 x 1200
  • LCD Interface: 18/24/36/48-bit LVDS
  • HDMI: HDMI x 1
  Ordering Information
  • GENE-HD05-A10
    AMD T56N, Fan, CRT+LVDS / LVDS+HDMI / HDMI+CRT, 2CH 18/24-bit LVDS,
    SATA x 2, CFast x 1, Touch x 1, GbE x 2, USB x 8, RS-232 x 3, RS-232/422/485 x 1,
    Mini Card x 1, +12V, AT/ATX, 0C ~ 60C
  • GENE-HD05-A10-01
    AMD T40E, Fanless, CRT+LVDS / LVDS+HDMI / HDMI+CRT, 2CH 18/24-bit LVDS,
    SATA x 2, CFast x 1, Touch x 1, GbE x 2, USB x 8, RS-232 x 3, RS-232/422/485 x 1,
    Mini Card x 1, +12V, AT/ATX, 0C ~ 60C
  • GENE-HD05-A10-02
    AMD T40R, Fanless, CRT+LVDS / LVDS+HDMI / HDMI+CRT, 2CH 18/24-bit LVDS,
    SATA x 2, CFast x 1, GbE x 2, USB x 8, RS-232 x 3, RS-232/422/485 x 1,
    Mini Card x 1, +12V, AT/ATX, 0C ~ 60C
Optional Accessories
  • 1700050207 -- USB Cable, Length 20cm
  • 1701090150 -- COM Port Cable, Length 15cm
  • 1709100254 -- Audio Cable, Length 25cm
  • 1709070500 -- SATA Cable, Length 50cm
  • 1701260201 -- Parallel Port Cable, Length 20cm
  • 1702002010 -- Big Single Row 4-pin Power Input Cable for +12V Input, Length 10cm
  • 1702150155 -- Power Cable for 2.5" SATA Hard Disk, Length 15cm
  • 170220020B -- Conversion Cable ATX Power Supply, Length 20cm
  • 1700060157 -- KB/Mouse Cable

Packing List

  • Product DVD
  • GENE-HD05 with Active Cooler (T56N Version) or with Passive Heatsink (T40E/T40R Version)
