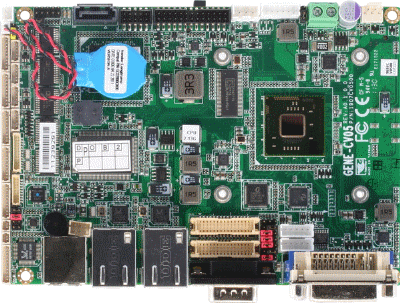

GENE-CV05
3.5" SubCompact Board with
Intel Atom D2700/N2800/N2600
Processor

Datasheet
GENE-CV05

    Features
  • Intel Atom D2700/N2800/N2600 Processor
  • Intel NM10
  • DDR3 800/1066 SODIMM, Max. 4 GB For Intel Atom D2700/N2800 and Max. 2 GB For Intel® Atom™ N2600
  • Gigabit Ethernet x 2
  • CRT, DVI, 18/24-bit Single Channel LVDS LCD + 18/24-bit Dual-Channel LVDS LCD For Intel Atom D2700
    CRT, DVI, 18-bit Single Channel LVDS LCD + 18/24-bit Dual-Channel LVDS LCD For Intel Atom N2800/ N2600
  • 2CH HD Audio + 2W Amplifier
  • SATA 3.0Gb/s x 1, CFast™ x 1
  • USB2.0 x 6, COM x 6, 8-Bit Digital I/O, Parallel x 1 (Optional)
  • Onboard 4/5/8-wire Resistive Touch Screen Controller
  • Mini Card x 1
  • +12V Only Operation
  • Onboard Trusted Platform Module (Optional)
  • mSATA x 1 (Optional, Would Replace Mini Card Interface)
    Specifications
    System

  • Form Factor: 3.5"
  • Processor: Intel Atom D2700/N2800/N2600 Processor
  • System Memory: 204-pin DDR3 SODIMM x 1,
    Max. 4 GB (DDR3 800/1066) for Intel Atom D2700/N2800
    Max. 2 GB (DDR3 800/1066) for Intel Atom N2600
  • Chipset: Intel NM10
  • I/O Chipset: ITE 8783
  • Ethernet: Realtek RTL8111E, 10/100/1000Base-TX, RJ-45 x 2
  • BIOS: AMI Plug & Play SPI BIOS - 32MB Flash
  • Wake on LAN: Yes
  • Watchdog Timer: Generates a time-out system reset
  • H/W Status Monitoring:
    Supports power supply voltages and temperature monitoring
  • Expansion Interface: Mini Card x 1, LPC bus
  • Trusted Platform Module (TPM): Infineon SLB 9635 TT 1.2 (Optional)
  • Battery: Lithium battery
  • Power Requirement: +12V AT/ATX
  • Power Consumption (Typical):
    Intel Atom D2700, DDR3 1333 4GB , 1.3A @ +12V
  • Board Size: 5.75"(L) x 4"(W) (146mm x 101.6mm)
  • Gross Weight: 0.88lb (0.4kg)
  • Operating Temperature: 32°F~140°F (0°C ~ 60°C)
  • Storage Temperature: -40°F ~ 176°F (-40°C ~ 80°C)
  • Operating Humidity: 0% ~ 90% relative humidity, non-condensing

    I/O

  • Storage: SATA 3.0Gb/s x 1, CFast™ x 1
  • Serial Port: RS-232 x 5, RS-232/422/485 (auto flow) x 1
  • Parallel Port: SPP/EPP/ECP x 1 (optional)
  • Universal Serial Bus: USB2.0 x 6
  • PS/2 Port: Keyboard x 1, Mouse x 1
  • Digital I/O: Supports 8-bit (Programmable)
  • Audio: Line-in, Line-out, Mic-in
  • Touch Screen: Supports 4/5/8-wire resistive touch screen

          Display: Supports CRT/LCD, DVI/LCD simultaneous/ dual view displays

  • Chipset: Intel Atom D2700/ N2800/ N2600 integrated
  • Memory: Shared system memory up to 256MB
  • Resolutions:
    Up to 1920 x 1200 for CRT, DVI
    Up to 1366 x 768 for LCD
  • LCD Interface: Dual LVDS LCDs:
    24-bit Single Channel LVDS LCD + 18/24-bit Dual-channel LVDS LCD for Intel Atom D2700,
    18-bit Single Channel LVDS LCD + 18/24-bit Dual-Channel LVDS LCD for Intel Atom N2800/N2600
  • DVI: DVI x 1, available with 1 active LVDS interface (either 18-bit or 24-bit)
  Ordering Information
  • TF-GENE-CV05-A10
    Intel Atom D2700, FAN, CRT + LVDS (1 or 2)/ CRT + DVI/ LVDS (1 or 2) + DVI/ LVDS1 + LVDS2, 1CH 1st 24-bit LVDS, 2CH 2nd 24-bit LVDS, SATA x 1, CFast x 1,
    Gigabit Ethernet x 2, USB x 6, RS-232 x 5, RS-232/422/485 x 1, Mini Card x 1,
    +12V/ AT/ATX, 0°C ~ 60°C
  • TF-GENE-CV05-A10-01
    Intel Atom N2800, Fanless, CRT + LVDS (1 or 2)/ CRT + DVI/ LVDS (1 or 2) + DVI/ LVDS1 + LVDS2, 1CH 1st 24-bit LVDS, 2CH 2nd 24-bit LVDS, SATA x 1, CFast x 1,
    Gigabit Ethernet x 2, USB x 6, RS-232 x 5, RS-232/422/485 x 1, Mini Card x 1,
    +12V/ AT/ATX, 0°C ~ 60°C
  • TF-GENE-CV05-A10-02
    Intel Atom N2600, Fanless, CRT + LVDS (1 or 2)/ CRT + DVI/ LVDS (1 or 2) + DVI/ LVDS1 + LVDS2, 1CH 1st 24-bit LVDS, 2CH 2nd 24-bit LVDS, SATA x 1, CFast x 1,
    Gigabit Ethernet x 2, USB x 6, RS-232 x 5, RS-232/422/485 x 1, Mini Card x 1,
    +12V/ AT/ATX, 0°C ~ 60°C
Optional Accessories
  • 1700050207 -- USB Cable, Length 20cm
  • 1701090150 -- COM Port Cable, Length 15cm
  • 1709100254 -- Audio Cable, Length 25cm
  • 1709070500 -- SATA Cable, Length 50cm
  • 1701260200 -- Parallel Port Cable, Length 20cm
  • 1702002010 -- Big Single row 4-Pin Power Input Cable for +12V Input, Length 10cm
  • 1702150155 -- Power Cable for 2.5" SATA Hard Disk, Length 15cm
  • 170220020B -- Conversion Cable ATX Power Supply, Length 20cm
  • 1700060157 -- Keyboard/Mouse Cable
