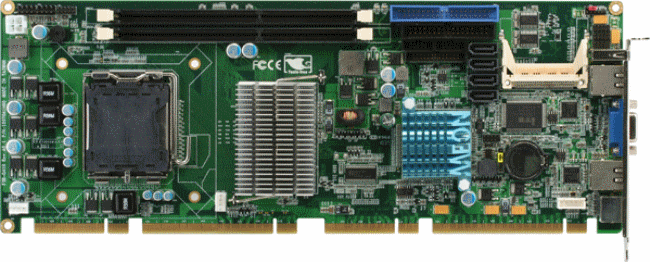

FSB-G41H


Full-Size SBC With
Intel Core 2 Duo / Core 2 Quad
LGA775 Processor

    Features
  • Intel Core 2 Duo/ Core 2 Quad/ Pentium D/ Celeron LGA 775 Processor, FSB 800/1066/1333 MHz
  • Intel G41+ ICH7R
  • 240-Pin Dual-Channel DDR3 800/1066 DIMM Slot x 2 (Up To 4GB, 2GB Double Side DIMM x 2)
  • 10/100/1000Base-TX Ethernet x 2
  • Intel G41 Integrated GMA X4500 Graphic Engine
  • HDAC Daughter Board
  • Onboard SATA 3.0Gb/s x 4 Support RAID 0/1/5/10, IDE x 1, Floppy x 1, CompactFlash? Type 2 x 1
  • COM x 2, USB2.0 x 7, Parallel x 1 ,
  • PCI-Express [x16] x 1, PCI-Express[x4] x 1, PCI x 4
  • ATX 2.1
  • PICMG 1.3

    Introduction

    Specifications

    System


  • Form Factor: PICMG 1.3 Full-size SBC
  • Processor:
    LGA 775 Intel Core 2 Quad/Core 2 Duo/ Pentium D/ Celeron,
    FSB 800/1066/1333 MHz
  • System Memory: 240-pin Dual-channel DDR3 1066/800 DIMM Slot x 2,
    up to 4GB, (2GB DoubleSide DIMM x 2)
  • Chipset: Intel G41+ ICH7R
  • Ethernet: Intel 82574L, 10/100/1000Base-TX x 2, RJ-45 x 2 on the bracket
  • BIOS: Award SPI BIOS - 8Mb ROM
  • Expansion Interface: PCI-Express [x16] x 1 /PCI-Express [x4] x 1/ PCI x 4
  • Watchdog Timer: 1~255 steps, can be set with software on Super I/O
  • RTC: Internal RTC
  • Battery: Lithium Battery
  • Power Requirement: ATX 2.1
  • Operating Temperature: 32F ~ 140F (0C ~ 60C)
  • Board Size: 13.3"(L) x 5"(W) (339mm x 126mm)
  • Gross Weight: 1.2 lb (0.5kg)
  • MTBF (Hours): 60,000
  • Power Consumption(Typical):
    95W, with Intel Core 2 Quad Q9400, 6M Cache, 2.66 GHz, 1333MHz FSB

          I/O: ITE IT8718F

  • Storage:
    IDE slot x 1, SATA 3.0Gb/s x 4 with RAID 0,1,5 and 10,
    CompactFlash Type 2 x 1, Standard Floppy Disk x 1
  • Serial Port:
    COM port x 2:(Internal Pin Header x 2)
    COM 1: RS-232
    COM 2: RS-232/422/485
  • Parallel Port: Supports SPP/EPP/ECP mode
  • Universal Serial Bus: USB2.0 x 7
    (Internal 5x2-pin header x 3 up to 6 USB, USB2.0 type A on the bracket x 1)
  • PS/2 Port: Keyboard x 1, Mouse x 1
  • Audio (Daughter Board): HDAC Daughter board , Mic-in/Line-in/Line-out/CD-in
  • IrDA: Supports IrDA header x 1

          Display

  • VGA Controller: Intel G41 integrated GMA X4500 Graphic Engine
  • Memory: Shared memory up to 256MB
  • Resolution: 2048x1536 @ 75 Hz for CRT
  Ordering Information
  • TF-FSB-G41H-A10-VG
    Socket, DIMM, Fan, VGA, SATA2 x 4, IDE x 1, Floppy x 1, CompactFlash x 1,
    Gigabit Ethernet x 1, USB2.0 x 7, RS-232 x 1, RS-232/422/485 x 1, PCI-E[x16] x 1,
    PCI-E[x4] x 1, PCI x 4, ATX, +12V 0C ~ 60C
  • TF-FSB-G41H-A10-G2
    Socket, DIMM, Fan, VGA, SATA2 x 4, IDE x 1, Floppy x 1, CompactFlash x 1,
    Gigabit Ethernet x 2, USB2.0 x 7, RS-232 x 1, RS-232/422/485 x 1, PCI-E[x16] x 1,
    PCI-E[x4] x 1, PCI x 4, ATX, +12V 0C ~ 60C

          Passive Backplane Options:

  • TF-BP-216QH-P4E8
    Rackmount, PICMG 1.3, 16-slot Backplane, 4 PCI, 4 PCI-E, Four Segments, ATX,
    PICMG 1.3, 4/8/4 (PCI/PCI-E/ PICMG 1.3), ATX
  • TF-BP-214SH-P3E2I6
    Rackmount, PICMG 1.3, 14-slot Backplane, 3 PCI, 2 PCI-E, 6 ISA, Single Segment,
    ATX, PICMG 1.3, 3/2/6/2 (PCI/PCI-E/ISA/PICMG 1.3), ATX
  • TF-BP-208RH-P4E3
    Rackmount, PICMG 1.3, 8-slot Backplane, 4 PCI, 2 PCI-E[x1], 1 PCI-E[x16], Single Segment, ATX, PICMG 1.3, 4/2/1 (PCI/PCI-E [x1]/PCI-E [x16]/ PICMG 1.3), ATX
  • TF-BP-206VH-P4
    Rackmount, PICMG 1.3, 6-slot Backplane, 4 PCI, Single Segment, ATX,
    PICMG 1.3, 4/1 (PCI/ PICMG 1.3), ATX
  • TF-BP-206VH-E4
    Rackmount, PICMG 1.3, 6-slot Backplane, 4 PCI-E, Single Segment, ATX,
    PICMG 1.3, 4/1 (PCI-E/ PICMG 1.3), ATX
  • TF-BP-206SH-P3
    Wallmount, PICMG 1.3, 6-Slot Backplane, 3 PCI, 2 PCI-E, Single Segment, ATX,
    PICMG 1.3, 3/2/1 (PCI/PCI-E/PICMG 1.3), ATX

          Optional Accessories:

  • TF-PER-U01H -- HD Codec Audio Daughter Board
  • 1703030501 -- Supports ATX Power from Backplane to CPU Card
  • 1702030301 -- ATX Power Simulation AT Power Switch Wire
  • 1701400800 -- PATA100 Cable 80cm
  • 1759200161 -- LGA775 CPU Fan
  • 1709070780 -- SATA Cable 78cm
  • 1702043000 -- ATX 12V Extension Cable
  • 1701260307 -- 1 Serial port + 1 Parallel port with Bracket
  • 1701100305 -- 1 Serial port with Bracket
