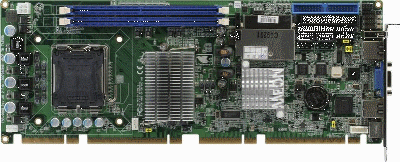

Intel Core 2 Duo/Core 2 Quad LGA775 PICMG 1.3 Full-size Single Board Computer, Modelo FSB-960H

Full-size CPU Cards Micro Industriais
	FSB-960H
Features Introduction Specifications Ordering Information	Intel Core 2 Duo/Core 2 Quad LGA775 PICMG 1.3 Full-size SBC
Features Intel Core™ 2 Duo/Core™ 2 Quad LGA775 CPU, FSB 800/1066/1333 MHz DDRII 800/667 Memory Support up to 4GB Integrated Intel Enhanced Graphics Core, VGA Support 10/100/1000Base-TX Ethernet x 2 (10/100 & GbE Optional) PCI-Express [x16] x 1 and PCI-Express [x4] x 1 Link to Backplane USB 2.0 x 11/ RS-232/422/485 x 1/ RS232 x 1/ Parallel x 1/ IrDA Port x 1 SATA-II Port x 2 (RAID), CompactFlash Type-II Compliance with PICMG 1.3 Intel AMT with Circuit Breaker
Introduction AAEON, a leading Industrial PC manufacturer, announces the debut of a high performance full-size Single Board Computer, the FSB-960H. AAEON has developed this full-size SBC based on the latest Intel Q35 Express chipset and the Intel Core 2 Duo/Quad processors, to fulfill the increasing demands of multi-core processing. The FSB-960H adopts Intel’s dual/quad-core processors at current speeds up to 2.83 GHz with 1066MHz FSB to meet a wide range of performance requirements. In a PICMG 1.3 SHB Express form factor the FSB-960H system host board takes full advantage of the Intel Q35 Express chipset for enhanced system performance and generous expansion capabilities. Considerable bandwidth is available with point-to-point serial PCI Express via 〔x16〕and〔x4〕interfaces. Maximizing the available PCI Express channels offers the greatest flexibility to today’s demanding I/O requirements. Two DIMM slots of dual channel DDR II 800 RAM provide ample memory bus bandwidth for demanding applications. The FSB-960H has been designed for users that require high performance and reliability for critical applications.
Specifications System Form Factor: PICMG1.3 Full-Size SBC Processor: Intel Core™ 2 Duo LGA775 CPU up to 3.00GHz, Intel Core™ 2 Quad LGA775 CPU up to 2.83GHz, FSB 800/1066/1333 MHz System Memory: 240-Pin 1.8V DDR2 DIMM Socket x 2, total up to 4GB Support Dual-Channel DDR2 memory (DDR2 667/800) Chipset: Intel Q35 + Intel ICH9R(ICH9DO) Ethernet: PCI-Express x 1 10/100Mb or 10/100/1000Mb LAN optional, RJ-45 X2, Intel 82566X / 82562V / 82573V/E controller BIOS: Award Plug & Play FWH BIOS – 8Mb ROM IDE Interface: IDE slot x 1 (SATA to IDE) Solid Storage Disk: CompactFlash type II Connector x1 Expansion Interface: PCI x3/ PCI-Express [x4] x 1/ PCI-Express [x16] Connector x 1 Watchdog Timer: 1~255 step, can be set with software on Super I/O RTC: Internal RTC Battery: Lithium Battery Power Requirement: ATX 2.1 Board Size: 13.3" (L) x 4.98" (W) (338.58 mm x 126.39 mm) Gross Weight: 1.2lb (0.5 kg) Operating Temperature: 32^oF ~ 140^oF (0^oC ~ 60^oC) MTBF (Hours): 60,000 Power Consumption (Typical) 90W, with Intel® Core™ 2 Duo CPU E6400 2.13GHz/ FSB 1066 MHz/ 2M L2 Cache I/O: Winbond 83627EHG Storage IDE slot x 1 (SATA to IDE), SATA II x 2, CompactFlash™ Type II x 1 Floppy Drive Interface Standard FDD port x 1, supports up to one floppy device Serial Port COM port x 2: (Internal Pin Header x 2) COM 1: RS-232 COM 2: RS-232/ RS-422/ RS-485, Parallel Port Supports SPP/EPP/ ECP mode Universal Serial Bus USB 2.0 Port on CPU card x 7 5x2 pin header for internal x 3 TYPE-A Connector onboard x 1 USB 2.0 Port to Backplane x 4 Keyboard and Mouse Mini-DIN PS/2 K/B and Mouse connector x 1; internal keyboard pin header x 1 IrDA Supports One IrDA header Audio(Daughter Board) Audio Codec, MIC-in/Line-in/Line-out/CD-in Display: Supports CRT simultaneous display VGA Controller: Enhanced Integrated Graphics Memory: Shared memory up to 256M Resolutions: Up to 1280 x 1024 @ 65Hz for CRT LCD Interface: N/A
Ordering Information TF-FSB-960H-A10-G2 Full-Size PICMG1.3 CPU Card, Socket 775 Core 2 Duo, VGA, 2 x Gigabit Ethernet, 7 USBs, CompactFlash,SATA-II, RAID, ATX, Rev. A1.0 TF-FSB-960H-A10-EG Full-Size PICMG1.3 CPU Card, Socket 775 Core 2 Duo, VGA, 1 LAN, 1 GbE LAN, 7 USBs, CompactFlash, SATA-II, RAID, ATX, Rev. A1.0 TF-FSB-960H-A10-RF Full-Size PICMG1.3 CPU Card, Socket 775 Core 2 Duo, VGA, 2 x Gigabit Ethernet, 7 USBs, CompactFlash, SATA-II, RAID, AMT, ATX, Rev. A1.0 Passive Backplane Options: TF-BP-206SH-P3 Wallmount, PICMG 1.3, 6-Slot, Backplane, 3 PCI, 2 PCI-E, Single Segment, ATX PICMG 1.3 3/2/1 (PCI/PCI-E/PICMG 1.3) ATX TF-BP-214SH-P3E2I6 Rackmount, PICMG 1.3, 14-Slot, Backplane, 3 PCI, 2 PCI-E, 6 ISA, Single Segment, ATX PICMG 1.3 3/2/6/2 (PCI/PCI-E/ISA/PICMG 1.3) ATX TF-BP-206VH-E4 Rackmount, PICMG 1.3, 6-slot Backplane, 4 PCI-E, Single Segment, ATX PICMG 1.3 4/1 (PCI-E/ PICMG 1.3) ATX TF-BP-206VH-P4 Rackmount, PICMG 1.3, 6-slot Backplane, 4 PCI, Single Segment, ATX PICMG 1.3 4/1 (PCI/ PICMG 1.3) ATX TF-BP-216QH-P4E8 Rackmount, PICMG 1.3, 16-slot Backplane, 4 PCI, 4 PCI-E, Four Segments, ATX PICMG 1.3 4/8/4 (PCI/PCI-E/ PICMG 1.3) ATX Note: FSB-960H-A10 series cannot support the SATA ports of the backplanes above. Optional Accessories: TF-PER-U01H -- HD Codec Audio Daughter Board 1703030501 -- Supports ATX Power from Backplane to CPU Card 1702030301 -- ATX Power Simulation AT Power Switch Wire 1701400800 -- P-ATA100 Cable 80cm 1709070780 -- SATA Cable 78cm 1702043000 -- ATX 12V Extension Cable 1701260307 -- 1 Serial port + 1 Parallel port with Bracket 1701100305 -- 1 Serial port with Bracket 1998666611 -- P-ATA IDE removable frame-Black 1998666612 -- P-ATA IDE removable frame-White 1998666613 -- SATA IDE removable frame-Black 1998666614 -- SATA IDE removable frame-White 1759200161 -- CPU Cooler Fan for LGA775 Pentium® 4 3.6G, 4P, 12V, Dual Ball Bearing 1759200335 -- CPU Cooler Fan for LGA775 Pentium® 4, 12V, 1U
