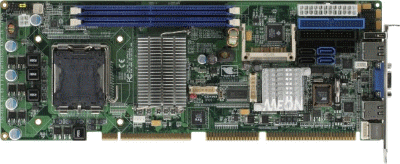

Click para ampliar a imagem

FSB-868G


Intel Core 2 Duo LGA775

PICMG Full-size SBC

    Features
  • Intel Pentium 4/ Pentium  D LGA775 Core 2 Duo CPUs
  • DDR II 667 Memory Supports up to 4GB
  • Integrated GMA950 2D/3D Graphics Accelerator, VGA Support
  • 10/100/1000 Base-TX Ethernet (GbE Optional) x 2
  • USB 2.0 x 7/ RS-232/422/485 x 2/ Parallel x 1/ IrDA Port x 1
  • Ultra ATA100 & SATA II x 4 & CompactFlash Type-II Storage
  • Dual Channel LVDS Output (Optional)
  • Watchdog Function 1~255 Sec.

    Introduction

AAEON announces a new full-size form factor Single Board Computer (SBC) - FSB-868G Rev.B, which is based on the use of Intel Core 2 Duo LGA 775/ Pentium-D/ Penitum-4 processors.  FSB-868G utilizes Intel LGA 775 Core 2 Duo CPU with high CPU core frequencies up to 2.66GHz, Pentium D up to 3.6GHz, Pentium 4 up to 3.8GHz with the Front Side Bus (FSB) running at 533 to 1066MHz.

FSB-868G Rev.B supports dual channel DDRII 533/667 system memory up to 2GB.  The VGA Controller of FSB-868G integrates Intel 945G chipset with core frequency up to 400MHz and integrates GMA950 2D/3D graphics Accelerator to provide higher performance of graphic processing.  AAEON's got Intel's long-term supply commitment and will guarantee product's long-life cycle to our precious customers.

In addition to the powerful computing engine, FSB-868G Rev.B equips with USB2.0 ports, one Mini-DIN PS/2 keyboard & mouse connector, one IrDA header and one standard Floppy Disk Drive.  Moreover, it also supports Ultra ATA 100, four SATA II and CompactFlash Type II storages.  These versatile expansion interfaces bring FSB-868G Rev.B a great flexibility to serve different application demands. Furthermore, its huge capacity and excellent compatibility are also ideal for system integrators for system planning and devices combination.



    Specifications

    System


  • Form Factor: PICMG Full-size SBC
  • Processor: Intel Pentium 4/ Pentium D GHz/ Celeron D/ Core 2 Duo,
    LGA 775 Package, FSB 533/800/1066 MHz
  • System Memory: 240-pin 1.8V DDR2 DIMM Socket x 2, total up to 4GB Support Dual Channel DDR memory (DDRII 533/667 )
  • Chipset: Intel 945G + Intel 82801GB (ICH7/ ICH7R RAID optional)
  • Ethernet: PCI-Express 10/100Mb or 10/100/1000Mb LAN x 2 with RJ-45 connectors Marvell 88E8036/88E8053 controller
  • BIOS: Award Plug & Play FWH BIOS-4Mb ROM
  • IDE Interface: ATA-100 (Supports CD-ROM ATAPI device) x 1,
    SATA II (Support four SATA devices) x 4
  • SSD: CFD type II Connector x 1
  • Expansion Interface: ISA/ PCI/ PCI-Express Connector (DF13-30P)
  • Watchdog Timer: 1~255 Sec. can be set with software on Super I/O
  • RTC: Internal RTC
  • Battery: Lithium Battery
  • Power Requirement: ATX, ATX12V
  • Operating Temperature: 32oF ~ 140oF (0oC ~ 60oC)
  • Board Size: 13.3"(L) x 4.8"(W) (338mm x 122mm )
  • Gross Weight: 1.2 lb (0.5 kg)
  • MTBF (Hours): 65,000
  • Power Consumption (Typical): 176W, with Pentium 4 3.8GHz/ FSB 800MHz/ 2MB L2 Cache
  • EMC: CE/ FCC Class A

          I/O: Chip/ W83627EHG

  • Serial Port: COM Port x 2: (Internal Pin Header x 1, External D-sub x 1),
    COM 1: RS-232, COM 2: RS-232/ 422/ 485
  • Parallel port: Parallel port supports SPP/ EPP/ ECP mode x 1
  • Universal Serial Bus: USB 2.0 Port x 7, Internal 5x2-pin headers x 3,
    support up to USB port x 6, TYPE-A Connector onboard x 1
  • Floppy Disk Interface: Standard Floppy Disk Drive x 1
  • Keyboard and Mouse: Mini-DIN PS/2 keyboard and Mouse connector x 1,
    Internal keyboard pin header x 1
  • IR Interface: Supports One IrDA Header
  • Audio (Daughter Board): Realtek ALC655 AC97 Codec, MIC-in/Line-in/Line-out/CD-in optional

          Display: Supports CRT & LCD simultaneous display

  • VGA Controller: Integrated VGA on Intel 945G, Core frequency up to 400MHz
  • Memory: Shared memory up to 256MB
  • Resolutions: Up to 2048 x 1536 @ 32bpp for CRT,
                             Up to 1600 x 1200 @ 24-bit for LCD
  • LCD Interface: 18/24-bit LVDS, 36/48-bit support
  Ordering Information
  • TF-FSB-868G-B10-VE
    Full Size PICMG CPU Card, Socket 775 Pentium 4, VGA, 10/100M LAN, 7 USB, CF, Audio, 4 SATA, Rev. B1.0
  • TF-FSB-868G-B10-VG
    Full Size PICMG CPU Card, Socket 775 Pentium 4, VGA, 10/100/1000M LAN, 7 USB, CF, Audio, 4 SATA, Rev. B1.0
  • TF-FSB-868G-B10-E2
    Full Size PICMG CPU Card, Socket 775 Pentium 4, VGA, 2 10/100M LAN, 7 USB, CF, Audio, 4 SATA,Rev. B1.0
  • TF-FSB-868G-B10-G2
    Full Size PICMG CPU Card, Socket 775 Pentium 4, VGA, 2 10/100/1000M LAN, 7 USB, CF, Audio, 4 SATA, Rev. B1.0
  • TF-FSB-868G-B10-RF
    Full Size CPU Card, LGA 775 Pentium D, VGA, 2 10/100/1000M LAN, 7 USB, CF, AC97, 4 SATA II, LVDS, Raid, Rev. B1.0

          Optional Accessories:

  • TF-TF-PER-C101
    Dual PCI-E Giga LANs Card w/Broadcom BCM 5789/5751/5721
  • TF-TF-PER-C102
    Dual PCI-E 10/100/1000 LANs Card w/Marvell 88B8036/53
  • TF-TF-PER-U00A
    5.1 Channel Audio 4 USB Connectors
  • 1703030501
    ATX Power from Backplane to CPU Card
  • 1702030301
    ATX Power Simulation AT Power Switch Wire
  • 1701400800
    P-ATA100 Cable 80cm
  • 1709070780
    SATA Cable 78cm
  • 1702043000
    ATX 12V Extension Cable
  • 1701260307
    1 Serial port + 1 Parallel port with Bracket
  • 1701100305
    1 Serial port with Bracket
  • 1998666611
    P-ATA IDE removable frame-Black
  • 1998666612
    P-ATA IDE removable frame-White
  • 1998666613
    SATA IDE removable frame-Black
  • 1998666614
    SATA IDE removable frame-White
  • 1759200162
    CPU Cooler Fan for LGA775 Pentium 4, 3.8GHz, 3P 12V, Dual Ball Bearing, 2 U.
