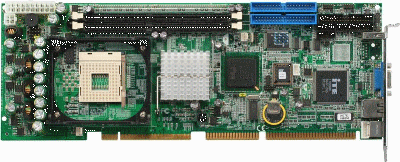

FSB-860B


Intel Pentium 4/ Celeron
Socket 478
PICMG Full-size SBC
    Features
  • Intel® Pentium® 4/ Celeron® CPU up to 3.06GHz
  • Intel® 845GV + Intel® ICH4
  • DDR333 Memory up to 2GB
  • 10/100Base-TX Ethernet x 2 (Gigabit Ethernet Optional)
  • Integrated AGP 4X 2D/3D Graphics Accelerator
  • AC97 Codec Audio Daughter Board (Optional)
  • Ultra ATA100 x 2, CompactFlash™ Type II x 1
  • USB2.0 x 5, COM x 2, Parallel x 1, IrDA x 1
  • ISA, PCI, PCI-Express Expansions
  • ATX 2.1
  • ISA High-driver Supports up to 20 Slots 64mA Fan-out

    Introduction

Introducing AAEON's new FSB-860B, powered by Intel Pentium 4/ Celeron processor, full-size form factor single board computer (SBC) with an onboard CompactFlash Type II and five USB 2.0 ports.

FSB-860B successfully employs Intel advanced 82845GV chipset, which supports high CPU frequencies up to 3.06GHz Prescott with a front side bus running at 400MHz/533MHz. FSB-860B supports Intel Hyper-Threading Technology which gives you the best overall Pentium 4 processor performance available. FSB-860B also provides high memory capacity up to 2GB DDR DRAM (DDR266/333).

In addition to its powerful computing engine, the full functional design of the board includes features such as a chipset integrated 2D/3D graphics engine with AGP 4x bandwidth, built-in USB2.0 and
onboard CompactFlash Type II socket. FSB-860B delivers super graphic performance without additional cost by using the integrated Intel Extreme Graphics architecture to maximize VGA performance capability.

Five USB 2.0 ports provide an expandable, Plug and Play serial interface that ensures a standard low-cost connection for peripheral devices. Industrial applications will benefit from the five USB 2.0
by two pin-headers, offering 480 Mbps high-speed efficiency and value without compromising performance.

Moreover, FSB-860B can also be equipped with Dual Intel Ethernet controllers. One of these versions provides superior 1Gbps networking access ability for high speed networking applications
such as gateway, VPN and Mini server. FSB-860B is a versatile Pentium 4 level full-size CPU card with the best cost-performance ratio for CTI, networking and mini-server markets.


    Specifications

    System


  • Form Factor: PICMG Full-size SBC
  • Processor: Intel® Pentium® 4/ Celeron®
                          FSB: 400/ 533MHz , supports up to 3.06 GHz
  • System Memory: 184-pin 2.5V DDR DIMM Socket x 2, up to 2GB
                                     Supports DDR 333 memory (DDR 266/333)
  • Chipset: Intel® 845GV and Intel® 82801DB (ICH4)
  • Ethernet:
    10/100Base-TX or 10/100/1000Base-TX optional, RJ-45 x 2, Intel® 82562ET,
    Intel® 82551QM/ 82541GI Controller
  • BIOS: Award Plug & Play FWH BIOS-4Mb ROM
  • Expansion Interface: ISA/ PCI Connector
  • Watchdog Timer: 1~255 Step 64 level and can be set with software on Super I/O
  • RTC: Internal RTC
  • Battery: Lithium battery
  • Power Requirement: ATX 2.1
  • Operating Temperature: 32oF ~ 140oF (0oC ~ 60oC )
  • Board Size: 13.3"(L) x 4.8"(W) (338 mm x 122 mm )
  • Gross Weight: 1.2 lb (0.5 kg)
  • MTBF (Hours): 75,000
  • Power Consumption (Typical):
    58W, with Pentium® 4 2.4GHz/ FSB 533MHz/ 512KB L2 Cache

          I/O: I/O Chip/ IT8712 FA

  • Storage:
    ATA-100 x 2 channel (Support two ATAPI devices)
    CompactFlash™ Type II x 1 (USB to IDE)
    Standard Floppy connector x 1 (up to 2 devices)
  • Serial Port:
    COM x 2: (Internal pin header x 2)
    COM 1: RS-232
    COM 2: RS-232/ 422/ 485
  • Parallel Port: Supports SPP/ EPP/ ECP mode
  • Universal Serial Bus: USB 2.0 x 5
    5 x 2 pin headers for internal x 2
    Type-A connector onboard x 1
  • PS/2 Port: Keyboard x 1; Mouse x 1
  • Audio (Daughter Board): Realtek ALC655 AC97 Codec, MIC-in/ Line-in/ Line-out/ CD-in
  • IrDA: Supports IrDA header x 1

          Display

  • VGA Controller: Integrated Intel® 845GV, AGP 4X, Core frequency up to 266MHz
  • Memory: Shared memory up to 32MB
  • Resolutions: Up to 2048 x 1536 for CRT
  Ordering Information
  • TF-FSB-860B-A10-V
    Full-size CPU Card,Socket 478 for Pentium® 4, VGA, 5 USB, CompactFlash™, AC97, ATX, Rev.A1.0
  • TF-FSB-860B-A10-VE
    Full-size CPU Card,Socket 478 for Pentium® 4, VGA, 1 10/100Base-TX Ethernet,
    5 USB, CompactFlash™, AC97, ATX, Rev. A1.0
  • TF-FSB-860B-A10-VG
    Full-size CPU Card,Socket 478 for Pentium® 4, VGA, 1 Gigabit Ethernet, 5 USB, CompactFlash™, AC97, ATX, Rev. A1.0
  • TF-FSB-860B-A10-E2
    Full-size CPU Card,Socket 478 for Pentium® 4, VGA, 2 10/100Base-TX Ethernet,
    5 USB, CompactFlash™, AC97, ATX, Rev. A1.0

          Passive Backplane Options:

  • TF-BP-213RG-P4
    Rackmount, PICMG, 13-slot R.PCI Backplane, 4 PCI/7 ISA, Single Segment, AT/ATX PICMG 4/8/2 (PCI/ ISA/ PICMG) AT, ATX, 3-pin ATX extend
  • TF-BP-214SG-P4
    Rackmount, PICMG, 14-slot Backplane, 4 PCI/ 8 ISA, Single Segment, AT/ATX PICMG 4/9/2 (PCI/ ISA/ PICMG) AT, ATX, 3-pin ATX extend
  • TF-BP-214SG-P7
    Rackmount, PICMG, 14-slot Backplane, 7 PCI/ 5 ISA, Single Segment, AT/ATX PICMG 7/6/2 (PCI/ ISA/ PICMG) AT, ATX, 3-pin ATX extend
  • TF-BP-214SG-P12
    Rackmount, PICMG, 14-slot Backplane, 12 PCI/1 ISA Single Segment, AT/ATX PICMG 12/2/2 (PCI/ ISA/ PICMG) AT, ATX, 3-pin ATX extend
  • TF-BP-208SG-P4
    Wallmount, PICMG, 8-slot Backplane, 4 PCI/ 2 ISA, Single Segment, AT/ATX PICMG 4/3/2 (PCI/ ISA/ PICMG) AT, ATX, 3-pin ATX extend
  • TF-BP-208SG-P7
    Wallmount, PICMG, 8-slot Backplane, 7 PCI/ 0 ISA, Single Segment, AT/ATX PICMG 7/0/1 (PCI/ ISA/ PICMG) AT, ATX, 3-pin ATX extend
  • TF-BP-206VG-P4
    Rackmount, PICMG, 6-slot Backplane, 4 PCI/ 0 ISA, Single Segment, AT/ATX PICMG 4/0/1 (PCI/ ISA/ PICMG) AT, ATX, 3-pin ATX extend
  • TF-BP-206VG-P2
    Rackmount, PICMG, 6-slot Backplane, 2 PCI/ 3 ISA, Single Segment, ATX PICMG 2/3/1 (PCI/ ISA/ PICMG) AT, ATX, 3-pin ATX extend
  • TF-BP-206SG-P4
    Wallmount, PICMG, 6-slot Backplane, 4 PCI, 2 ISA, Single Segment, ATX PICMG 4/2/2 (PCI/ ISA/ PICMG) AT, ATX, 3-pin ATX extend
  • TF-BP-206SG-P3
    Wallmount, PICMG, 6-slot Backplane, 3 PCI, 3 ISA, Single Segment, ATX PICMG 3/3/2 (PCI/ ISA/ PICMG) ATX, 3-pin ATX extend

           Optional Accessories:

  • TF-PER-U00A - Audio Daughter Board
  • 1759200155 - (TF) CPU Cooler Fan, for Socket 478, Pentium® 4 3.2G, 3P, 12V
  • 1759200332 - (TF) CPU Cooler Fan + Heat Sink, Socket 478, 3P, 12V, 1U Low Profile
  • 1701400802 - Flat Cable, 40P-40P-40P (UL: 2651, 15cm+65cm) 80cm, for ATA 33
  • 1701400800 - Flat Cable, 40P-40P-40P (UL: 20674, 15cm+65cm) 80cm, for ATA100
  • 1701400702 - Flat Cable, 40P ATA-100, 2.54mm, BLUE/GRAY/BLACK, 70cm for Hard Disk Drive
  • 1709070780 - SATA Cable, 7P Pitch 1.27mm, 78cm
