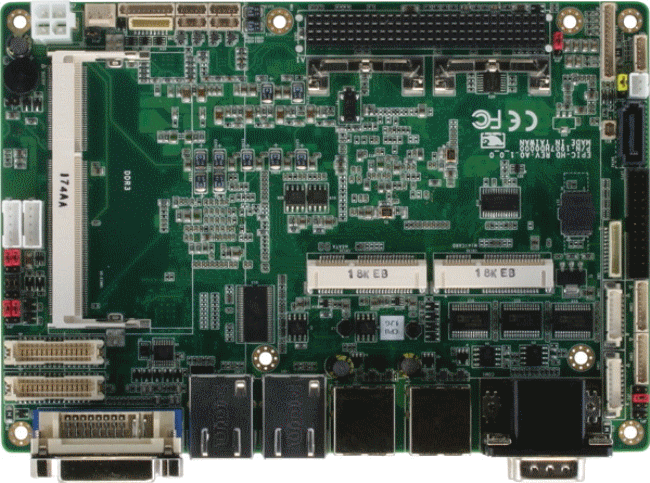

EPIC-HD07
EPIC Board with Onboard
AMD G Series Dual/Single
Processor




Datasheets
EPIC-HD07

    Features
  • Onboard AMD G Series T56N/T44R/T40R Dual/Single Processor
  • AMD G Series CPU + A55E
  • SODIMM DDR3 1066/1333 MHz, Max. 4GB
  • Gigabit Ethernet x 2, RJ-45 x 2
  • Up to 24-bit Dual Channel LVDS LCD, CRT, DVI-I (Optional)
  • 2CH HD Audio
  • SATA 3.0Gb/s x 1, mSATA Slot x 1
  • USB 2.0 x 8, COM x 6, 16-bit Digital I/O
  • Expansion: Mini Card x 1, PCI-104 x 1 (Co-lay with LPT)
  • +12V, AT/ATX
  • CPU and PCH On Solder Side For Easy System Integration
  • Supports AAEON SDK Utility: Hi-Safe
    Specifications
    System

  • Form Factor: EPIC
  • Processor: AMD G series T56N/T44R/T40R Dual/ Single Core 1GHz, up to 1.65GHz
  • System Memory: 204-pin SODIMM DDR3 1066/1333 MHz Memory, Max 4GB
  • Chipset: AMD A55E
  • I/O Chipset: Fintek 81866D
  • Ethernet: Realtek 8111E, Gigabit Ethernet, RJ-45 x 2
  • BIOS: UEFI
  • Wake On LAN: Yes
  • Watchdog Timer: Generates a time-out system reset
  • H/W Status Monitoring:
    Supports Power Supply Voltage, FAN Speed and Temperature Monitoring
  • Expansion Interface:
    PCI-104 x 1, Mini Card x 2 (One support mSATA), 16-pin DIO 8 in/ 8out
  • Battery: Lithium battery
  • Power Requirement: +12V, AT/ATX (default)
  • Power Consumption (Typical):
    AMD G-series T56N 1.65GHz, DDR3 4G = 1.64A @ +12V
  • Board Size: 4.5" x 6.5" (115mm x 165mm)
  • Gross Weight: 1.2 lb (0.5 Kg)
  • Operating Temperature: 32F ~ 140F (0C ~ 60C)
  • Storage Temperature: -40F ~ 176F (-40C ~ 80C)
  • Operating Humidity: 10%~80% relative humidity, non-condensing
  • MTBF (Hours): 52,000

    I/O

  • Storage: SATA 3.0Gb/s x 1, mSATA x 1
  • Serial Port: RS-232 x 5, RS-232/422/485 x 1(COM 2)
  • Parallel Port: SPP/EPP/ECP x 1
  • USB: USB 2.0 x 8
  • PS/2 Port: Keyboard x 1, Mouse x 1
  • Digital I/O: Support 16-bit(Programmable)
  • Audio: Line-in/Line-out/Mic-in
  • Touch Screen: Supports 4/5-wire resistive touch screen (optional)

          Display: Supports CRT/LCD/DVI simultaneous/Dual view displays

  • Chipset: AMD G series CPU integrated
  • Memory: Shared system memory up to 384MB
  • Resolutions:
    2560 x 1600 T56N (18W)
    1920 x 1200 T44R/T40R (9W/5.5W)
    1920 x 1200 for DVI
    1920 x 1200 for dual channel LVDS
    1400 x 1050 for single channel LVDS
  • LCD Interface:
    24-bit single channel LVDS x 1
    24-bit dual-channel LVDS x 1
  Ordering Information
  • TF-EPIC-HD07-A10
    T56N, Fanless, CRT + LVDS1/ CRT + LVDS2, LVDS1 1CH 4-bit, LVDS2 2CH 24-bit, SATA x 1,
    mSATA x 1, GbE x 2, USB x 8, RS-232 x 5, RS-232/422/485 x 1, PCI-104 x 1, Mini Card x 1,
    +12V, AT/ATX, 0C ~ 60C
  • TF-EPIC-HD07-A10-01
    T44R, Fanless, CRT + LVDS1/ CRT + LVDS2, LVDS1 1CH 4-bit, LVDS2 2CH 24-bit, SATA x 1,
    mSATA x 1, GbE x 2, USB x 8, RS-232 x 5, RS-232/422/485 x 1, PCI-104 x 1, Mini Card x 1,
    +12V, AT/ATX, 0C ~ 60C
  • TF-EPIC-HD07-A10-02
    T40R, Fanless, CRT + LVDS1/ CRT + LVDS2, LVDS1 1CH 4-bit, SATA x 1,
    GbE x 2, USB x 8, RS-232 x 4, RS-232/422/485 x 1, Mini Card x 1,
    +12V, AT/ATX, 0C ~ 60C

Optional Accessories

  • M10HD07000 -- (TF) Metal, Al, Heat Spreader, 176 x 100 x 21mm, Rev.0.0, for EPIC-HD0
  • 1701260200 -- (TF) Flat Cable, 25P D-SUB FEMALE, 26P 2.00mm Pitch Housing, 20cm
  • 1700060155 -- (TF) KB & PS/2 Mouse CABLE, 1 x 6P Pitch=1.25mm Housing, 15cm
  • 1701010150 -- (TF) Flat Cable, 1 x 10P Pitch=1.25mm Housing, 15cm
  • 1700050207 -- (TF) USB Cable, 1 x 5P Pitch=1.25mm Housing, 20cm
  • 1701090150 -- (TF) Flat Cable, D-Sub 9(M), 9P Housing, 9P 1.25mm pitch Housing, 15cm
  • 1702150155 -- (TF) Power Cable, 15P SATA (F), 2P 2.0mm Housing (PH), 15cm
  • 1701150510 -- (TF) Audio Cable, 1 x 14P Pitch=1.25mm Housing, 51cm

Packing List

  • 9681945700 -- Cable Kit
    • 1709070500 -- SATA Cable
    • 1702150155 -- SATA Power Cable
  • 9657666600 -- Jumper Cap
  • Product DVD
  • EPIC-HD07 with Heat spreader
