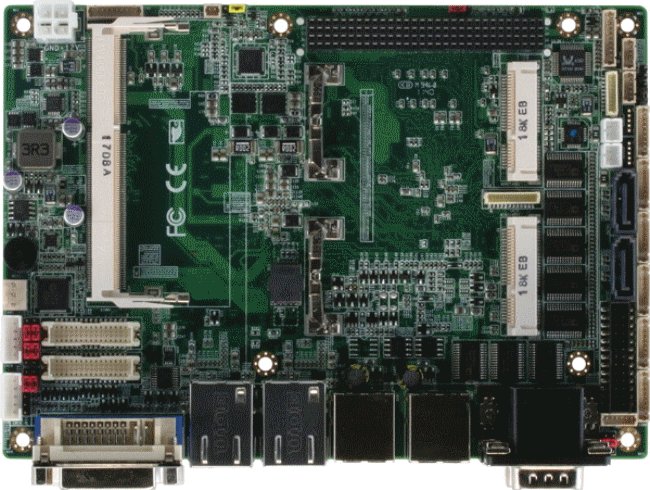

EPIC-CV07
EPIC Board with Onboard
Intel Atom D2550/N2600
Processor




Datasheets
EPIC-CV07

    Features
  • Onboard Intel Atom D2550/N2600 Processor
  • Intel Atom D2550/N2600 + NM10
  • 204-pin SODIMM DDR3 800(N2600)/1066(D2550)MHz up to 2GB(N2600)/4GB(D2550)
  • Reatek 8111E for 10/1000/1000Base-TX, RJ-45 x 2
  • 18/24-bit Single/Dual Channel LVDS, CRT, DVI-I (Optional)
  • 2CH HD Audio
  • SATA 3.0Gb/s x 1, mSATA (Half-Size) Slot x 1
  • USB 2.0 x 7, COM x 8, 16-bit Digital I/O
  • Expansion: Mini Card x 1
  • +12V, AT/ATX
  • CPU and PCH On Solder Side For Easy System Integration
  • Supports AAEON SDK Utility: Hi-Safe
    Specifications
    System

  • Form Factor: EPIC
  • Processor: Intel Atom D2550/N2600 up to 1.86GHz
  • System Memory: 204-pin SODIMM DDR3 800/1066MHz up to 4GB/2GB x 1
  • Chipset: Intel Atom D2550/N2600 + NM10
  • I/O Chipset: Fintek 81866D
  • Ethernet: Reatek 8111E for 10/1000/1000Base-TX, RJ-45 x 2
  • BIOS: UEFI
  • Wake On LAN: Yes
  • Watchdog Timer: Programmable 255 level System Reset
  • H/W Status Monitoring
    Supports Power Supply Voltage, FAN Speed and Temperature Monitoring
  • Expansion Interface: Mini Card, 16-bit DIO, PCI-104
  • Battery: Lithium battery
  • Power Requirement: +12V, AT/ATX (default)
  • Power Consumption (Typical):
    Intel Atom D2550 1.86G 1066MHz, 4GB, DC +12V = 14.76W
  • Board Size: 4.5" x 6.5"(115mm x 165mm)
  • Gross Weight: 1.2 lb (0.5 Kg)
  • Operating Temperature: 32 F ~ 140 F (0 C ~ 60 C)
  • Storage Temperature: -40 F ~ 176 F (-40 C ~ 80 C)
  • Operating Humidity: 0% ~ 90% relative humidity, non-condensing
  • MTBF (Hours): 51,000

    I/O

  • Storage: SATA x 1, mSATA (Half-Size) x 1
  • Serial Port: RS-232 x 7, RS-232/422/485 x 1 (COM2)
  • Parallel Port: SPP/EPP/ECP x 1
  • USB: USB 2.0 x 7
  • PS/2 Port: Keyboard x 1, Mouse x 1
  • DIO: Digital I/O Support 16-bit(Programmable) Co-lay with LPT
  • Audio: Line-in/Line-out/Mic-in
  • Touch Screen: Supports 4/5-wire resistive touch screen (N2600 optional)

          Display: Supports CRT/LCD/DVI simultaneous/Dual view displays

  • Chipset: Intel Atom D2550/ N2600 integrated
  • Resolution:
    Up to 1920 x 1200 for CRT, DVI (Optional)
    Up to 1366 x 768 for LCD
  • LCD Interface:
    Dual LVDS LCDs: 24-bit Single Channel
    LVDS LCD + 18/24-bit Dual-channel
    LVDS LCD for Intel Atom D2550,
    18-bit Single Channel LVDS LCD for Intel Atom N2600
  Ordering Information
  • EPIC-CV07-A10-10
    Intel Atom D2550, Fanless, CRT + LVDS1/ CRT + LVDS2, LVDS1 1CH 18-bit, LVDS2 2CH 24-bit,
    SATA x 1, mSATA (Half-Size) x 1, GbE x 2, USB x 7, RS-232 x 7, RS-232/422/485 x 1,
    Mini Card x 1, mSATA x 1, PCI-104, +12V, AT/ATX, 0C ~ 60C
  • EPIC-CV07-A10-11
    Intel Atom N2600, Fanless, CRT + LVDS1/ CRT + LVDS2, LVDS1 1CH 18-bit, LVDS2 2CH 24-bit,
    SATA x 1, mSATA (Half-Size) x 1, GbE x 2, USB x 7, RS-232 x 7, RS-232/422/485 x 1,
    Mini Card x 1, mSATA x 1, +12V, AT/ATX, 0C ~ 60C

Optional Accessories

  • M10CV07000 -- (TF) Metal, Al, Heatspreader, 176 x 100 x 21mm, Rev.0.0, for EPIC-CV07
  • 1701260200 -- (TF) Flat Cable, 25P D-SUB FEMALE, 26P 2.00mm Pitch Housing, 20cm
  • 1700060155 -- (TF) KB & PS/2 Mouse Cable, 1 x 6P Pitch=1.25mm Housing, 15cm, for PFM-945C
  • 1701010150 -- (TF) FLAT Cable, 1 x 10P Pitch=1.25mm Housing, 15cm, for PFM-945C
  • 1700050207 -- (TF) USB Cable, 1 x 5P Pitch=1.25mm Housing, 20cm, for PFM-945C
  • 1701090150 -- (TF) Flat Cable, D-Sub 9(M), 9P Housing, 9P 1.25mm pitch Housing, 15cm
  • 1702150155 -- (TF) Power Cable, 15P SATA(F), 2P 2.0mm Housing (PH), 15cm
  • 1709100254 -- (TF) Audio Cable, 1 x 14P Pitch=1.25mm Housing, 51cm, for PFM-945C

Packing List

  • 9681945700 -- Cable Kit
    • 1709070500 -- SATA Cable
    • 1702150155 -- SATA Power Cable
    • 9657666600 -- Jumper Cap
  • Product DVD
  • EPIC-CV07 with Heat spreader
