SBC
- Tamanho EPIC
|
|

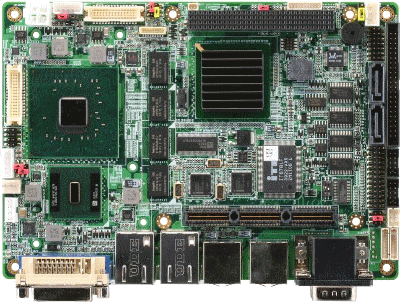

EPIC-9457 Rev.B
EPIC Board with
Onboard Intel Atom N270
Processor
Extended temperature version
available
|
|
Datasheet
EPIC-9457 Rev.B |
Features
- Intel Atom N270 1.6 GHz Processor
- Intel 945GME + ICH7M
- Onboard DDR2 400/533 Memory 1 GB
- Gigabit Ethernet x 2
- Dual 18/24-bit Dual-Channel LVDS LCDs
- AC97 2.3 Code 2CH Audio
- Type 2 CompactFlash x 1, SATA 1.5Gb/s x 2
- USB2.0 x 6, COM x 4, Digital I/O 8-bit
- PCI/104-Express, Mini Card Expansion Interfaces
- +8.5V DC ~ 19V DC
- Optional RAID 0 & 1
|
Specifications
Form Factor: EPIC Express Board
Processor: Onboard Intel® Atom™ N270 Processor 1.6GHz, FSB: 533/667MHz
System Memory: Onboard 1GB (DDRII 400/533)
Chipset: Intel® 945GME + ICH7M
I/O Chipset: ITE8781
Ethernet: Intel® 82574L for 10/100/1000Base-TX, RJ-45 x 2
BIOS: Award Plug & Play SPI BIOS - 2MB ROM
Wake On LAN: Yes
Watchdog Timer: Generates a time-out system reset
H/W Status Monitoring:
Supports power supply voltages, Fan Speed and temperature monitoring
Expansion Interface:
PCI/104-Express (PCI-104 + PCIe/104), Mini Card connector
Battery: Lithium battery
Power Requirement: +8.5V ~ 19V
Power Consumption (Typical): Intel® Atom™ N270 1.6 GHz,
DDRII 1 GB
1.7A @ 12V
Board Size: 4.5" x 6.5" (115mm x 165mm)
Gross Weight: 1.1 lb (0.5KG)
Operation Temperature:
32oF ~ 140oF (0oC ~ 60oC)
-4oF ~ 158oF (-20oC ~ 70oC) for
WiTAS1
Storage Temperature: -40oF ~ 176oF (-40oC ~ 80oC)
Operation Humidity: 0% ~ 90% relative humidity, non-condensing
MTBF (Hours): 60,000
I/O
Storage: EIDEx1 (UDMA-33 for two devices), SATA 1.5Gb/s x 2,
CompactFlash™ x 1
Serial Port: RS-232 x 3, RS-232/422/485 x 1
Parallel Port: SPP/EPP/ECP Mode
USB: USB2.0 x 6
PS/2 Port: Keyboard+Mouse x 1
Digital I/O: Supports 8-bit (programmable)
Audio: Line-in, Line-out, Mic-in & CD-in
Touch Screen: Supports 4/5/8-wire resistive touch screen
Display:
Supports
CRT / LCD simultaneous / Dual view displays
- Chipset: Intel® 945GME integrated
- Memory: Shared system memory up to 224MB
- Resolutions:
Up to 2048x1536 for CRT, Up to 1920x1200 for LCD & DVI
- LCD Interface: Dual 18/24-bit Dual-channel LVDS LCDs
- DVI: DVI-I x 1
|
Ordering Information
- EPIC-9457-B11
Intel Atom N270, Fanless,CRT + LVDS/ DVI + LVDS, 2CH 24-bit LVDS, SATA x 2, IDE x 1,
CompactFlash x 1, GbE x 2, USB x 6, RS-232 x 3, RS-232/422/485 x 1, PCI/104-Express x 1,
Mini Card x 1, +8.5V ~ +19V, 0°C ~ 60°C
- EPIC-9457W1-B11
Intel Atom N270, Fanless,CRT + LVDS/ DVI + LVDS, 2CH 24-bit LVDS, SATA x 2, IDE x 1,
CompactFlash x 1, GbE x 2, USB x 6, RS-232 x 3, RS-232/422/485 x 1, PCI/104-Express x 1,
Mini Card x 1, +8.5V ~ +19V, WiTAS 1 (-20°C ~ 70°C)
Optional Accessories
- 1702040151 -- Power Cable, Big 4P to ATX-12V, Length 15cm
- 1701090150 -- COM Port Cable, Length 15cm
- 1709140181 -- Audio Cable, Length 18cm
- 1702150152 -- SATA Power Cable, Length 15cm
- 1709070500 -- SATA Cable, Length 50cm
- 1701440500 -- IDE Cable, Length 50cm
- 1701260152 -- Keyboard/ Mouse Cable
Packing List
- 9681945700
Cable Kit
1709070500 SATA Cable
1700060152 Keyboard/Mouse Cable
- 9657666600 -- Jumper Cap
- Product CD
- EPIC-9457 Rev. B With Heatsink
|
|
