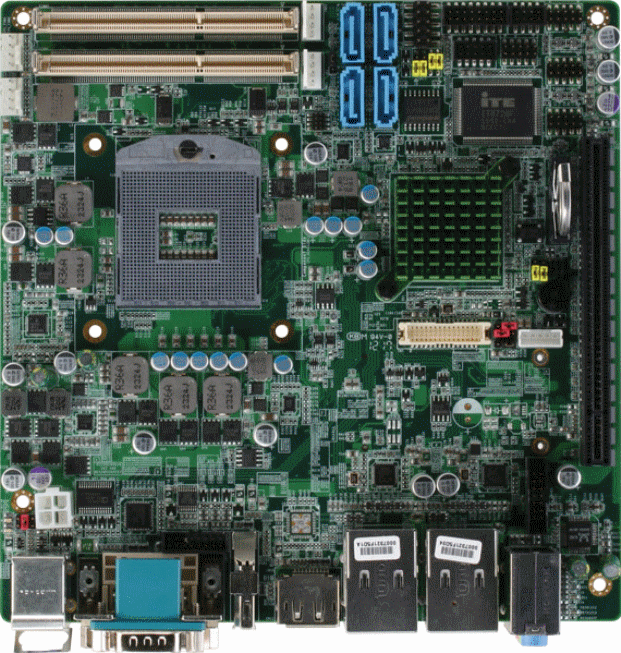

EMB-QM77
Mini-ITX Embedded Motherboard
with
Intel
Processors
3rd Generation Core i7/i5
Celeron Quad Core/ Dual Core

    Features
  • Socket rPGA988, Intel 3rd Generation Core i7/i5/ Celeron Processor
  • Intel Core i7/i5 + QM77
  • 204-pin Dual-channel DDR3 1066/1333/1600 MHz SODIMM x 2, Up to 8GB
  • Gigabit Ethernet x 2
  • Dual Display Version: CRT, Dual 24-bit LVDS, DVI-D, HDMI, DisplayPort
  • Three Display Version: CRT, Dual 24-bit LVDS, DVI-D, DisplayPort x 2 (Optional)
  • SATA 6.0Gb/s x 2, SATA 3.0Gb/s x 2, Support RAID 0,1,5,10
  • USB2.0 x 6, USB3.0 x 4, COM x 2
  • PCI-Express [x16] x 1, Mini Card x 1, CFast x 1, TPM x 1
    Specifications

System

  • Form Factor: Mini-ITX
  • Processor: Socket rPGA988, Intel 3rd generation Core i7/i5/Celeron processor
  • System Memory:
    204-pin Dual-Channel DDR3 1066/1333/1600 MHz SODIMM x 2, Up to 8GB
  • Chipset: Intel Core i7/i5 + QM77
  • I/O Chipset: ITE IT8728F + Fintek F81216DG
  • Ethernet: Intel PHY WG82579LM 10/100/1000Base-TX, RJ-45 x 1
  • Realtek: RTL 8111E 10/100/1000Base-TX, RJ-45 x 1
  • BIOS: AMI SPI BIOS-128MB ROM
  • Wake On LAN: Yes
  • Watchdog Timer: System reset : 1~255 steps programmable
  • H/W Status Monitoring:
    Supports System Temperature, Voltage, and Cooling Fan Status monitoring
  • Expansion Interface: PCI-E[x16] x 1, Mini Card x 1, CFast? x 1
  • Power Requirement: ATX 4-pin connector x 1 for DC-12 V input
  • Power Consumption (Typical):
    Intel Core i7 3610QM/ 2.3GHz/ DDR3 1333 8GB
    3.81A @ +12V/Full Loading 45.72W
  • Board Size: 6.7"(L) x 6.7"(W)(170mm x 170mm)
  • Gross Weight: 1.32 lb (0.6 Kg)
  • Operation Temperature: 32 F ~ 140 F (0 C ~ 60 C)
  • Storage Temperature: -4 F ~ 158 F (-20 C ~ 70 C)
  • Operation Humidity: 0% ~ 90% relative humidity, non-condensing
  • MTBF (Hours): 60,000

Display

  • Chipset: Intel Core i7/i5 / Celeron + QM77 integrated Gen 5.75 graphics
  • Memory: Shared system memory up to 256MB
  • Resolution:
    Up to 2560 x 1600 @ 60Hz for 1st DisplayPort?
    Up to 1920 x 1600 @ 60Hz for 2nd DisplayPort?
    Up to 1920 x 1200 @ 60Hz for VGA, DVI, HDMI
  • Output Interface:
    Dual Display Version: CRT, Dual 24-bit LVDS, DVI-D, HDMI, DisplayPort
    Three Display Version: CRT, Dual 24-bit LVDS, DVI-D, DisplayPort x 2

I/O

  • Storage: SATA 6.0Gb/s x 2, SATA 3.0Gb/s x 2, Support RAID 0,1,5,10
  • Serial Port:
    RS-232 x 1 (box header)
    RS-232/422/485 x 1 (on I/O)
  • USB: USB2.0 x 6, USB3.0 x 4
  • PS/2 Port: Keyboard x 1, Mouse x 1
  • Digital I/O: 8-bit programmable (4-in / 4-out)
  • Audio: Line-in, Mic-in, Line-out
  Ordering Information
  • TF-EMB-QM77-A10-OSP
    Socket, SODIMM, Fan, VGA/ DVI-D/ LVDS/ DP x 2, SATA2 x 2, SATA3 x 2, CFast x 1,
    24-bit Dual-Channel LVDS, GbE x 2, USB x 10, RS-232 x 1, RS-232/422/485 x 1,
    Mini PCIe x 1, PCI-E[x16] x 1, Mini Card x 1, +12V/DC, 0C ~ 60C
  • TF-EMB-QM77-A10-01-OSP
    Socket, SODIMM, Fan, VGA/ DVI-D/ LVDS/ DP/ HDMI, SATA2 x 2, SATA3 x 2, CFast x 1,
    24-bit Dual-Channel LVDS, GbE x 2, USB x 10, RS-232 x 1, RS-232/422/485 x 1,
    Mini PCIe x 1, PCI-E[x16] x 1, Mini Card x 1, +12V/DC, 0C ~ 60C

Optional Accessories

  • 17592QM672 -- CPU Cooler 4P, 60mm x 60mm x 26.5mm

Packing List

  • 1701160201 -- VGA Cable
  • 1709100201 -- USB Cable w/Bracket
  • 1701100206 -- COM Cable
  • 1709070800 -- SATA Cable
  • 1702151201 -- SATA Power Cable (4-pin)
  • Metal I/O Bracket
  • Product DVD
  • EMB-QM77
