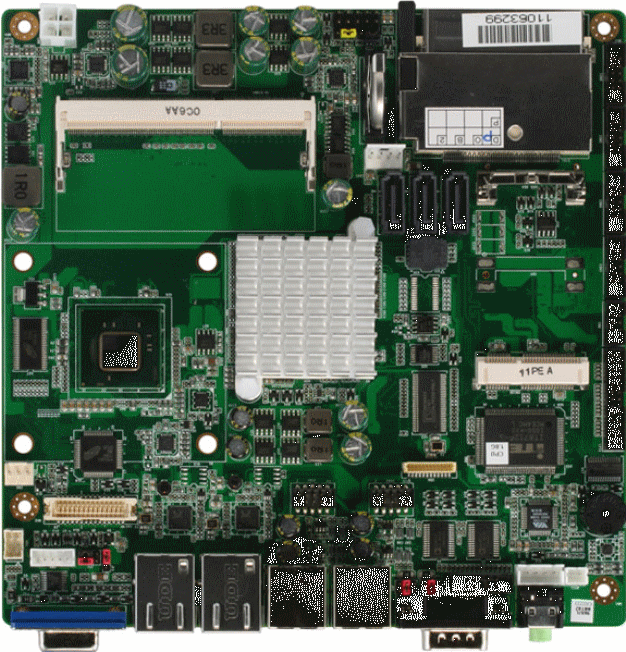

EMB-LN8T
Mini-ITX Embedded Motherboard
With Onboard
Intel Atom N455/D525 Processor

    Features
  • Onboard Intel Atom N455/D525 Processor
  • 204-pin SODIMM x 1 DDR3 800 Up To 4GB (Optional for 2nd SODIMM)
  • Intel ICH8M
  • 10/100/1000Base-TX (RTL8111E)]
  • 18-bit LVDS Or 24-bit LVDS
  • Speaker-out With 2W Amplifier
  • SATA 3.0Gb/s x 3, RAID 0 & 1
  • COM x 6 (RS-232 x 4, RS-232/422/485 x 2)
  • Mini Card x 1 (Optional For 2nd Mini Card with SIM)
  • Optional TPM1.2
  • DC 12V
  • Extra Slim With Height Only 20mm (Without Cooler, Dimm 2)
    Specifications

System

  • Form Factor: Mini-ITX
  • Processor: Onboard Intel Atom N455/D525
  • System Memory: 204-pins SODIMM x 1 DDR3 800 Up To 4 GB (optional 2nd SODIMM)
  • Chipset: Intel ICH8M
  • I/O Chipset: ITE8712F/KX-L + Fintek81216AD
  • Ethernet: 10/100/1000Base-TX x 2, RTL8111E
  • BIOS: AMI 8MB
  • Wake on LAN: Yes
  • Watchdog Timer: 255 Levels
  • H/W Status Monitoring: Monitoring system temperature, voltage, and cooling fan status
  • Expansion Interface: Mini Card-top: full (optional for bottom half with SIM slot)
  • Battery: Lithium Battery
  • Power Requirement: DC 12V
  • Power Consumption (Typical):
    Intel Atom D525 1.8GHz, DDR3 1GB, 1.79A @ 12V
  • Board Size: 6.7" x 6.7" (170mm x 170mm)
  • Gross Weight: 1.2 lb (0.5 kg)
  • Operating Temperature: 32F ~ 140F (0C ~ 60C)
  • Storage Temperature: -40F ~ 176F (-40C ~ 80C)
  • Operating Humidity: 0% ~ 90% relative humidity, non-condensing
  • MTBF (Hours): 55,000

Display: Supports CRT/LCD, CRT simultaneous/ dual view display

  • Chipset: Intel Atom N455/D525 Integrated Graphics
  • Memory: Shared memory: 324MB/DVMT 4.0
  • Resolutions:
    Up to 1366 x 768, 18bpp for Single LVDS channel supporting resolution
    Up to 2048 x 1536 @ 60Hz for Analog RGB display output resolution
  • LCD Interface: 18-bit or 24-bit LVDS
  • Video Interface: CRT

I/O

  • Storage: CompactFlash x 1, SATA 3.0Gb/s x 3
  • Serial Port: RS-232 x 4, RS-232/422/485 x 2
  • Parallel Port: SPP/EPP/ECP mode
  • USB: USB2.0 x 8
  • PS/2 Port: Keyboard x 1, Mouse PS/2 x 1
  • Digital I/O: Supports 8-bit (Programmable)
  Ordering Information
  • TF-EMB-LN8T-A10
    Intel Atom D525, SODIMM, Fan, VGA/LVDS, SATA2 x 3, 18/24-bit Single Channel LVDS,
    GbE x 2, USB x 8, RS-232 x 4, RS-232/422/485 x 2, Mini PCIe x 1, +12V/DC, 0C ~ 60C
  • TF-EMB-LN8T-A10-01
    Intel Atom N455, SODIMM, Fanless, VGA/LVDS, SATA2 x 3, 18/24-bit Single Channel LVDS,
    GbE x 2, USB x 8, RS-232 x 4, RS-232/422/485 x 2, Mini PCIe x 1, +12V/DC, 0C ~ 60C

Packing List

  • 1709070500 -- SATA Cable
  • 1702151200 -- Onboard SATA Power Cable
  • 9657666600 -- Jumper Cap
  • 17592LN8T0 -- EMB-LN8T with Active Cooler (D525 Version) or With Passive Cooler (N455 Version)
  • Product DVD
  • EMB-LN8T
