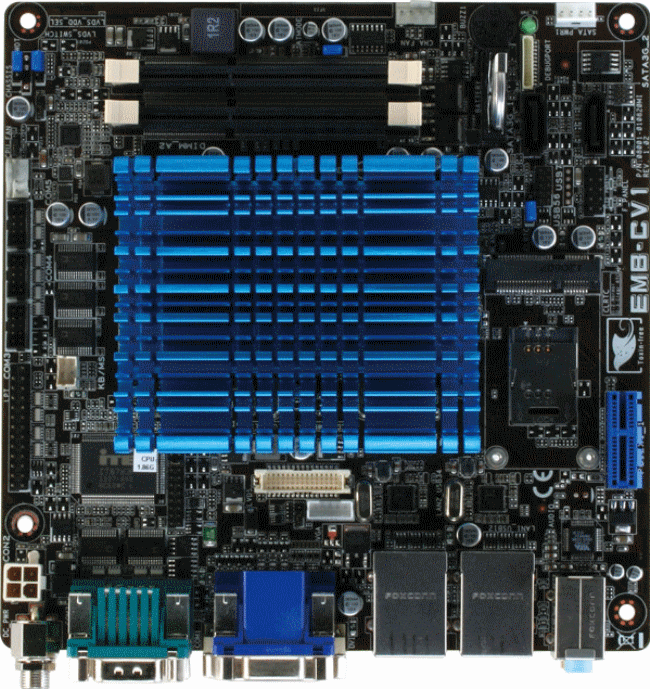

EMB-CV1
Mini-ITX Embedded Motherboard
With Onboard
Intel Atom D2550 Processor

    Features
  • Onboard Intel Atom D2550 Processor
  • Intel NM10
  • VGA, 18/24-bit LVDS, DVI, Dual Independent Display
  • Gigabit Ethernet x 2
  • COM x 5 (RS-232 x 4, RS-232/422/485 x 1)
  • PCI-Express [x1], Mini Card x 1 (Full Size), SIM Slot
  • DC 12V (Selectable AT/ATX Mode for Power On)
    Specifications

System

  • Form Factor: Mini-ITX
  • Processor: Integrated Intel Atom processor D2550 Dual Core 1.86GHz (TDP 10W)
  • System Memory: Dual-Channel with 204-pin SODIMM x 2, DDR3 1066, up to 4 GB
  • Chipset: Intel NM10
  • I/O Chipset: ITE IT8783F
  • Ethernet: Realtek 8111E, Gigabit Ethernet, RJ-45 x 2
  • BIOS: AMI BIOS, 32MB ROM
  • Wake On LAN: Yes
  • Watchdog Timer: Yes
  • TPM: No
  • H/W Status Monitoring:
    Temperature Monitor on CPU/Chassis
    Voltage Monitor on Vcore /5V/3.3V/12V
    Fan Monitor on CPU/Chassis
  • Expansion Interface: PCIe [x1] x 1, Full-size Mini Card (PCIex1 + USB) + SIM Card x 1
  • Battery: Lithium battery
  • Power Requirement: DC 12V, 4-pin ATX x 1
  • Power Consumption:
    Intel Atom Processor D2550, Transcend DDR3 1066 SODIMM, DC ; 1.21A@12V
  • Board Size: 6.7" x 6.7"(170mm x 170mm)
  • Gross Weight: 1.1 lb (0.5 Kg)
  • Operation Temperature: 32F ~ 140F (0C ~ 60C)
  • Storage Temperature: -40F ~ 185F (-40C ~ 85C)
  • Operation Humidity: 0%~90%RH, non-condensing
  • MTBF (Hours): 178,000

Display

  • Graphic: Intel Graphics Media Accelerator
  • Resolution:
    Up to 1920 x 1200@60Hz for VGA
    Up to 1440 x 900 @60Hz for LVDS
    Up to 1920 x 1200@60Hz for DVI
  • Output Interface:
    18/24-bit LVDS
    VGA x 1, DVI-D x 1

I/O

  • Storage:
    SATA 3Gb/s x 2 (IDE / AHCI)
    SATA power connector x 1
    m-SATA x 1 (if use mSATA, one of SATA wil be disable)
  • Serial Port: RS-232 x 4, RS-232/422/485 x 1 (RS-422/485 is selectable by jumper and BIOS)
  • Parallel Port: SPP/EPP/ECP
  • USB: USB 2.0 x 7, 3 ports for internal, 4 ports on back panel
  • Digital I/O: 8-bit programmable
  • PS/2 Port: PS/2 Port Keyboard/Mouse 6-pin connector x 1
  • Audio: Line-in, Mic-in, Line-out
  Ordering Information
  • EMB-CV1-A10-01
    Intel Atom D2550, SODIMM, Fanless, VGA/DVI-D/LVDS, SATA2 x 2, 18/24-bit Single-channel LVDS,
    GbE x 2, USB x 7, RS-232 x 4, RS-232/422/485 x 1, Full-size Mini Card with SIM Card x 1,
    PCI-E [x1] x 1, +12V/DC, 0C ~ 60C

Optional Accessories

  • 1757306007 -- Lockable Adapter
  • 1700060152 -- PS/2 Cable
  • 1701260305 -- LPT Cable
  • 1701100206 -- COM Port Cable
  • 1709100201 -- USB 2.0 Cable (10P, 220MM, p=2.00mm)
  • 170910020A -- USB 2.0 Cable (5P, 220MM, p=2.00mm)
  • 1709070800 -- SATA Cable

Packing List

  • SATA Cable x 2
  • SATA Power Cable
  • Metal I/O Bracket
  • Product CD
  • EMB-CV1
