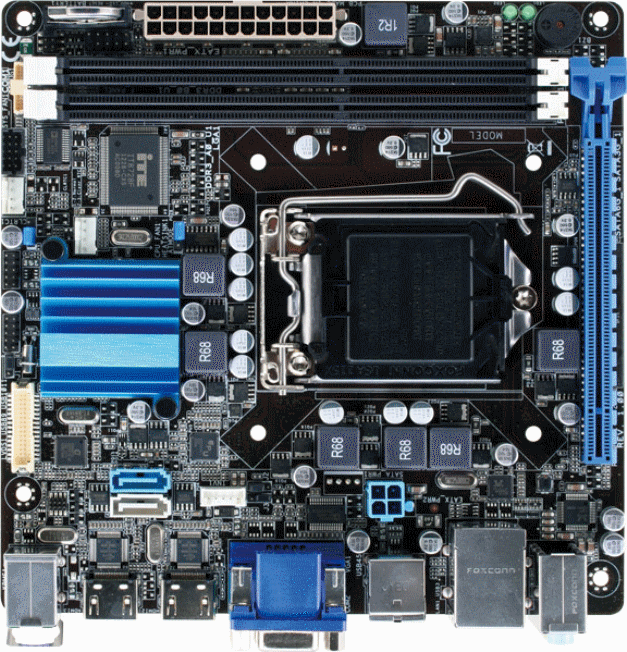

EMB-B75B
Mini-ITX Embedded Motherboard
with
Intel 2nd/3rd Generation
Core i7/ i5/ i3 Processor

    Features
  • Intel Socket 1155 for 2nd/3rd Generation Core Processor
  • Intel B75 Express Chipset
  • DDR3 1600/1333/1066 MHz DIMM x 2, Max. 16GB
  • VGA, HDMI x 2, LVDS Dual independent Display
  • Realtek RTL8111F, Gigabit Ethernet x 1
  • SATA 6.0 Gb/s x 1, USB3.0 x 2, PCIe 3.0/2.0 [x16] x 1
    Specifications

System

  • Form Factor: Mini-ITX
  • Processor: LGA1155 socket for Intel 2nd/3rd Generation Core i7/ i5/ i3/ Pentium / Celeron Processors
  • System Memory:
    DIMM x 2, max. 16GB, DDR3 1600/1333/1066 MHz, non-ECC, un-buffered memory
  • Chipset: Intel B75 Express Chipset
  • I/O Chipset: ITE 8728F
  • Ethernet: Realtek 8111F, Gigabit Ethernet, RJ-45 x 1
  • BIOS: 64Mbit Flash ROM, AMI BIOS
  • Wake On LAN: Yes (WOL / PXE)
  • Watchdog Timer: 1~255 steps by software program
  • H/W Status Monitoring:
    Temperature Monitor on CPU/Chassis, Voltage Monitor on Vcore/5V/3.3V/12V,
    Fan Monitor on CPU/Chassis
  • Expansion Interface: PCIe 3.0/2.0[x16] x 1
  • Battery: Lithium battery
  • Power Requirement: 24-pin ATX connector x 1, 4-pin ATX 12V Power connector x 1
  • Power Consumption (Typical): Intel Core i7-3770K, DDR3 1600/8GB, ATX, 73W
  • Board Size: 6.7" x 6.7"(170mm x 170mm)
  • Gross Weight: 1.1 lb (0.5 Kg)
  • Operation Temperature: 32°F ~140°F (0°C ~60°C)
  • Storage Temperature: -40°F ~185°F (-40°C ~85°C)
  • Operation Humidity: 0% ~ 90%RH, non-condensing
  • MTBF (Hours): 116,000

Display

  • Graphic Engine: Intel Graphics Media Accelerator
  • Resolution:
    Up to 1920 x 1200 @60Hz for VGA
    Up to 1920 x 1080 @60Hz for HDMI
    Up to 1920 x 1200 @60Hz,
    Dual-Channel 18/24-bit for LVDS, support EDID LVDS auto detection
  • Output Interface: VGA, HDMI x 2, LVDS

I/O

  • Storage: SATA 6.0 Gb/s x 1, SATA 3.0 Gb/s x 1
  • Serial Port: RS-232 on back panel x 1, RS-232 on mid-board x 1
  • Universal Serial Bus:
    USB 3.0 x 2 ( on back panel),
    USB 2.0 x 6 (4ports on mid-board, 2 ports on back panel)
  • Digital I/O: 8-bit Digital I/O interface (4-in /4-out)
  • PS/2 Port: PS/2 Port (Keyboard & Mouse) x 2
  • Audio: Line-in, Mic-in, Line-out, S/PDIF
  Ordering Information
  • EMB-B75B-A10
    Socket, DIMM, FAN, VGA, HDMI x 2, SATA3 x 1, SATA2 x 1, 18/24-bit LVDS, GbE x 2,
    USB 3.0 x 2, USB 2.0 x 6, RS-232 x 2, PCIe [x16] x 1, ATX, 0°C ~ 60°C

Optional Accessories

  • 1700190450 -- USB 3.0 Cable
  • 1709100201 -- USB 2.0 Cable
  • SATA 3.0 Cable
  • 1701100206 -- COM Cable
  • CPU Cooler
  • 1709070800 -- SATA Cable

Packing List

  • I/O Shield
  • SATA Power Cable
  • SATA Cable x 2
  • Product CD
  • EMB-B75B
