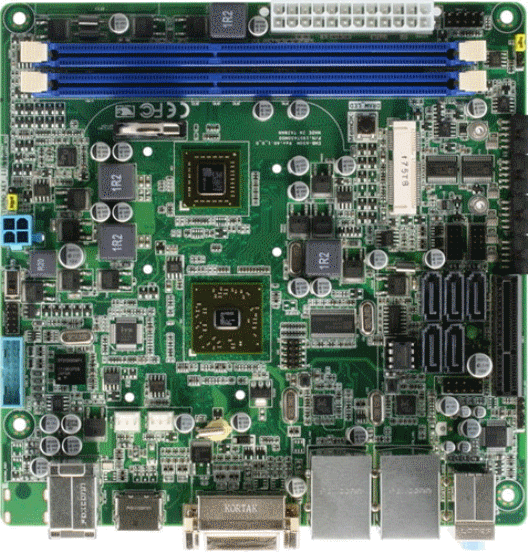

EMB-A50M
Mini-ITX Embedded Motherboard
With Onboard
AMD Fusion APU Processor

    Features
  • Onboard AMD CPU, Fusion APU T56N/ T44R Dual-Core/ Single Core Processor
  • AMD Hudson M1/ A50M
  • DDR3 800/1066 DIMM x 2, Unbuffered Memory, Max. 8 GB (Supports Up To DDR3 1333 For T56N APU)
  • Gigabit Ethernet x 2
  • Integrated AMD Radeon HD 6310 (6250 for T44R)
  • DVI-I, HDMI
  • HD 5.1CH Audio
  • SATA 6.0Gb/s x 5
  • USB3.0 x 2, USB2.0 x 10, COM x 4
  • PCI-Express 2.0 [x4] x 1, Mini PCIe (Half size) x 1, 8-bit Digital I/O
    Specifications

System

  • Form Factor: Mini-ITX
  • Processor: Onboard AMD T56N Dual Core 1.6GHz (Cooler) /T44R Single Core 1.2GHz (Fanless) Processor
  • System Memory: DIMM x 2, DDR3 800/1066 Non-ECC, Unbuffered Memory,
    Max. 8 GB (Supports Up To DDR3 1333 For T56N APU)
  • Chipset: AMD Hudson M1/ A50M
  • I/O Chipset: ITE IT8771E
  • Ethernet: Realtek 8111E for 10/1000/1000Base-TX, RJ-45 x 2
  • BIOS: AMI BIOS, 32 Mb Flash ROM, PnP, DMI 2.0, WfM 2.0, ACPI 2.0a, SM BIOS 2.6
  • Wake On LAN: Yes
  • Watchdog Timer: System reset : 1~255 steps programmable
  • H/W Status Monitoring:
    Supports system temperature, voltage, and cooling fan status monitoring
  • Expansion Interface: PCI-Express 2.0 [x4] x 1, Mini PCIe (Half size) x 1
  • Power Requirement: Standard 24-pin ATX connector x 1, 4-pin 12V ATX connector x 1
  • Power Consumption (Typical):
    AMD G-T56N 1.6GHz, DDR3 1333 4GB = 0.65@+5V; 1A@+12V, 0.1A@+3.3V
  • Board Size: 6.7"(L) x 6.7"(W)(170mm x 170mm)
  • Gross Weight: 1.1 lb (0.5 Kg)
  • Operation Temperature: 32 F ~ 140 F (0 C ~ 60 C)
  • Storage Temperature: -40 F ~ 176 F (-40 C ~ 80 C)
  • Operation Humidity: 0% ~ 90% relative humidity, non-condensing
  • MTBF: 70,000

Display

  • Chipset: Integrated AMD Radeon HD 6310 (6250 for T44R) graphics engine
  • Memory: Shared system memory up to 512MB
  • Resolutions: Up to 1920 x 1200 for HDMI/DVI output resolution
  • Video Interface: HDMI, DVI-I

I/O

  • Storage: SATA 6.0Gb/s x 5 support AHCI mode
  • Serial Port:
    RS-232 x 3
    RS-232/422/485 x 1
  • USB: USB3.0 x 2, USB2.0 x 10
  • Digital I/O: Supports 8-bit (Programmable)
  • PS/2 Port: Keyboard/Mouse x 1
  • Audio: Line-in, Mic-in, Line-out
  Ordering Information
  • TF-EMB-A50M-A10
    AMD T56N, DIMM, Fan, DVI-D/HDMI, SATA3 x 5, GbE x 2, USB x 10, RS-232 x 3,
    RS-232/422/485 x 1, Mini PCIe x 1, PCI-E[x4] x 1, ATX, 0C ~ 60C
  • TF-EMB-A50M-A10-01
    AMD T44R, DIMM, Fanless, DVI-D/HDMI, SATA3 x 5, GbE x 2, USB x 10, RS-232 x 3,
    RS-232/422/485 x 1, Mini PCIe x 1, PCI-E[x4] x 1, ATX, 0C ~ 60C

Packing List

  • 1709070800 -- SATA Cable
  • M20A50M000 -- I/O Shield
  • Product CD
  • EMB-A50M
