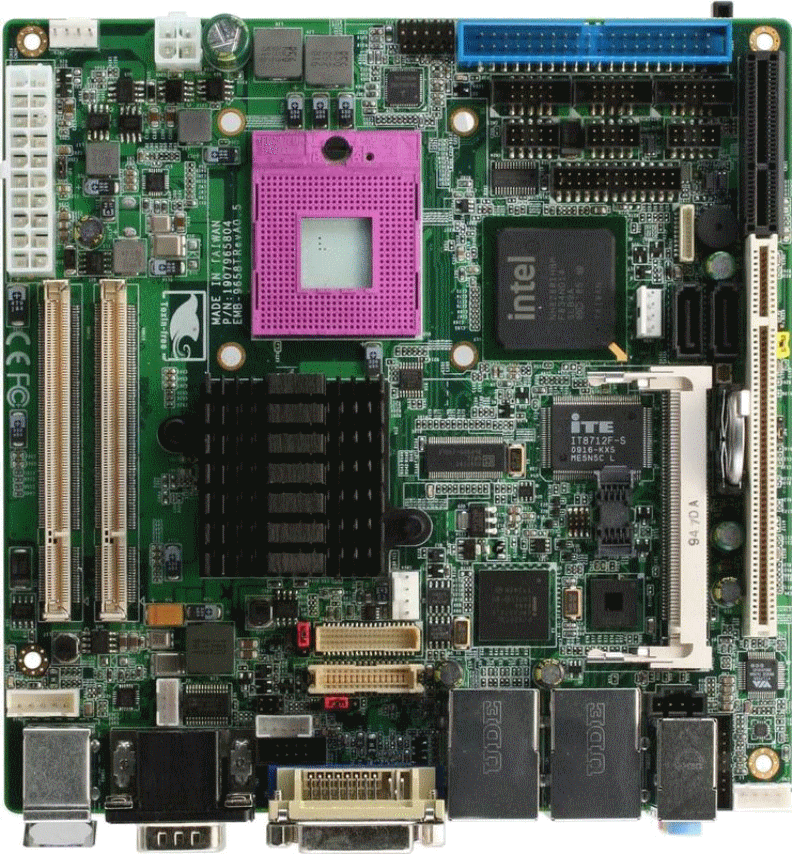

EMB-9658T
Mini-ITX Embedded Motherboard
with
Intel
Processors
Core 2 Duo /
Celeron M (Socket-P Based)

    Features
  • Intel Core 2 Duo/ Celeron M (Socket-P Based) Processor
  • Intel GME965 + ICH8M (-E Optional For RAID)
  • SODIMM DDR2 533/667 Memory, Max. 4 GB
  • Gigabit Ethernet x 2
  • 18/24-bit Dual-Channel LVDS, DVI/CRT, SDVO Connector For 2nd 18/24-bit Dual-Channel LVDS/DVI
  • HD 5.1CH Audio
  • SATA 3.0Gb/s x 2, EIDE x 1, CompactFlash?
  • USB2.0 x 8, COM x 5, Parallel x 1, 8-bit Digital I/O
  • PCI x 1, Mini PCI x 1 & PCI-Express [x4] x 1 (Through Riser Card)
  • DC12V/ ATX
  • SATA Power Connector Onboard x 1, Optional RAID 0 & 1, TPM, 6th RS-232
    Specifications

System

  • Form Factor: Mini-ITX
  • Processor: Intel Core 2 Duo/ Celeron M (Socket-P based) Processor
  • System Memory: 200-pin DDR2 SODIMM x 2, Max. 4 GB (DDR2 533/667)
  • Chipset: Intel GME965 + ICH8M (-E optional for RAID)
  • I/O Chipset: ITE8712
  • Ethernet: Intel 82566MM/82573L for 10/100/1000Base-TX, RJ-45 x 2
  • BIOS: Award Plug & Play SPI BIOS - 2 MB ROM
  • Wake on LAN: Yes
  • Watchdog Timer: ITE. IT8712F/KX-L
  • H/W Status Monitoring: Supports power supply voltages and temperature monitoring
  • Expansion Interface:
    PCI x 1, Mini PCI x 1 & PCI-Express [x4] slot x 1 (through Riser card)
  • Battery: Lithium battery
  • Power Requirement: DC 12V / ATX
  • Power Consumption (Typical):
    T7500 2.2 GHz, DDR2 800 2 GB = 3.81A @ 12V (DC 12V PW)
  • Board Size: 6.7" (L) x 6.7" (W) (170mm x 170mm)
  • Gross Weight: 1.1lb (0.5kg)
  • Operating Temperature: 32F ~ 140F (00C ~ 600C)
  • Storage Temperature: -40F ~ 176F (-400C ~ 800C)
  • Operating Humidity: 0% ~ 90% relative humidity, non-condensing
  • MTBF (Hours): 54,000

Display: Supports LCD/CRT, LCD/DVI, CRT/DVI, Dual Simultaneous/ Dual View Displays

  • Chipset: Intel GME965 integrated
  • Memory: Shared system memory up to 384 MB/DVMT 4.0
  • Resolutions:
    Up to 2048 x 1536 (QXGA) @ 60 Hz for CRT
    Up to 2048 x 1536 (QXGA) for LCD
  • LCD Interface: Up to 24-bit dual-channel LVDS
  • DVI: DVI-I x 1
  • SDVO: SDVO x 1

I/O

  • Storage:
    EIDE x 1 (shared signals with CompactFlash), SATA 3.0Gb/s x 2 , SATA Power x 1
  • Serial Port: RS-232 x 4, RS-232/422/485 x 1, TTL x 1
  • Parallel Port: SPP/ EPP/ ECP mode
  • USB: USB2.0 x 8
  • PS/2 Port: Keyboard x 1, Mouse x 1
  • Digital I/O: Support 8-bit (Programmable)
  • IrDA: One IrDA Tx/Rx header
  • Audio: HD 5.1 channel
  Ordering Information
  • TF-EMB-9658T-A10
    Socket, SODIMM, Fan, VGA/LVDS/DVI-I, SATA2 x 2, EIDE x 1, CF x 1, 2CH 18/24-bit LVDS,
    GbE x 2, USB x 8, RS-232 x 4, RS-232/422/485 x 1, Mini PCI x 1 + PCI-E[x4] x 1,
    ATX, 0C ~ 60C
  • TF-EMB-9658T-A10-01
    Socket, SODIMM, Fan, VGA/LVDS/DVI-I, SATA2 x 2, EIDE x 1, CF x 1, 2CH 18/24-bit LVDS,
    GbE x 2, USB x 8, RS-232 x 4, RS-232/422/485 x 1, Mini PCI x 1 + PCI-E[x4] x 1,
    +12V/DC, 0C ~ 60C
  • TF-EMB-9658T-A10-02 (Bulk)
    Socket, SODIMM, Fan, VGA/LVDS/DVI-I, SATA2 x 2, EIDE x 1, CF x 1, 2CH 18/24-bit LVDS,
    GbE x 2, USB x 8, RS-232 x 4, RS-232/422/485 x 1, Mini PCI x 1 + PCI-E[x4] x 1,
    ATX, 0C ~ 60C
  • TF-EMB-9658T-A10-03 (Bulk)
    Socket, SODIMM, Fan, VGA/LVDS/DVI-I, SATA2 x 2, EIDE x 1, CF x 1, 2CH 18/24-bit LVDS,
    GbE x 2, USB x 8, RS-232 x 4, RS-232/422/485 x 1, Mini PCI x 1 + PCI-E[x4] x 1,
    +12V/DC, 0C ~ 60C

Optional Accessories

  • 17592SPI30 -- Cooler, Silver, 60mm x 60mm x 23mm, Dataguard
  • M166666006 -- Metal, A1, Heat Sink, Silver, 60mm x 60mm x 25.4mm for Socket-478
  • 1701400453 -- IDE Cable, 40 p, 45cm, 2.54mm IDC
  • 1700140164 -- Audio 5.1 Channel/ SPDIF, 16cm
  • 1701260200 -- Printer Cable 20cm
  • 1701100206 -- COM Port Cable 20cm
  • 1709100201 -- USB Cable, 20cm, With Bracket
  • TF-PER-R16P-A10 -- Riser Card, PCI + PCI-E [x4]
  • TF-PER-V03B-A10 -- SDVO to DVI Module
  • TF-PER-V04B-A10 -- SDVO to LVDS Module
  • TF-PER-1110-A10 -- Riser Card for PCI, 2-slot
  • TF-PER-T158 -- 6th RS-232 Card For EMB-9458/9658

Packing List

  • 1709070500 -- SATA Cable
  • 1702151200 -- Onboard SATA Power Cable
  • M206908T00 -- Metal I/O Bracket
  • Product CD
  • EMB-9658T
