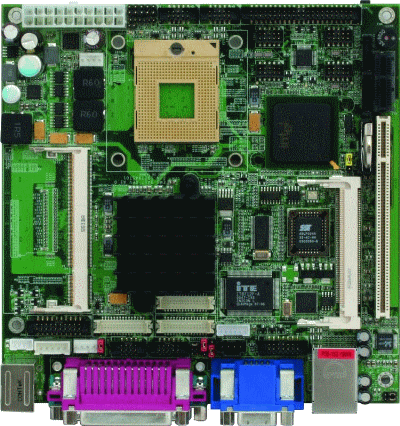

EMB-945T
Mini-ITX
Embedded Motherboard
with
Intel
Processors
Core 2 Duo /
Core Duo / Celeron M
|
|
|
Features
- Socket 478 or Onboard Intel® Core™ 2 Duo/ Core™ Duo/ Celeron® M Processors
- Intel® 945GME + ICH7M
- SODIMM Slot x 2 DDR II 400/533/667 Max. 4GB
- Gigabit Ethernet x 1 (Marvell® 88E8053)
- Up to 24-bit Dual-channel LVDS LCD
- AC97 5.1CH Audio
- Type II CompactFlash™ x 1, SATA II x 2, EIDE x 1
- COM x 6, Parallel x 1, USB2.0 x 6, 8-bit Digital I/O x 1
- PCI x 1, PCI-E [x1] x 1 and Mini PCI x 1
- ATX
|
Introduction
The
EMB-945T adopts the latest Intel Core Duo processors and Mobile Intel
945GM Express chipset for better power-management capabilities and
enhanced performance. EMB-945T with mobile-optimized Intel dual-core
processors is the latest embedded motherboard designed to cope with
increasingly heavily work-loaded embedded systems found in POS
(Point-of-Sale) machines, automated kiosks, medical instruments,
advanced automation for buildings and homes, and gaming machines. The
EMB-945T, based on Intel Core Duo processors, is AAEON's
next-generation platform featuring one PCI slot, one PCI-E slot, one
Mini PCI slot, six COM ports, six USB 2.0 ports, multiple Digital I/O
ports, and Type II CFD storage, providing versatile expansion options
for many embedded applications.
The EMB-945T not only keeps the advantages of AAEON's previous
embedded motherboard designs, such as the DDRII memory, PCI-Express,
and SATA, but also adds more functionality and improved performance.
The Front Side Bus is up to 667MHz and graphic performance has been
enhanced from 20 to 30%. In addition, the EMB-945T supports DX9L
appropriate to the DirectX and LVD/iDCT MPEG2 Hardware Decode.
|
Specifications
Form Factor: Mini-ITX
Processor: Supports Socket 478 or onboard Intel® Core™ 2 Duo/ Core™ Duo/ Celeron® M Processors up to 2.16GHz, FSB 533/667
System Memory: 200-pin DDR II SODIMM x 2, Max. 4GB (DDR II 400/533/667)
Chipset: Intel® 945GME + ICH7M
I/O Chipset: ITE 8712 + Fintek F81216D
Ethernet: Marvell® 88E8053, 10/100/1000Base-TX, RJ-45 x 1
BIOS: Award Plug & Play BIOS - 512KB ROM
Wake On LAN: Yes
Watchdog Timer: ITE 8712
H/W Status Monitoring: Supports power supply voltages, fan speed and temperature monitoring
Expansion Interface: Mini PCI x 1, PCI x 1, PCI-E [x1] x 1
Power Requirement: ATX (+3.3V, +5V, +12V)
Power Consumption (Typical): T7400 2.16GHz, DDRII 667 1GB 2.59A @ +12V, 2.88A @ +5V, 0.6A @ +3.3V
Board Size: 6.7"(L) x 6.7"(W) (170 mm x 170 mm)
Operating Temperature: 32ºF ~ 140ºF (0ºC ~ 60ºC)
Storage Temperature: -40ºF ~ 176ºF (-40ºC ~ 80ºC)
Operating Humidity: 0% ~ 90% relative humidity, non-condensing
MTBF (Hours): 70,000
I/O
Storage:
EIDE x 1 (UDMA 100 for one device), SATA II x 2, Type II CompactFlash™ x 1
Serial Port: RS-232 x 5, RS-232/422/485 x 1
Parallel Port: SPP/ EPP/ ECP mode
USB: USB2.0 x 6
PS/2 Port: Keyboard + Mouse x 1
Digital I/O: Supports 8-bit (Programmable)
IrDA: One IrDA Tx/Rx header
Audio: Mic-in, Line-in, Line-out, S/PDIF in/out
Display:
Supports
CRT/LCD, CRT/TV, CRT/DVI, LCD/DVI and LCD/TV
simultaneous / dual view displays
- Chipset: Intel® 945GM
- VGA/LCD Controller:
1. Intel® 945GM integrated Graphics, shared memory up to 224MB with DVMT;
LCD supports up to 24-bit dual-channel LVDS 2. Chrontel 7307 for DVI support 3. Chrontel 7308 for 24-bit dual-channel LVDS support
- DVI: DVI-D in pin-header
- TV-out: Supports NTSC and PAL standard
|
Ordering Information
- TF-EMB-945T-A10
Mini-ITX, Socket 478M, LCD-DVI-TV, DDRII, Gigabit Ethernet, Audio, 6 COM, USB2.0, CompactFlash™, Mini PCI, PCI-E, ATX, Rev. A1.0
- TF-EMB-945T-A10-02
Mini-ITX, Socket-478M,
LCD-DVI-TV, Gigabit Ethernet, Audio, 6 COM, 6 USB, CompactFlash™,
Mini-PCI, PCI-E, ATX, Rev.A1.0 (Basic Cables)
Optional Accessories
- TF-PER-R04P-A11 - Riser Card, PCI + PCI-E [x1] for EMB-945T Rev.A
- TF-PER-C10L-A10 - Mini PCI 10/100Base-TX Ethernet Module with Realtek 8100C
- TF-PER-C10L-A10-01 - Mini PCI Gigabit Ethernet Module with Realtek 8110S
- TF-PER-C10L-A10-02 - Mini PCI 10/100Base-TX Ethernet Module with Intel® 82551QM
- TF-PER-C10L-A10-03 - Mini PCI Gigabit Ethernet Module with Intel® 82541GI
- TF-PER-C20S-A10 - Mini PCI 2-port SATA Module Rev.A1.0
- TF-PER-C30F-A10 - Mini PCI 3-port IEEE 1394a Module
- TF-PER-V30C-A11 - Mini PCI Single Channel Capture Module with Philips SAA7135
- TF-PER-C40C-A10 - Mini PCI 2-port RS-232 Module Rev. A1.0
- TF-PER-C40C-A10-01 - Mini PCI 4-port RS-232 Module Rev. A1.0
- TF-PER-1110-A10 - Riser Card for PCI, 2-slot
- TF-PER-C102 - PCI-Express Dual Ethernet Board
- 1700200200 - DVI Cable
- M166666006 - Metal, A1, Heat sink, Silver, 60 x 60 x 25.4mm for socket 478
- 1759294520 - Cooler, Silver, 60 x 60 x 23, Dataguard
|
|
