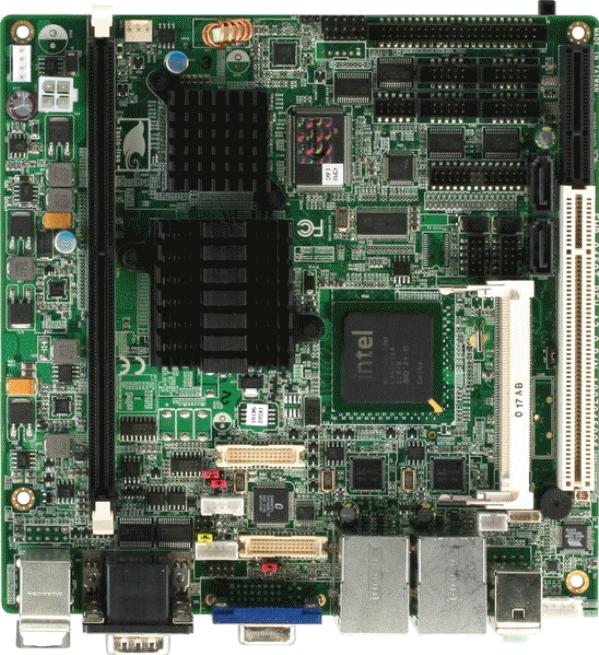

EMB-9459T Rev. A2.0
Mini-ITX Embedded Motherboard
With Onboard
Intel Atom N270 Processor

    Features
  • Onboard Intel Atom N270 Processor (Fanless)
  • Intel 945GSE + ICH7M
  • DIMM DDR2 400/533, Max. 2 GB
  • CRT, 18-bit Dual-channel LVDS + 24-bit Dual-channel LVDS
  • HD 5.1CH Audio S/P DIF, Stereo Amplifier
  • SATA 3.0Gb/s x 2, EIDE x 1 & CompactFlash? Type 2 x 1
  • USB2.0 x 8, COM x 6, Parallel x 1
  • PCI x 1, Mini PCI x 1, Mini Card x 1, PCI-Express [x1] (Through Riser Card)
  • +12V Only Operation
  • Onboard SATA Power Connector x 1
  • Optional TPM
    Specifications

System

  • Form Factor: Mini-ITX
  • Processor: Onboard Intel Atom N270 Processor 1.6 GHz, FSB 533 MHz
  • System Memory: 240-pin DDR2 DIMM x 1, Max. 2 GB (DDR2 400/533)
  • Chipset: Intel 945GSE + ICH7M
  • I/O Chipset: ITE8712
  • Ethernet: RTL8111C 10/100/1000Base-TX x 2 or RTL8102E 10/100Base-TX x 2
  • BIOS: Award 2MB ROM
  • Wake On LAN: Yes
  • Watchdog Timer: 255 Levels
  • H/W Status Monitoring:
    Supports power supply voltages and temperature monitoring
  • Expansion Interface:
    Mini PCI x 1, PCI-E [x1] slot x 2 in PCI-E [x4] socket (through Riser Card), Mini Card x 1
  • Battery: Lithium battery
  • Power Requirement: DC 12V
  • Power Consumption (Typical): Intel Atom N270 = 1.3A @+12V
  • Board Size: 6.7" (L) x 6.7" (W) (170mm x 170mm)
  • Gross Weight: 1.2 lb (0.5Kg)
  • Operating Temperature: 32F ~ 140F (0C ~ 60C)
  • Storage Temperature: -40F ~ 176F (-40C ~ 80C)
  • Operating Humidity: 0% ~ 90% relative humidity, non-condensing
  • MTBF (Hours): 66,000

Display: Supports CRT/LCD, CRT/DVI, LCD/DVI simultaneous/ dual view displays

  • Chipset: Intel 945GSE integrated
  • Memory: Shared system memory up to 224 MB / DVMT3.0
  • Resolutions:
    Up to 2048 x 1536 @ 32bpp colors for CRT
    Up to 1600 x 1200 @ 18bpp colors for LCD
  • LCD Interface: 18/24-bit Dual-channel LVDS
  • Video Interface: CRT

I/O

  • Storage: EIDE x 1 (UDMA-100 for one device), SATA 3.0Gb/s x 2, CompactFlash x 1
  • Serial Port: RS-232 x 5, RS-232/422/485 x 1
  • Parallel Port: SPP/ EPP/ ECP mode
  • USB: USB2.0 x 8
  • Digital I/O: Supports 8-bit (programmable)
  • IrDA: One IrDA Tx/Rx header
  • PS/2 Port: Keyboard x 1, Mouse x 1
  • Audio: MIC-in, Line-out, Stereo Amplifier (optional line-in)
  Ordering Information
  • TF-EMB-9459T-A20
    Intel Atom N270, DIMM, Fanless, VGA/LVDS/DVI-I, SATA2 x 2, EIDE x 1, CF x 1, 2CH 18b/24-bit
    LVDS, GbE x 2, USB x 8, RS-232 x 5, RS-232/422/485 x 1, PCI-E[x4] x 1, PCI-E[x1] x 1,
    Mini PCIe x 1, Mini PCI x 1, +12V/DC, 0C ~ 60C
  • TF-EMB-9459T-A20-01 (Bulk)
    Intel Atom N270, DIMM, Fanless, VGA/LVDS/DVI-I, SATA2 x 2, EIDE x 1, CF x 1, 2CH 18b/24-bit
    LVDS, GbE x 2, USB x 8, RS-232 x 5, RS-232/422/485 x 1, PCI-E[x4] x 1, PCI-E[x1] x 1,
    Mini PCIe x 1, Mini PCI x 1, +12V/DC, 0C ~ 60C

Optional Accessories

  • 1701440500 -- IDE Cable, 44 p, 2.54 mm, 30 + 20 cm, IDC
  • 1709100208 -- USB Cable
  • 1701260200 -- Printer Cable
  • 1701100206 -- COM Cable
  • 1709030150 -- SPDIF Cable
  • 1700060156 -- Audio Cable Support 5.1CH
  • TF-PER-R16P-A10 -- Riser Card, PCI + PCI-E [x4]
  • TF-PER-1110-A10 -- Riser Card for PCI, 2-sl

Packing List

  • 1709070500 -- SATA Cable
  • 1702151200 -- Onboard SATA Power Cable
  • 9657666600 -- Jumper Cap
  • M209459000 -- Metal I/O Bracket
  • Product CD
  • EMB-9459T Rev. A2.0
