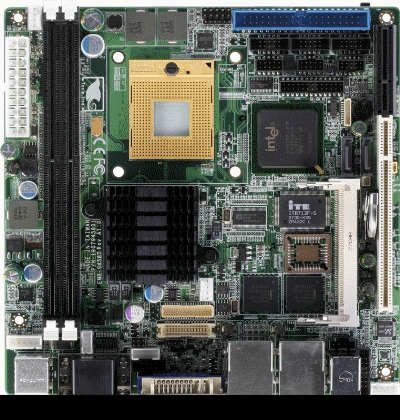

EMB-9458T
Mini-ITX Embedded Motherboard
with Intel Processors
 Core 2 Duo /
Core Duo / Celeron M

    Features
  • Intel® Core™ 2 Duo/ Core™ Duo/ Celeron® M Processors
  • Intel® 945GME + ICH7M (-DH Optional for RAID)
  • DDRII 400/533/667 DIMM Memory up to 4GB
  • Gigabit Ethernet x 2
  • 18-bit Dual-channel LVDS TFT LCD, CRT, DVI, TV-out, SDVO Connector x 1 for 2nd 24-bit Dual-channel LVDS/DVI
  • AC97 5.1CH Audio, Stereo Amplifier
  • Type II CompactFlash™ x 1, SATA II x 2 (Optional RAID 0 & RAID 1), EIDE x 1
  • COM x 5, USB x 8, 8-bit Digital I/O x 1
  • PCI x 1, Mini PCI x 1, PCI-E [x1] x 2 in PCI-E [x4] Slot (Through Riser Card)
  • AT, ATX
  • Optional TPM 1.2

    Introduction


The EMB-9458T adopts the latest Intel Core 2 Duo (Merom)/ Core Duo/ Core Solo/ Celeron M (Yonah) processors and Intel 945GM+ICH7M chipset for better power-management capabilities and enhanced performance.



The system memory of EMB-9458T features two 240-pin DIMM and DDRII 400/533/667 up to 4GB.  The LCD interface is 18-bit dual-channel LVDS TFT LCD and 2nd 24-bit dual-channel LVDS through optional SDVO card (TF-PER-V04B-A10).



The EMB-9458T features one PCI slot, two optional PCI-E〔x1〕 slot, one Mini PCI slot, four RS-232 ports, one RS-232 TTL only/GPS port, one RS-232/422/485 port, eight USB 2.0 ports, multiple Digital I/O ports, and Type II CFD storage, providing versatile expansion options for many embedded applications.



EMB-9458T with mobile-optimized Intel dual-core processors is the latest embedded motherboard designed to cope with increasingly heavily work-loaded embedded systems found in POS (Point-of-Sale) machines, automated kiosks, medical instruments, advanced automation for buildings and homes, and gaming machines.

    Specifications
    System

  • Form Factor: Mini-ITX
  • Processor:
    Intel® Core™ 2 Duo/ Core™ Duo/ Celeron® M Processors, FSB 533/667 MHz
  • System Memory: 240-pin DIMM x 2, DDRII 400/533/667 up to 4GB
  • Chipset: Intel® 945GME + ICH7M (-DH optional for RAID)
  • I/O Chipset: ICH7M (-DH optional for RAID) + IT8712F-KX
  • Ethernet: Intel® 82573L, 10/100/1000Base-TX, RJ-45x2
  • BIOS: Award Plug & Play BIOS - 1MB ROM
  • Wake On LAN: Yes
  • Watchdog Timer: Generates a time-out system reset
  • H/W Status Monitoring:
    Supports power supply voltages, fan speed and temperature monitoring
  • Expansion Interface: PCI x 1, Mini PCI x 1, PCI-E [x1] x 2 (optional)
  • Power Requirement:
    ATX (+3.3V, +5V, +5VSB, +12V) or AT (+5V, +12V)
  • Power Consumption (Typical):
    T7400 2.16GHz, DDRII 667 2GB
    2.24A @ +12V, 3.6A @ +5V
  • Board Size: 6.7" (L) x 6.7" (W) (170mm x 170mm)
  • Gross Weight: 1.2lb (0.5KG)
  • Operating Temperature: 32ºF ~ 140ºF (0ºC ~ 60ºC)
  • Storage Temperature: -40ºF ~ 176ºF (-40ºC ~ 80ºC)
  • Operating Humidity: 0% ~ 90% relative humidity, non-condensing
  • MTBF (Hours): 60,000

    I/O

  • Storage:
    EIDE x 1 (UDMA 100 for one device), SATA II x 2, Type II CompactFlash™ x 1
  • Serial Port: RS-232 x 4, TTL only x 1, RS-232/422/485 x 1
  • Parallel Port: SPP/ EPP/ ECP mode
  • USB: USB2.0 x 8
  • PS/2 Port: Keyboard x 1, Mouse x 1
  • Digital I/O: Supports 8-bit (Programmable)
  • IrDA: One IrDA Tx/Rx header
  • Audio: Mic-in, Line-in, Line-out, CD-in, Stereo Amplifier included

          Display: Supports CRT/LCD, CRT/TV, LCD/TV, CRT/DVI & LCD/DVI
                           simultaneous/ Dual view display

  • Chipset: Intel® 945GM
  • Memory: Shared system memory up to 224MB w/DVMT3.0
  • Resolutions:
    Up to 2048 x 1536 @ 32bpp for CRT
    Up to 1280 x 1024 @ 36-bit for LCD
  • LCD Interface: 18-bit dual-channel LVDS TFT LCD,
    2nd 24-bit dual-channel LVDS through SDVO Card (TF-PER-V04B-A10)
  • TV-out: Supports NTSC and PAL standard, S-Terminal and Composite Video
  • DVI: DVI-I x 1, 2nd DVI through SDVO Card (TF-PER-V03B-A10)
  • TPM: Yes
  Ordering Information
  • TF-EMB-9458T-A10
    Mini-ITX, Socket-478M, DDRII, 2 Gigabit Ethernet, Audio, 6COM, 8USB, CompactFlash™, Mini-PCI, PCI-E, ATX, Rev.A1.0

          Optional Accessories

  • TF-PER-R16P-A10 - Riser Card, PCI + PCI-E [x4]
  • TF-PER-C10L-A10 - Mini PCI 10/100Base-TX Ethernet Module with Realtek 8100C
  • TF-PER-C10L-A10-01 - Mini PCI Gigabit Ethernet Module with Realtek 8110S
  • TF-PER-C10L-A10-02 - Mini PCI 10/100Base-TX Ethernet Module with Intel® 82551QM
  • TF-PER-C10L-A10-03 - Mini PCI Gigabit Ethernet Module with Intel® 82541GI
  • TF-PER-C20S-A10 - Mini PCI 2-port SATA Module Rev.A1.0
  • TF-PER-C30F-A10 - Mini PCI 3-port IEEE 1394a Module
  • TF-PER-V03B-A10 - SDVO to DVI Module
  • TF-PER-V04B-A10 - SDVO to LVDS Module
  • TF-PER-V30C-A11 - Mini PCI Single Channel Capture Module with Philips SAA7135
  • TF-PER-C40C-A10 - Mini PCI 2-port RS-232 Module Rev. A1.0
  • TF-PER-C40C-A10-01 - Mini PCI 4-port RS-232 Module Rev. A1.0
  • TF-PER-1110-A10 - Riser Card for PCI, 2-slot
  • TF-PER-C102 - PCI-Express Dual Ethernet Board
  • 1700200200 - DVI Cable
  • M166666006 - Metal, A1, Heat sink, Silver, 60 x 60 x 25.4mm for socket 478
  • 1759294520 - Cooler, Silver, 60 x 60 x 23, Dataguard
  • TF-PER-K003 - Cable Kit for EMB-9458T
  • TF-PER-V03B - SDVO to DVI Module
  • TF-PER-V04B - SDVO to LVDS Module
