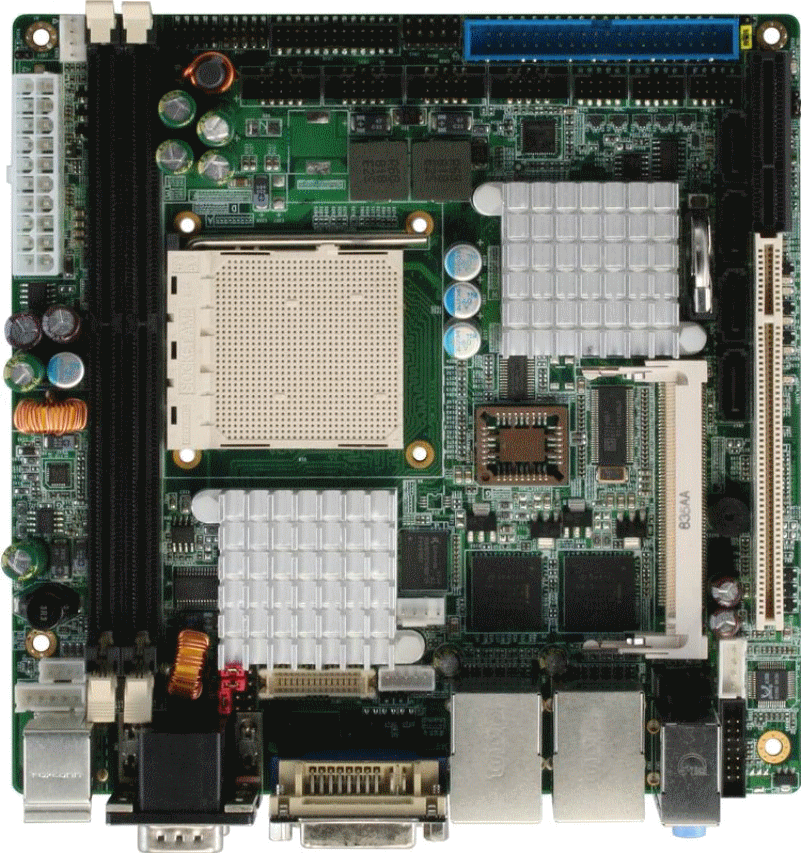

EMB-6908T
Mini-ITX Embedded Motherboard
With
AMD Athlon 64/ Athlon 64 x2
(AM2 Socket) Processor

    Features
  • AMD Athlon 64/ Athlon 64 x2 (AM2 Socket) Processor
  • AMD 690E + SB600
  • DIMM ECC DDR2 533/667/800 Memory, Up To 4 GB
  • Gigabit Ethernet x 2
  • CRT, Up To 24-bit Dual-channel LVDS LCD, DVI
  • HD 5.1CH Audio
  • EIDE x 1, SATA 3.0Gb/s x 4
  • COM x 6, USB2.0 x 10, 16-bit Digital I/O
  • PCI x 1, Mini PCI x 1, PCI-Express [x1] x 2 (Through Riser Card)
  • TPM 1.2 (Optional)
  • 128MB Side Port (Optional)
  • ATX Power
    Specifications

System

  • Form Factor: Mini-ITX
  • Processor: AMD Athlon 64/ Athlon 64 x2 (AM2 Socket) processor
    (Low-power version only: Athlon 2000+, 2600+, 3400e)
  • System Memory: 240-pin DDR2 DIMM x 2, Max. 4 GB (DDR2 533/667/800),
    supports ECC function
  • Chipset: AMD 690E + SB600
  • I/O Chipset: ITE IT8712F-A/IX-L
  • Ethernet: Intel 82573L, 10/100/1000Base-TX, RJ-45 x 2
  • BIOS: Award
  • Wake On LAN: Yes
  • Watchdog Timer: ITE IT8712F-A/IX-L
  • H/W Status Monitoring:
    Supports power supply voltages, fan speed and temperature monitoring
  • Expansion Interface: PCI-Express [x1] x 2 (Optional), PCI x 1, Mini PCI x 1
  • Power Requirement: ATX
  • Power Consumption (Typical):
    AMD 3400e 1.8 GHz Dual Core, 1 GB DDR2 800 = 2.92A@+12V, 2.25A@+5V
  • Board Size: 6.7" (L) x 6.7" (W) (170 mm x 170 mm)
  • Gross Weight: 1.32 lb (0.6 Kg)
  • Operating Temperature: 32F ~ 140F (0C ~ 60C)
  • Storage Temperature: -40F ~ 176F (-40C ~ 80C)
  • Operating Humidity: 0% ~ 90% relative humidity, non-condensing
  • MTBF (Hours): 54,000

Display: Supports LCD/CRT, LCD/DVI, CRT/DVI, Dual Simultaneous/ Dual View Displays

  • Chipset: AMD 690E integrated
  • Memory: Shared system memory up to 256 MB
  • Resolutions:
    Up to 2560 x 1440 @ 75Hz for CRT
    Up to 2048 x 1536 (QXGA) for LCD
    Up to 1600 x 1200 @ 60 Hz with pixel clock 162 MHz for Single Link DVI
    Up to 1920 x 1200 @ 60 Hz with pixel clock 154 MHz for Single Link DVI
    Up to 2560 x 1600 @ 60 Hz with pixel clock 268 MHz for Dual-Link DVI
  • LCD Interface: Up to 24-bit dual-channel LVDS
  • Side Port: 16-bit memory interface x 1, supports up to 128 MB DDR2 800 memory
  • DVI: DVI-I x 1

I/O

  • Storage: EIDE x 1 (one device), SATA 3.0Gb/s x 4
  • Serial Port: RS-232 x 5, RS-232/422/485 x 1
  • Parallel Port: SPP/ EPP/ ECP mode
  • USB: USB2.0 x 10
  • PS/2 Port: Keyboard x 1, Mouse x 1
  • Digital I/O: Supports 16-bit (Programmable)
  • IrDA: One IrDA Tx/Rx header
  • Audio: 5.1CH audio
  Ordering Information
  • TF-EMB-6908T-A13
    Socket, DIMM, Fan, VGA/LVDS/DVI-I, SATA2 x 4, EIDE x 1, 24-bit Dual-channel LVDS, GbE x 2,
    USB x 10, RS-232 x 6, PCI-E [x1] x 1, Mini PCI x 1, PCI x 1, ATX, 0C ~ 60C
  • TF-EMB-6908T-A13-01
    Socket, DIMM, Fan, VGA/LVDS/DVI-I, SATA2 x 4, EIDE x 1, 24-bit Dual-channel LVDS, GbE x 2,
    USB x 10, RS-232 x 6, PCI-E [x1] x 1, Mini PCI x 1, PCI x 1, ATX, 0C ~ 60C
  • TF-EMB-6908T-A13-02 (Bulk)
    Socket, DIMM, Fan, VGA/LVDS/DVI-I, SATA2 x 4, EIDE x 1, 24-bit Dual-channel LVDS, GbE x 2,
    USB x 10, RS-232 x 6, PCI-E [x1] x 1, Mini PCI x 1, PCI x 1, ATX, 0C ~ 60C
  • TF-EMB-6908T-A13-03 (Bulk)
    Socket, DIMM, Fan, VGA/LVDS/DVI-I, SATA2 x 4, EIDE x 1, 24-bit Dual-channel LVDS, GbE x 2,
    USB x 10, RS-232 x 6, PCI-E [x1] x 1, Mini PCI x 1, PCI x 1, ATX, 0C ~ 60C

Note
TF-EMB-6908T-A13 is without VGA memory and A13-01 is with VGA memory;
A13-02 is bulk pack without VGA memory and A13-03 is bulk pack with memory

Optional Accessories

  • TF-PER-R16P-A10 -- Riser Card, PCI + PCI-E [x4]
  • TF-PER-C10L-A10 -- Mini PCI 10/100Base-TX Ethernet Module with Realtek 8100C
  • TF-PER-C10L-A10-01 -- Mini PCI Gigabit Ethernet Module with Realtek 8110S
  • TF-PER-C10L-A10-02 -- Mini PCI 10/100Base-TX Ethernet Module with IntelR 82551QM
  • TF-PER-C10L-A10-03 -- Mini PCI Gigabit Ethernet Module with IntelR 82541GI
  • TF-PER-C20S-A10 -- Mini PCI 2-port SATA Module Rev. A1.0
  • TF-PER-C30F-A10 -- Mini PCI 3-port IEEE 1394a Module
  • TF-PER-C40C-A10 -- Mini PCI 2-port RS-232 Module Rev. A1.0
  • TF-PER-C40C-A10-01 -- Mini PCI 4-port RS-232 Module Rev. A1.0
  • TF-PER-1110-A10 -- Riser Card for PCI, 2-slot
  • TF-PER-C102 -- PCI-Express Dual Ethernet Board
  • TF-PER-K000 -- Cable Kit for EMB-6908T
  • 1759269080 -- CPU Cooler, 60 x 60 x 25.4 mm

Packing List

  • 9657666600 -- Jumper Cap
  • 1701400453 -- IDE Cable x 1
  • 1709070500 -- SATA Cable x 1
  • 1702150150 -- SATA Power Cable x 1
  • M206908T00 -- Metal I/O Bracket
  • Product DVD
  • EMB-6908T
