ARC-6102

Click para maiores detalhes

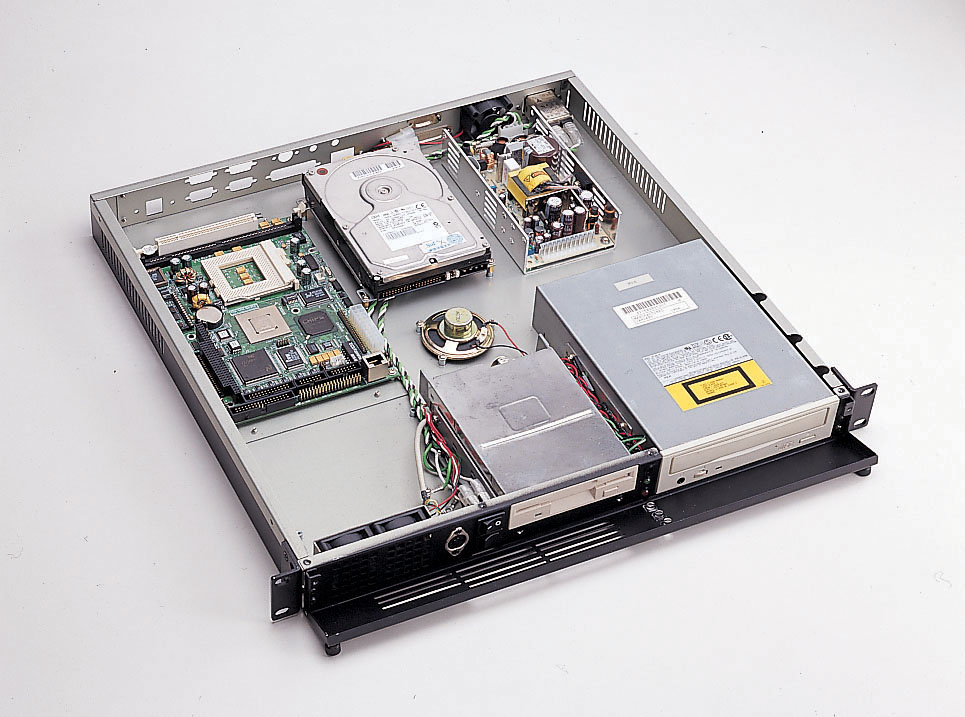

1U Industrial Rackmount Chassis

    Features

  • Supports Full/Half-size CPU Cards and Compact Boards
  • Supports 2-slot ISA/PICMG backplanes
  • Disk drive bay holds one 5.25" and one 3.5" disk drive in front
  • Dual easy-to-replace ball bearing cooling fans in front, and one in rear for optimum system cooling (3x4cm, 7.0 CFM /Each)
  • Space-saving rackmount chassis designed for communication and industrial applications
  • Special modular design allows users to maintain the system with minimum downtime
    Specifications
  • Construction
    Heavy-duty steel chassis

  • Disk drive capacity
    Support one 5.25" and one 3.5" disk drives in front

  • Cooling fan
    Three 3 x 4, 7.0 CFM / Each (flow-in) cooling fans inside, two fans in front and one in the real side

  • Keyboard connector
    One Pre-Wired 5-pin DIN connector on the front panel

  • Controls
    Momentary power switch and reset switch on the front panel

  • Status industors
    Single-color LEDs (Green) for Power On, +3.3 V DC status and (Red)HDD activity

  • Speaker
    One 8 Ohm speaker

  • Color
    Beige or Black

  • Dimensions(WxHxD)
    19"(483mm) x 1.75"(44.5mm) x 17.32"(440mm)

  • Net wight (Bare)
    9kg (19.8 lbs)

  • Carton size (LxWxH)
    606cm x 590mm x 155mm

  • Operating temperature
    (32 ~ 113°F) 0 ~ 45°C

  • Storage temperature
    (32 ~ 167°F) 0 ~ 75°C

  • Operating humidity
    5 ~ 95% @ 40°C, non-condensing

  • Storage humidity
    5 ~ 95%
    Ordering Information
  • ARC-6102B-G
    1U 2-slot Industrial Rackmount Bare Chassis. Black Color

    Power Supply Options

  • 1757215002
    150 Watt
    ATX
    180mm x 100mm x 40.5mm
    115/230V(Input)
    5/12/-5/-12/3.3/5Vsb(Output)

  • 1757215001
    150 Watt
    AT
    180mm x 100mm x 40.5mm
    115/230V AC (Input)
    5/12/-5/-12 (Output)
  • 1757908000
    80 Watt
    AT
    152.5mm x 84mm x 32mm
    85~264V(Input)
    5/12/-5/-12 (Output)
