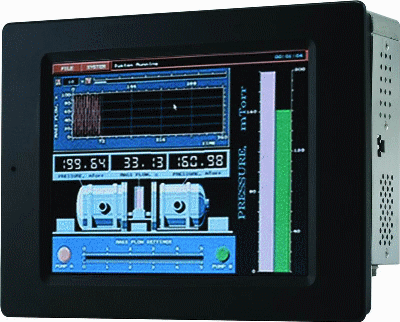

The AOP-8080XT operator panel is an Intel 600MHz/ 1.3GHz processor computer that is designed to serve as a human machine interface (HMI). It is a PC-based system with 8.4" color TFT LCD display, on-board Ethernet controller, multi-COM port interfaces and an audio controller. With a built-in CompactFlash socket, the AOP-8080XT is as compact and user friendly as a multi-function computer. In addition, its "fit anywhere" design makes it very flexible and able to be used in many different kinds of installations. It can be wall mounted, panel mounted or DIN Rail mounted.

For system integrators, this simple, complete, compact and highly integrated system let you easily build an operator panel into your applications. Common industrial applications include factory automation systems, precision machinery, and production process control. It is also suitable for many non-industrial applications, including vending machine, and car park automation. Our operator panel is a reliable, cost-effective solution to your application's processing requirements.


    Specifications

System


• Processor: Intel® Celeron® M 1.3G/ 600MHz
• System Memory: Onboard 256/ 512MB
• Storage Memory: 1G CompactFlash™ / Hard Disk Drive bay
• LCD/CRT Controller: Intel® 852GM
• Ethernet: Intel® 82562, 10/100Base-TX, RJ-45 x 1
• I/O Port:
  RS-232 (DB-9) x 2
  USB2.0 x 3
  VGA x 1
  Audio Line out x 1
  PS/2 (keyboard + mouse Mini-Din port) x 1
  Solid Storage Disk
  Type II CompactFlash™ (open slot)
• Expansion Slot: CompactFlash™, Mini-PCI
• OS Support: Windows® XP Embedded, XP Pro

          Mechanical

• Construction: Plastic panel (IP65 certified), metal backcover
• Color:
  Front Bezel: Black
  Back Cover: Silver
• Mounting: VESA 75
• Dimension: 9.65" x 7.2" x 2.4" (245mm x 183mm x 61mm)
• Carton Dimension: 11.5" x 7.68" x 9.65" (292mm x 195mm x 245mm)
• Gross Weight: 5.5 lb (2.5 kg)
• Net Weight: 4.4 lb (2 kg)

          Environmental

• Operating Temperature:
  32^oF ~ 122^oF (0^oC ~ 50^oC) - TF-AOP-8080XT-A1/P1
  32^oF ~ 104^oF (0^oC ~ 40^oC) - TF-AOP-8080XT-A2/P2
• Storage Temperature: -4^oF ~ 140^oF (-20^oC ~ 60^oC)
• Storage Humidity: 10 ~90% @ 40^oC, non-condensing
• Vibration: Random Operation 1G, 5~500Hz
• Shock: 15G peak acceleration (11m sec. duration) / operation
• EMC: CE/FCC Class A
