PCI Express Frame Grabber

Features

  • Capture full frame rate video on all four channel simultaneously
  • Color or monochrome: PAL, SECAM, NTSC, RS-170, CCIR compatible
  • 4 composite video inputs or 4 S-video inputs
  • Four input and four output TTL I/O lines for camera control
  • Programmable AGC, hue, contrast, saturation
  • Capture Raw RGB or YUV video
Click for larger photo

Larger Photo

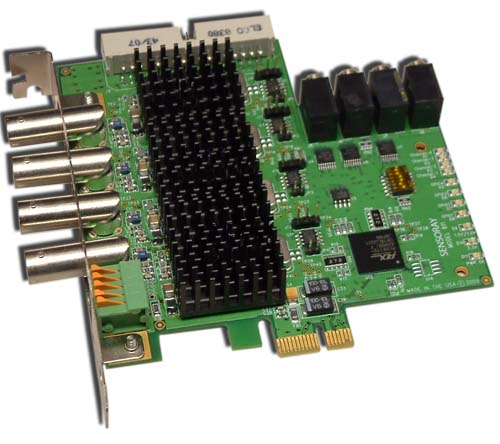

Model 811 is a PCI-Express 4-channel frame/video capture device designed for applications requiring a high capture rate from multiple input video channels.

It supports capturing from NTSC, PAL, SECAM, RS-170, and CCIR video sources.



The Model 811 provides four channels of stereo or mono audio capture associated with the four channels of video respectively.

For each video channel, the frame capture rate is up to 30 fps for NTSC and 25 fps for PAL.

The total frame/video capturing rate up to 120 fps for NTSC and 100 fps for PAL.



The 811 supports the following capture resolutions: D1.N (NTSC), D1.P (PAL), VGA, QVGA, QQVGA, SIF, 2SIF, 4SIF, CIF, QCIF, SQCIF, 4CIF.



Associated with each channel, general digital I/O signals are also provided for control or trigger purposes.



A single +5V power supply through the PCI express bus is required to power the board.



Model 811 implements a single-lane (x1) PCI Express interface. It can be plugged into a PCI Express slot of any width.

Software and Manuals
The 811 is supplied with a software developer’s kit, SDK811. It includes drivers for Windows XP/Vista. A Linux driver for kernel 2.6 is also supplied. Each kit includes sample application programs.

Specifications

Video formats

 NTSC, PAL, SECAM

Video inputs

 4 input channels, simultaneously: 4 Composite video via 4 NBC connectors, 75 Ohms; or 4 S-Video via a 34-pin breakout connector, 75 Ohms; or combinations up to 4 channels , 75 Ohms

Audio inputs

 4 input channels: associated with 4 separated video channels Stereo or mono for each channel, via four 3.5mm TRS StereoJacsk; Or, break-in stereo/mono signal from a 34-pin connector Signal level: Line-in level, +/- 1.0V

Capture Modes

 Raw: RGB or YUV

Capture rate

 Up to: 120 (30x4) frames/sec for NTSC/RS-170/CCIR
100 (25x4) frames/sec for PAL/SECAM

Video Encoding

Could be done by software: i.e. MPEG1, MPEG2 (MP@ML), MPEG4 (SP), or MJPEG
Resolution Up to Full-D1: NTSC: 720x480 PAL: 720x576
Supported: D1.N: 720x480 D1.P: 720x576 D.5: 480x352 SIF: 352x240
2SIF: 704x240 4SIF: 704x480 VGA: 640x480 QVGA: 320x240
QQVGA: 160x112 CIF: 352x288 QCIF: 176x144 SQCIF: 128x96
4CIF: 704x576
Digital I/O 4 inputs + 4 outputs: TTL signals 4 configurable inputs/outputs, via I/O terminals; all 4 inputs + all 4 outputs on breakout 34-pin connector
Bus PCI-Express x1: Compliant of PCI-Express Base Specification (Revision 1.0/1.1) PCI-to-PCI Bridge Specification (Revision1.2)
OS Platform Windows and Linux
Power 5W, +5V @ 1A
Temperature 0 – 70 C
Board Size 4.2” x 4.2” (107mm x 107mm)



Number of cameras

per channel frames/sec

NTSC PAL
1 30 25
2 30 25
3 30 25
4 30 25


Ordering Informations

Model 811

PCI Express Frame Grabber
