MPEG Video Capture and Overlay

Features

  • Real time MPEG-4/2/1 and MJPEG plus audio
  • Advanced video overlay for annotation or caption
  • Uncompressed preview and capture through PCI
  • Built-in motion detection
  • Linux and Windows drivers supplied with SDK
  • Fast Windows stream player available
Click para ampliar imagem

Larger Photo

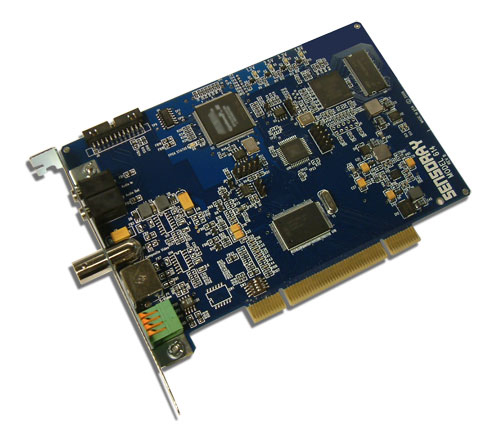

Model 614 is a low-cost  MPEG-4/2/1 and MJPEG frame grabber that captures full-frame (720 x 480) video at 30 frames per second. Uncompressed video is available through the PCI bus for previewing and capturing. It also has two synchronized audio input channels and an advanced image overlay feature that is fully implemented with hardware.

Video Overlay
Captured compressed video can be imposed with up to eight windows of caption or annotation overlay. Text and image overlay are supported. Up to 64 characters or bitmap blocks can be inserted into each of the eight windows. See an example overlay frame here.


Uncompressed capture
The 614 can function as a conventional frame grabber by supplying uncompressed video with low latency and snapshots of single frames.

Motion detection

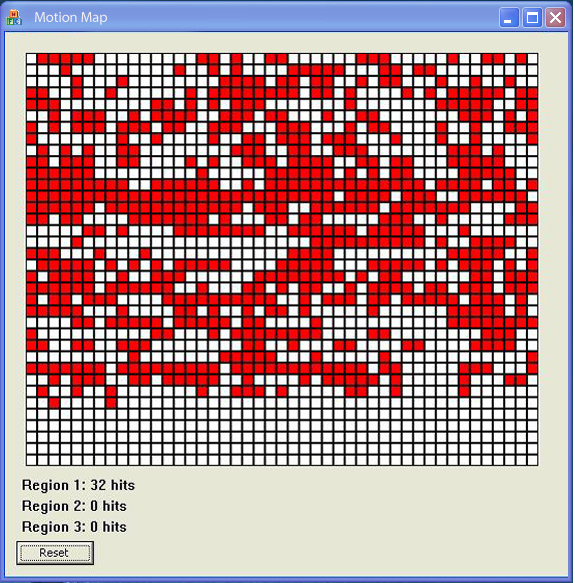

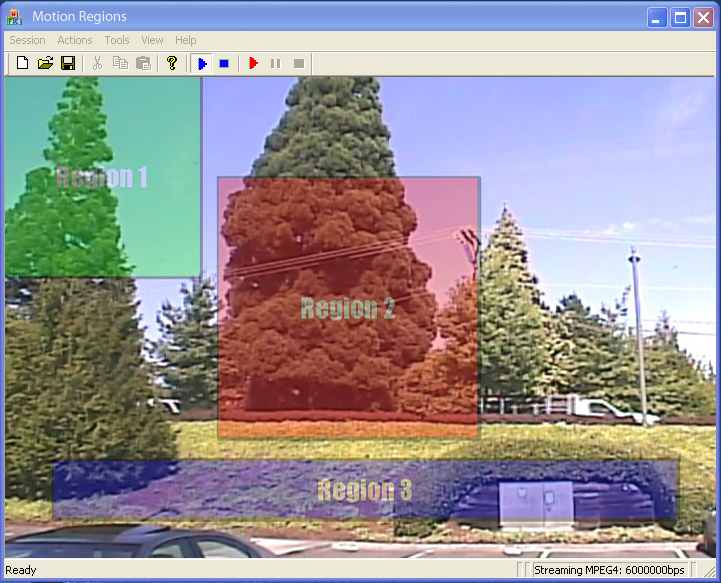

The 614 performs motion detection in three user programmable regions of interest. For each separate region of interest, the user can set up different motion detection sensitivity. Within the regions of interest motion can be further localized to a 16x16 pixel block. The following links show examples of the motion detection setup menu for Windows and the regions of interest. The motion map shows where the motion was detected. (Please see image under the tab: Images and Mechanical Drawings).

Audio multiplexing
Digitized audio from the 614 is multiplexed into MPEG streams by a Sensoray-supplied software in the SDK. Hence, the 614 does perform A/V multiplexing as do the models 314 and 616. The audio signal can be connected to the 614 via a stereo audio jack or through the 24pin header.

Advantages of compression
MPEG and MJPEG data reduces the amount of memory required to store full motion video. The compressed data requires a smaller transmission bandwidth. MJPEG data is typically compressed by a factor 20 while MPEG-2 and -4 by a factor of 100. Image compression makes it possible to transmit 30 frames/sec of MPEG video over the PCI bus. The hardware compression circuit uses a motion estimation algorithm to produce smooth images from interlaced cameras.

Software and Manuals
The 614 is supplied with a software developerís kit, SDK-614. It includes drivers for Windows XP/Vista. A Linux driver for kernel 2.6 is also supplied. Each kit includes sample application programs.

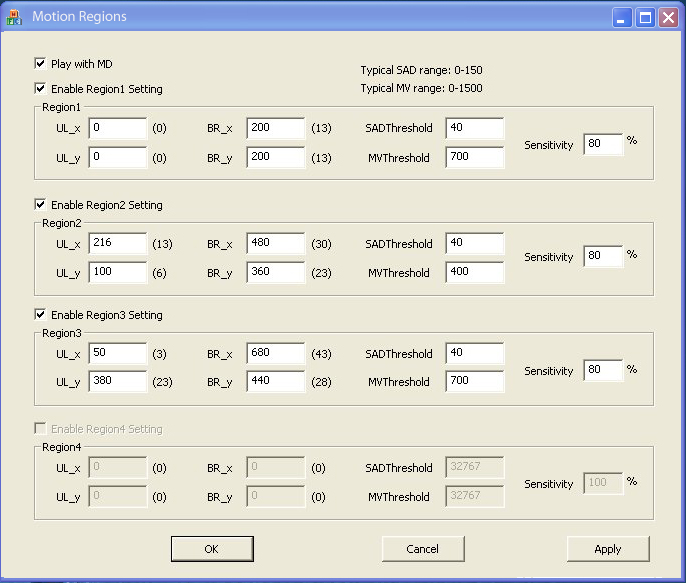

Motion Regions set up window

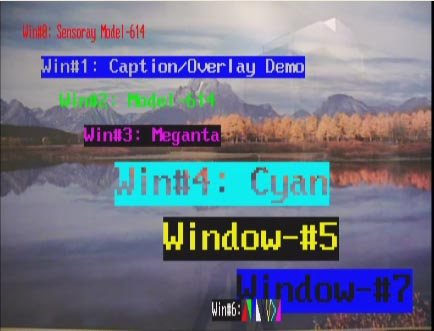

Example of video overlay capabilities

Specifications

Function Description
Video Input 4 multiplexed input channels |  2 S-Video or 4 Composite
Resolution (Max) Full-D1  | NTSC 720x480 @ 30 fps  | PAL    720x576 @ 25 fps
Supported Resolution D1.N, D1.P, D.5, SIF, 2SIF, 4SIF, CIF, QCIF, SQCIF, 4CIF, VGA, QVGA, QQVGA
Ordering Informations

Model 614

PCI Frame Grabber
